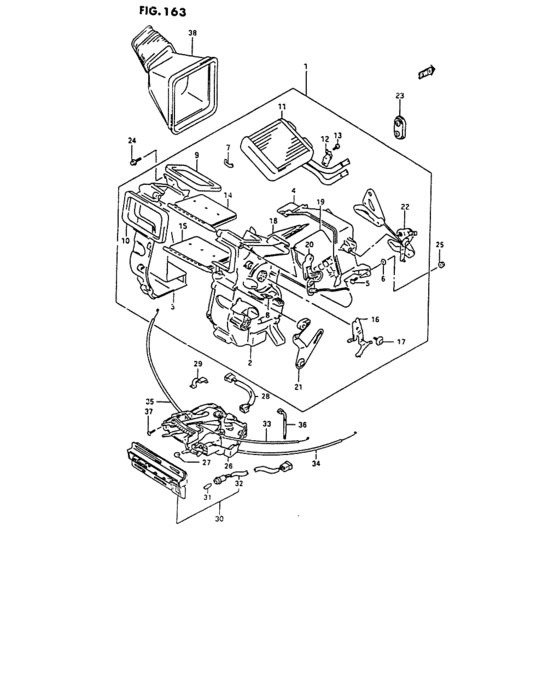

Heater - my97 (RHD - MY97) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-65A20-000
Heater assy
MY97 |
74100-65A20-000 |
— | ||
|
2
|
2
74111-65A20-000
Case, heater
MY97 |
74111-65A20-000 |
— | ||
|
3
|
3
74112-64A20-000
CASE,HEATER
MY97 |
74112-64A20-000 |
— | ||
|
4
|
4
74113-60A00-000
CASE,HEATER
MY97 |
74113-60A00-000 |
— | ||
|
5
|
5
74115-64A00-000 BoltMY97 |
74115-64A00-000 |
US $2.72 |
||
|
6
|
6
74116-60A00-000 PACKINMY97 |
74116-60A00-000 |
US $1.44 |
||
|
7
|
7
74133-82000-000 CLAMP,CASEMY97 |
74133-82000-000 |
US $2.91 |
||
|
8
|
8
74151-70D01-000 CLAMP,CONTROL WIREMY97 |
74151-70D01-000 |
US $4.12 |
||
|
9
|
9
74262-60A00-000
パッキン
MY97 |
74262-60A00-000 |
— | ||
| replacement | |||||
|
9
|
9
74163-84101-000 PACKINGMY97 |
74163-84101-000 |
from US $7.90 |
||
|
10
|
10
74262-60A00-000
パッキン
MY97 |
74262-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
74163-84101-000 PACKINGMY97 |
74163-84101-000 |
from US $7.90 |
||
|
11
|
11
74120-64A00-000
CORE,HTR
MY97 |
74120-64A00-000 |
— | ||
|
12
|
12
74199-60A00-000
CLAMP
MY97 |
74199-60A00-000 |
— | ||
|
13
|
13
03111-05123-000
Screw
MY97 |
03111-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0512A-000 SCREWMY97 |
03111-0512A-000 |
from US $0.80 |
||
|
14
|
14
74171-60A00-000
DAMPER
MY97 |
74171-60A00-000 |
— | ||
|
15
|
15
74172-64A00-000
DAMPER
MY97 |
74172-64A00-000 |
— | ||
|
16
|
16
74176-64A01-000
LINK,CONTROL
MY97 |
74176-64A01-000 |
— | ||
|
17
|
17
74183-82005-000 SCREW,LINKMY97 |
74183-82005-000 |
US $1.73 |
||
|
18
|
18
74173-60A10-000
DAMPER
MY97 |
74173-60A10-000 |
— | ||
|
19
|
19
74174-60A00-000
DAMPER
MY97 |
74174-60A00-000 |
— | ||
|
20
|
20
74170-64A00-000
LEVER ASSY,VENT
MY97 |
74170-64A00-000 |
— | ||
|
21
|
21
74180-64A00-000
LEVER ASSY,HEAT
MY97 |
74180-64A00-000 |
— | ||
|
22
|
22
74190-64A00-000
Lever assy,temp
MY97 |
74190-64A00-000 |
— | ||
|
23
|
23
74812-82030-000 GROMMET,HTRMY97 |
74812-82030-000 |
US $13.60 |
||
|
24
|
24
01550-06123-000
Bolt
MY97 |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp MY97 |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BOLTMY97 |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
08310-10083-000
Nut starting motor
MY97 |
08310-10083-000 |
— | ||
|
26
|
26
74400-64A12-000 LEVER ASSY,HTR CONTMY97 |
74400-64A12-000 |
US $552.64 |
||
|
27
|
27
74431-64A10-5PK KNOB,CONTROL LEVERMY97 |
74431-64A10-5PK |
US $4.48 |
||
|
28
|
28
74436-77E00-000 HARNESS,FAN SWMY97 |
74436-77E00-000 |
US $19.87 |
||
|
29
|
29
74441-70B00-000 HOLDER,HEATER CABLEMY97 |
74441-70B00-000 |
US $2.80 |
||
|
30
|
30
74450-64A00-5PK PANEL,HEATER CONTROLMY97 |
74450-64A00-5PK |
US $110.21 |
||
|
31
|
31
73856-82000-000 BULB,HEATER CONTROLMY97 |
73856-82000-000 |
US $10.24 |
||
|
32
|
32
74456-64A00-000 HARNESS,HTR CONTROLMY97 |
74456-64A00-000 |
US $18.24 |
||
|
33
|
33
74511-77E00-000
CABLE,MODE CONTROL
MY97:NATURAL |
74511-77E00-000 |
— | ||
|
34
|
34
74512-77E00-000 CABLE,HOT-COOLMY97:BLUE |
74512-77E00-000 |
US $4.45 |
||
|
35
|
35
74513-85C40-000
Cable, fresh air control
MY97:BLUE (L:880) |
74513-85C40-000 |
— | ||
|
36
|
36
36990-85C10-000
Clamp, wiper harness
MY97 |
36990-85C10-000 |
— | ||
|
37
|
37
03511-05165-000
Screw
MY97 |
03511-05165-000 |
— | ||
| replacement | |||||
|
37
|
37
03511-0516A-000 SCREWMY97 |
03511-0516A-000 |
from US $0.76 |
||
|
38
|
38
74620-60A00-000
DUCT,HEATER
MY97:N/AIR CON |
74620-60A00-000 |
— | ||
