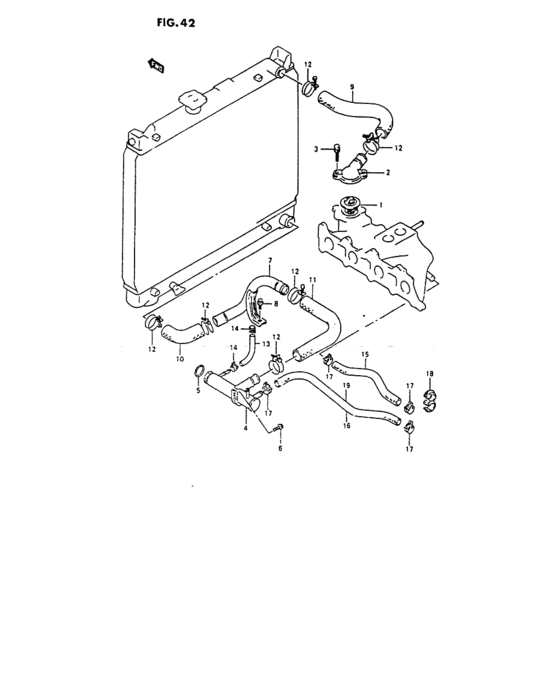

Water hose (2 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-85C00-000
Thermostat, water
,1 |
17670-85C00-000 |
— | ||
|
1
|
1
17600-60823-000
サーモスタット,ウォータ,88゜C
MY97:Germany |
17600-60823-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60824-000
THERMOSTAT,WATER 88 DEG
MY97:Germany |
17600-60824-000 |
— | ||
|
1
|
1
17670-85C10-000
Thermostat assy, water
MY98:Germany |
17670-85C10-000 |
— | ||
|
2
|
2
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
from US $11.10 |
||
|
3
|
3
09103-08341-000 BOLT(8X30) |
09103-08341-000 |
from US $3.24 |
||
|
4
|
4
17550-60X50-000 PIPE,WATER INLET |
17550-60X50-000 |
US $154.40 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
6
|
6
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
17860-60A10-000 PIPE,RDTR OUTLET |
17860-60A10-000 |
from US $35.69 |
||
|
8
|
8
01517-08123-000
ボルト
|
01517-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
17841-85C00-000
Hose, radiator inlet
|
17841-85C00-000 |
— | ||
|
10
|
10
17851-85C00-000
Hose, radiator outlet no. 1
|
17851-85C00-000 |
— | ||
|
11
|
11
17852-85C00-000
Hose, radiator outlet no. 2
|
17852-85C00-000 |
— | ||
|
12
|
12
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
13
|
13
17859-85C00-000
Hose, water bypass
|
17859-85C00-000 |
— | ||
|
14
|
14
17879-85C00-000
Clip, 3 way side
|
17879-85C00-000 |
— | ||
|
15
|
15
17871-85C00-000
Hose, heater inlet
|
17871-85C00-000 |
— | ||
|
16
|
16
17872-85C00-000
Hose, heater outlet
|
17872-85C00-000 |
— | ||
|
17
|
17
11196-85C10-000
Clip, heater hose
|
11196-85C10-000 |
— | ||
|
18
|
18
09408-00117-000 CLAMP |
09408-00117-000 |
US $20.20 |
||
