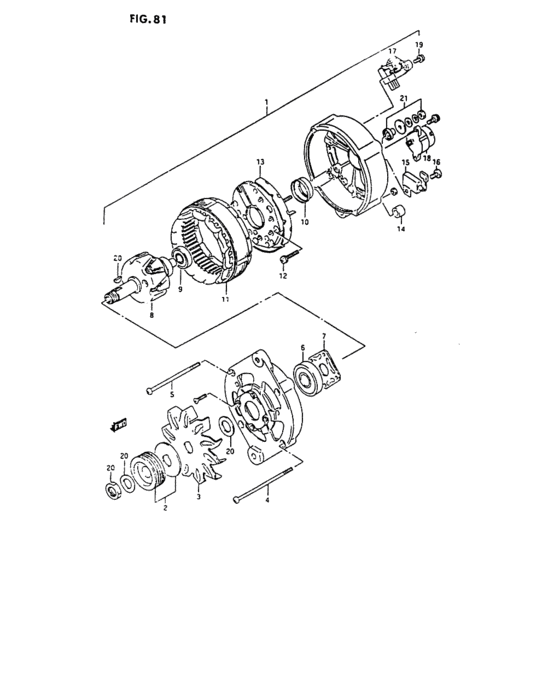

Generator (GENERATOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-85C00-000
Generator assy
|
31400-85C00-000 |
— | ||
|
2
|
2
31171-85C00-000
Pulley
|
31171-85C00-000 |
— | ||
|
3
|
3
31761-85C00-000
Fan
|
31761-85C00-000 |
— | ||
|
4
|
4
31651-85C00-000
Bolt
|
31651-85C00-000 |
— | ||
|
5
|
5
31651-85C10-000
Bolt
|
31651-85C10-000 |
— | ||
|
6
|
6
31582-85C00-000
Bearing
|
31582-85C00-000 |
— | ||
|
7
|
7
31585-85C00-000
Plate, bearing
|
31585-85C00-000 |
— | ||
|
8
|
8
31710-85C00-000
Rotor assy
|
31710-85C00-000 |
— | ||
|
9
|
9
31612-85C00-000
Bearing
|
31612-85C00-000 |
— | ||
|
10
|
10
31583-85C00-000
Bush
|
31583-85C00-000 |
— | ||
|
11
|
11
31410-85C00-000
Stator assy
|
31410-85C00-000 |
— | ||
|
12
|
12
31586-85C00-000
Screw
|
31586-85C00-000 |
— | ||
|
13
|
13
31621-85C00-000
Rectifier Assy
|
31621-85C00-000 |
— | ||
|
14
|
14
31616-85C00-000
Bush
|
31616-85C00-000 |
— | ||
|
15
|
15
31641-85C00-000
Condensor
|
31641-85C00-000 |
— | ||
|
16
|
16
31586-85C10-000
Screw
|
31586-85C10-000 |
— | ||
|
17
|
17
32500-85C00-000
Regulator assy
|
32500-85C00-000 |
— | ||
|
18
|
18
31791-85C00-000
Connector
|
31791-85C00-000 |
— | ||
|
19
|
19
31586-85C20-000
Screw
|
31586-85C20-000 |
— | ||
|
20
|
20
31775-85C00-000
Parts set, rotor
|
31775-85C00-000 |
— | ||
|
21
|
21
31514-85C00-000
Parts set, insulator
|
31514-85C00-000 |
— |
