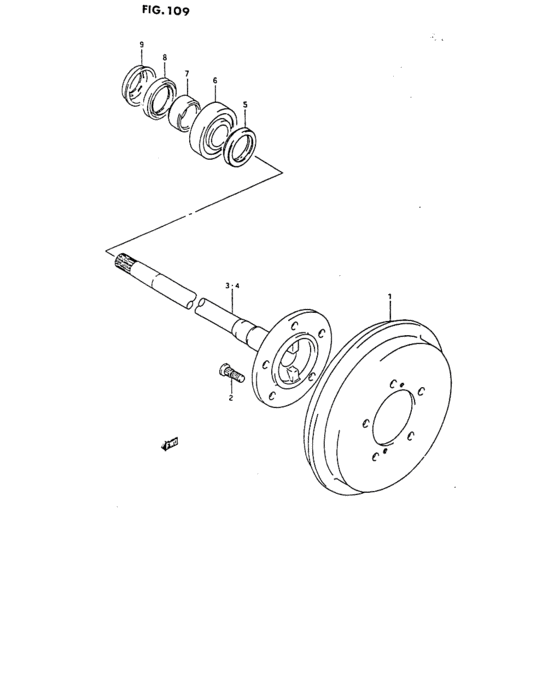

Rear axle and brake drum (4 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-60A10-000 DRUM,BRAKE RR3DR |
43511-60A10-000 |
US $167.81 |
||
|
1
|
1
43511-77E00-000 DRUM,RR BRAKE5DR |
43511-77E00-000 |
US $553.28 |
||
|
2
|
2
09119-12008-000
ボルト,12X38
|
09119-12008-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
44211-85C10-000
Shaft, rear axle rh
|
44211-85C10-000 |
— | ||
|
4
|
4
44221-85C10-000
Shaft, rear axle lh
|
44221-85C10-000 |
— | ||
|
5
|
5
09284-45001-000 SEAL,OIL(45X59X8) |
09284-45001-000 |
from US $9.97 |
||
|
6
|
6
09269-35010-000 BEARING(35X80X21) |
09269-35010-000 |
US $109.60 |
||
|
7
|
7
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $8.51 |
||
|
8
|
8
09282-48003-000 SEAL,OIL(48X62X9) |
09282-48003-000 |
from US $11.63 |
||
|
9
|
9
43588-73000-000 PROTECTOR,OIL SEAL |
43588-73000-000 |
from US $1.52 |
||
