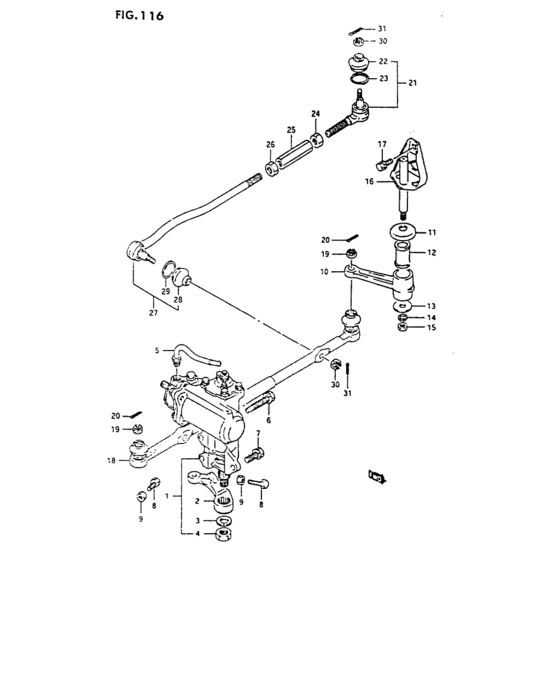

Steering link and gear box (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-60A22-000
BOX ASSY,POWER STEERING GEAR,R
|
48600-60A22-000 |
— | ||
|
2
|
2
48671-60A20-000
PITMAN ARM
|
48671-60A20-000 |
— | ||
|
3
|
3
08321-21208-000
Washer,lock 20m
|
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK |
48644-80010-000 |
US $1.92 |
||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
US $5.92 |
||
|
5
|
5
48691-60A21-000 TUBE,RETURN |
48691-60A21-000 |
US $20.79 |
||
|
6
|
6
01570-12353-000
ボルト
|
01570-12353-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1235A-000 Bolt |
01570-1235A-000 |
US $21.70 |
||
|
7
|
7
01570-12353-000
ボルト
|
01570-12353-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1235A-000 Bolt |
01570-1235A-000 |
US $21.70 |
||
|
8
|
8
48775-60A00-000 BOLT,STOPPER |
48775-60A00-000 |
US $1.60 |
||
|
9
|
9
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
9
|
9
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
10
|
10
48721-60A00-000 ARM,IDLER |
48721-60A00-000 |
US $74.34 |
||
|
11
|
11
48771-60A00-000 WASHER,IDLER ARM UPR |
48771-60A00-000 |
US $3.02 |
||
|
12
|
12
48750-60A00-000 BUSHING,IDLER ARM |
48750-60A00-000 |
from US $23.20 |
||
|
13
|
13
09160-12079-000 WASHER(12.2X40X2.6) |
09160-12079-000 |
US $1.28 |
||
|
14
|
14
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
15
|
15
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
16
|
16
48760-60A01-000 BRACKET,IDLER ARM |
48760-60A01-000 |
from US $41.95 |
||
|
17
|
17
01500-10203-000
Plug, oil drain
|
01500-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
18
|
18
48850-85C00-000
Link assy, steering center
|
48850-85C00-000 |
— | ||
|
19
|
19
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
19
|
19
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
20
|
20
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
20
|
20
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
21
|
21
48810-85C00-000
End, tie rod lh
|
48810-85C00-000 |
— | ||
|
22
|
22
48814-85C00-000
Seal set, tie rod end dust
|
48814-85C00-000 |
— | ||
|
23
|
23
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
24
|
24
09140-16022-000 NUT |
09140-16022-000 |
US $2.56 |
||
|
25
|
25
48836-85C00-000
Connector, tie rod end
|
48836-85C00-000 |
— | ||
|
26
|
26
09140-16023-000 NUT |
09140-16023-000 |
from US $1.73 |
||
|
27
|
27
48820-85C00-000
End, steering tie rod
|
48820-85C00-000 |
— | ||
|
28
|
28
48814-85C00-000
Seal set, tie rod end dust
|
48814-85C00-000 |
— | ||
|
29
|
29
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
30
|
30
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
30
|
30
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
31
|
31
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
31
|
31
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
