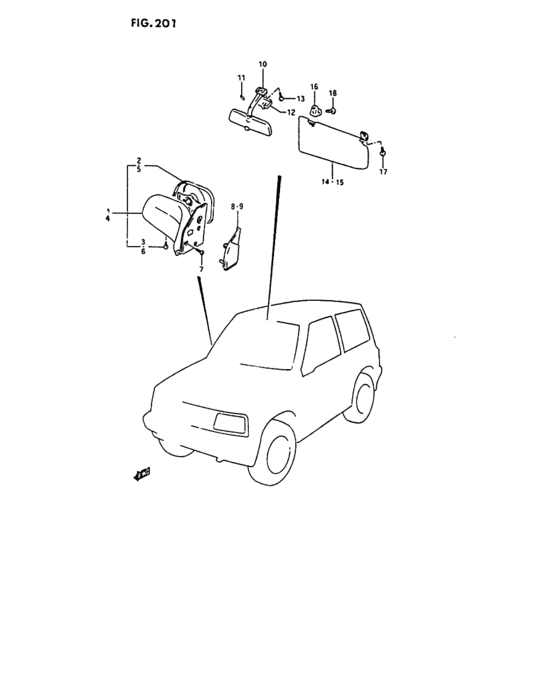

Mirror/sun visor (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-62A20-5PK MIRROR ASSY,RR VIEW,RLHD(MANUAL) |
84701-62A20-5PK |
US $196.88 |
||
|
1
|
1
84701-85C10-799
Mirror, out rr view rh
LHD(REMOCON) |
84701-85C10-799 |
— | ||
|
1
|
1
84701-61A20-5PK MIRROR ASSY,RR VIEW,RRHD(MANUAL) |
84701-61A20-5PK |
US $187.68 |
||
|
1
|
1
84701-61A30-Y27
Mirror assy,out rear view,r
MY97,RHD(REMOCON) |
84701-61A30-Y27 |
— | ||
|
1
|
1
84701-61A30-5PK
MIRROR ASSY,RR VIEW,R
MY98:RHD(REMOCON),JX |
84701-61A30-5PK |
— | ||
|
1
|
1
84701-61A30-Y28
MIRROR ASSY,RR VIEW,R
RHD(REMOCON) |
84701-61A30-Y28 |
— | ||
|
1
|
1
84701-61A30-Y29
MIRROR ASSY,RR VIEW,R
MY97,RHD(REMOCON) |
84701-61A30-Y29 |
— | ||
|
1
|
1
84701-61A30-Y31
Mirror, out rr view rh
MY98,RHD(REMOCON) |
84701-61A30-Y31 |
— | ||
|
1
|
1
84701-61A30-Y33
MIRROR,RR VIEW,R
MY97,RHD(REMOCON) |
84701-61A30-Y33 |
— | ||
|
1
|
1
84701-61A30-Y34
Mirror, out rr view rh
MY98,RHD(REMOCON) |
84701-61A30-Y34 |
— | ||
|
1
|
1
84701-61A30-Z01
ミラーアッシ,アウトリヤビュー,ライト(グリーン)
MY97,RHD(REMOCON) |
84701-61A30-Z01 |
— | ||
|
1
|
1
84701-61A30-Z05
Mirror, out rr view rh
MY98,RHD(REMOCON) (VIOLET) |
84701-61A30-Z05 |
— | ||
|
1
|
1
84701-61A30-0DG
MIRROR ASSY,RR VIEW,R
RHD(REMOCON) |
84701-61A30-0DG |
— | ||
|
1
|
1
84701-61A30-0BM
MIRROR ASSY,RR VIEW,R
MY98,RHD(REMOCON) |
84701-61A30-0BM |
— | ||
|
1
|
1
84701-61A30-0FT
MIRROR ASSY,RR VIEW,R
RHD(REMOCON) |
84701-61A30-0FT |
— | ||
|
1
|
1
84701-61A30-26U MIRROR ASSY,RR VIEW,RRHD(REMOCON) |
84701-61A30-26U |
US $230 |
||
|
2
|
2
84720-61A00-000 MIRROR S/ASSY,OUT RR VIEW,RMANUAL |
84720-61A00-000 |
US $50.42 |
||
|
2
|
2
84720-61A10-000 MIRROR S/ASSY,OUT RR VIEW,RLHD(REMOCON) |
84720-61A10-000 |
US $131.38 |
||
|
3
|
3
03511-04103-000
Tapping screw
|
03511-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
03511-0410A-000 SCREW |
03511-0410A-000 |
from US $2.40 |
||
|
4
|
4
84702-62A20-5PK MIRROR ASSY,RR VIEW,LLHD(MANUAL) |
84702-62A20-5PK |
US $196.88 |
||
|
4
|
4
84702-85C10-799
Mirror, out rr view lh
LHD(REMOCON) |
84702-85C10-799 |
— | ||
|
4
|
4
84702-61A20-5PK
MIRROR ASSY,RR VIEW,L
RHD(MANUAL) |
84702-61A20-5PK |
— | ||
|
4
|
4
84702-61A30-Y27
ミラーアッシ,アウトリヤビュー,レフト(グレー)
MY97,RHD(REMOCON) |
84702-61A30-Y27 |
— | ||
|
4
|
4
84702-61A30-5PK
Mirror assy,out rear view,l
MY98,RHD(REMOCON),JX |
84702-61A30-5PK |
— | ||
|
4
|
4
84702-61A30-Y28
MIRROR ASSY,RR VIEW,L
RHD(REMOCON) |
84702-61A30-Y28 |
— | ||
|
4
|
4
84702-61A30-Y29
Mirror assy,out rear view,l
MY97,RHD(REMOCON) |
84702-61A30-Y29 |
— | ||
|
4
|
4
84702-61A30-Y31
Mirror, out rr view lh
MY98,RHD(REMOCON) |
84702-61A30-Y31 |
— | ||
|
4
|
4
84702-61A30-Y33
MIRROR,RR VIEW,L
MY97,RHD(REMOCON) |
84702-61A30-Y33 |
— | ||
|
4
|
4
84702-61A30-Y34
Mirror, out rr view lh
MY98,RHD(REMOCON) |
84702-61A30-Y34 |
— | ||
|
4
|
4
84702-61A30-Z01
MIRROR ASSY,RR VIEW,L
MY97,RHD(REMOCON) |
84702-61A30-Z01 |
— | ||
|
4
|
4
84702-61A30-Z05
Mirror, out rr view lh
MY98,RHD(REMOCON) (VIOLET) |
84702-61A30-Z05 |
— | ||
|
4
|
4
84702-61A30-0DG
Mirror assy,out rear view,l(bl
RHD(REMOCON) |
84702-61A30-0DG |
— | ||
|
4
|
4
84702-61A30-0BM
MIRROR ASSY,RR VIEW,L
MY98,RHD(REMOCON) |
84702-61A30-0BM |
— | ||
|
4
|
4
84702-61A30-0FT
Mirror assy,out rear view,l(re
RHD(REMOCON) |
84702-61A30-0FT |
— | ||
|
4
|
4
84702-61A30-26U
MIRROR ASSY,RR VIEW,L
RHD(REMOCON) |
84702-61A30-26U |
— | ||
|
5
|
5
84760-61A00-000 MIRROR S/ASSY,OUT RR VIEW,LMANUAL |
84760-61A00-000 |
US $53.20 |
||
|
5
|
5
84760-61A10-000 MIRROR S/ASSY,OUT RR VIEW,LLHD(REMOCON) |
84760-61A10-000 |
US $264 |
||
|
6
|
6
03511-04103-000
Tapping screw
|
03511-04103-000 |
— | ||
| replacement | |||||
|
6
|
6
03511-0410A-000 SCREW |
03511-0410A-000 |
from US $2.40 |
||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
84750-85C00-5PK
Garnish, sash brkt inr rh
|
84750-85C00-5PK |
— | ||
|
9
|
9
84790-85C00-5PK
Garnish, sash brkt inr lh
|
84790-85C00-5PK |
— | ||
|
10
|
10
84703-85C10-5PK
Mirror, inside rr view
MY97, |
84703-85C10-5PK |
— | ||
|
10
|
10
84703-85C10-T01
Mirror, inside rr view
MY98, |
84703-85C10-T01 |
— | ||
|
11
|
11
84782-85C00-000
Rubber
|
84782-85C00-000 |
— | ||
|
12
|
12
84781-60A00-5PK COVER,INSIDE MIRROR STAYMY97,JX |
84781-60A00-5PK |
US $2.74 |
||
|
12
|
12
84781-85C00-6GS
Cover
MY98,JX |
84781-85C00-6GS |
— | ||
|
13
|
13
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
13
|
13
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
14
|
14
84800-60811-2WE
SUNSHADE SET, RH (GRAY)
MY97:JX |
84800-60811-2WE |
— | ||
| replacement | |||||
|
14
|
14
84800-60812-2WE
SUNVISOR ASSY,R
MY97:JX |
84800-60812-2WE |
— | ||
|
14
|
14
84800-60851-5UN
Sunshade set, rh
MY97:LHD:JLX |
84800-60851-5UN |
— | ||
| replacement | |||||
|
14
|
14
84800-60852-5UN
SUNVISOR ASSY,R
MY97:LHD:JLX |
84800-60852-5UN |
— | ||
|
14
|
14
84800-60811-5UN
Sunfivor set, rh
MY97:RHD:JLX |
84800-60811-5UN |
— | ||
| replacement | |||||
|
14
|
14
84800-60812-5UN
SUNVISOR ASSY,R
MY97:RHD:JLX |
84800-60812-5UN |
— | ||
|
14
|
14
84801-60A00-6NY
Sunvisor assy, rh
MY98:JX |
84801-60A00-6NY |
— | ||
| replacement | |||||
|
14
|
14
84801-60A01-6NY
SUNVISOR ASSY,R
MY98:JX |
84801-60A01-6NY |
— | ||
|
14
|
14
84801-61A00-T18
Sunvisor set, rh
MY98:LHD:JLX |
84801-61A00-T18 |
— | ||
| replacement | |||||
|
14
|
14
84801-61A01-T18
SUNVISOR ASSY,R
MY98:LHD:JLX |
84801-61A01-T18 |
— | ||
|
14
|
14
84801-69A20-T18
Sunvisor assy,r(gray)
MY98:LHD:JLX-W/CAUTION LABEL,AIR,BAG |
84801-69A20-T18 |
— | ||
| replacement | |||||
|
14
|
14
84801-69A2V-T18
Sunvisor assy,r
MY98:LHD:JLX-W/CAUTION LABEL,AIR,BAG |
84801-69A2V-T18 |
— | ||
|
14
|
14
84801-60A00-T18
Sunvisor assy, rh
MY98:RHD:JLX |
84801-60A00-T18 |
— | ||
| replacement | |||||
|
14
|
14
84801-60A01-T18
Sunvisor assy,r
MY98:RHD:JLX |
84801-60A01-T18 |
— | ||
|
15
|
15
84800-60821-2WE
SUNSHADE SET, LH (GRAY)
MY97:JX |
84800-60821-2WE |
— | ||
| replacement | |||||
|
15
|
15
84800-60822-2WE
SUNSHADE SET, LH (GRAY)
MY97:JX |
84800-60822-2WE |
— | ||
|
15
|
15
84800-60821-5UN
Sunshade set, lh
MY97:LHD:JLX |
84800-60821-5UN |
— | ||
| replacement | |||||
|
15
|
15
84800-60822-5UN
SUNVISOR ASSY,L
MY97:LHD:JLX |
84800-60822-5UN |
— | ||
|
15
|
15
84800-69820-5UN
Sunvisor set, lh
MY97:LHD:W/AIR BAG |
84800-69820-5UN |
— | ||
| replacement | |||||
|
15
|
15
84802-69A0V-5UN
SUNVISOR ASSY,L
MY97:LHD:W/AIR BAG |
84802-69A0V-5UN |
— | ||
|
15
|
15
84800-60841-5UN
SUNVISOR SET,L
MY97:RHD:JLX |
84800-60841-5UN |
— | ||
|
15
|
15
84802-60A00-6NY
Sunvisor assy, lh
MY98:JX |
84802-60A00-6NY |
— | ||
| replacement | |||||
|
15
|
15
84802-60A01-6NY
SUNVISOR ASSY,L
MY98:JX |
84802-60A01-6NY |
— | ||
|
15
|
15
84802-60A00-T18
Sunvisor set, lh
MY98:LHD:JLX |
84802-60A00-T18 |
— | ||
| replacement | |||||
|
15
|
15
84802-60A01-T18 SUNVISOR ASSY,LMY98:LHD:JLX |
84802-60A01-T18 |
US $47.10 |
||
|
15
|
15
84802-69A02-T18
Sunvisor assy, lh
MY98:LHD:W/AIR BAG |
84802-69A02-T18 |
— | ||
| replacement | |||||
|
15
|
15
84802-69A0V-T18 SUNVISOR ASSY,LMY98:LHD:W/AIR BAG |
84802-69A0V-T18 |
US $55.20 |
||
|
15
|
15
84802-61A00-T18 SUNVISOR ASSY,LMY98:RHD:JLX |
84802-61A00-T18 |
US $70.66 |
||
|
16
|
16
84851-85C00-000
Holder, sunvisor
MY97, |
84851-85C00-000 |
— | ||
|
16
|
16
84851-60B00-6GS HOLDER,SUNVISORMY98, |
84851-60B00-6GS |
US $4.27 |
||
|
17
|
17
09139-05059-000 Screw, sunvisorMY97 |
09139-05059-000 |
US $1.12 |
||
| replacement | |||||
|
17
|
17
02122-0516B-000 SCREWMY97 |
02122-0516B-000 |
from US $0.80 |
||
|
17
|
17
02122-05163-000
Screw, inner
MY98 |
02122-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
02122-0516B-000 SCREWMY98 |
02122-0516B-000 |
from US $0.80 |
||
|
18
|
18
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
