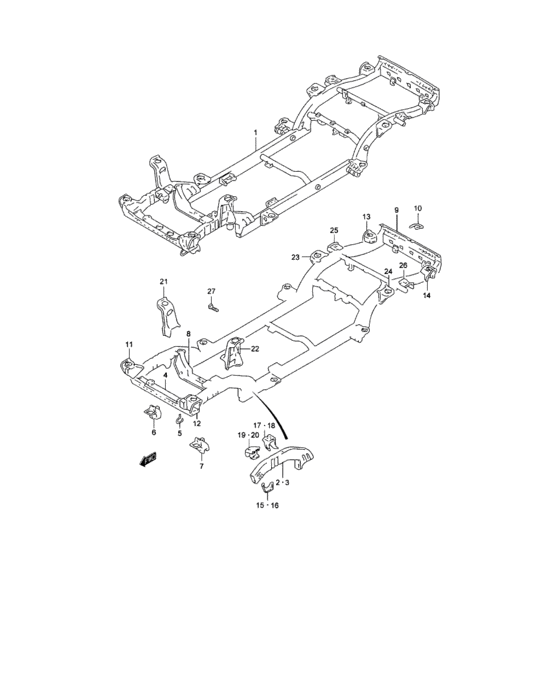

Chassis frame (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-58B50-000
Frame assy
|
57000-58B50-000 |
— | ||
|
2
|
2
57110-56B21-000
MEMBER,SIDE FRAME FR,R
|
57110-56B21-000 |
— | ||
|
3
|
3
57160-56B20-000
MEMBER,SIDE FRAME FR,L
|
57160-56B20-000 |
— | ||
|
4
|
4
57210-56B20-000 CROSSMEMBER,1ST |
57210-56B20-000 |
US $390.08 |
||
|
5
|
5
57213-56B00-000
HOOK,FR TOWING
|
57213-56B00-000 |
— | ||
|
6
|
6
57710-56B20-000
HANGER,FR SPNSN ARM,R
|
57710-56B20-000 |
— | ||
|
7
|
7
57720-56B20-000
HANGER,FR SPNSN ARM,L
|
57720-56B20-000 |
— | ||
|
8
|
8
57220-56B20-000
Crossmember, 2nd
|
57220-56B20-000 |
— | ||
|
9
|
9
57260-56B01-000
クロスメンバ,テール
|
57260-56B01-000 |
— | ||
| replacement | |||||
|
9
|
9
57260-56B02-000
CROSSMEMBER,TAIL
|
57260-56B02-000 |
— | ||
|
10
|
10
57264-56B00-000 HOOK,RR TOWING |
57264-56B00-000 |
US $26.86 |
||
|
11
|
11
57310-56B00-000 BRACKET,1ST MOUNTING,R |
57310-56B00-000 |
US $128.80 |
||
|
12
|
12
57320-56B00-000
BRACKET,1ST MOUNTING,L
|
57320-56B00-000 |
— | ||
|
13
|
13
57371-56B00-000 BRACKET,4TH MOUNTING,R |
57371-56B00-000 |
US $34.96 |
||
|
14
|
14
57381-56B01-000 BRACKET,4TH MOUNTING,L |
57381-56B01-000 |
US $34.96 |
||
|
15
|
15
57411-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,R |
57411-56B00-000 |
US $13.51 |
||
|
16
|
16
57412-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,L |
57412-56B00-000 |
US $13.51 |
||
|
17
|
17
57511-60A00-000
BRACKET,ENG MTG,R
|
57511-60A00-000 |
— | ||
|
18
|
18
57521-60A00-000
BRACKET,ENG MTG,L
|
57521-60A00-000 |
— | ||
|
19
|
19
57620-60A00-000
BRACKET,FR DIFF MTG,R
|
57620-60A00-000 |
— | ||
|
20
|
20
57630-60A00-000
BRACKET,FR DIFF MTG,L
|
57630-60A00-000 |
— | ||
|
21
|
21
57730-56B10-000 BRACKET,FR STRUT,R |
57730-56B10-000 |
US $268.64 |
||
|
22
|
22
57740-56B00-000 BRACKET,FR STRUT,L |
57740-56B00-000 |
US $323.84 |
||
|
23
|
23
57810-77E00-000 BRACKET,RR COIL SPRING,R |
57810-77E00-000 |
US $69.18 |
||
|
24
|
24
57820-77E00-000
BRACKET,RR COIL SPRING,L
|
57820-77E00-000 |
— | ||
|
25
|
25
57831-56B00-000
BRACKET,RR SHOCK ABSORBER,R
|
57831-56B00-000 |
— | ||
|
26
|
26
57841-56B00-000
BRACKET,RR SHOCK ABSORBER,L
|
57841-56B00-000 |
— | ||
|
27
|
27
59971-85C00-000
Bolt/stud
|
59971-85C00-000 |
— | ||
