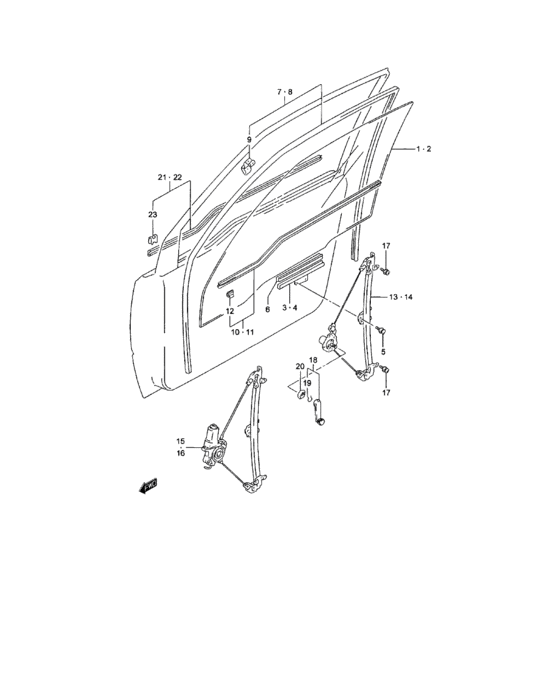

Fr dr regulator (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-85C00-000
Glass, window rh
|
84531-85C00-000 |
— | ||
|
2
|
2
84536-85C00-000
Glass, window lh
|
84536-85C00-000 |
— | ||
|
3
|
3
83610-85C00-000
Channel, glass bottom rh
|
83610-85C00-000 |
— | ||
|
4
|
4
83620-85C00-000
Channel, glass bottom lh
|
83620-85C00-000 |
— | ||
|
5
|
5
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
6
|
6
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL |
83691-60A00-000 |
US $2.56 |
||
|
7
|
7
83660-60A00-000 RUN,FR DOOR GLASS,R |
83660-60A00-000 |
US $84 |
||
|
8
|
8
83680-60A00-000 RUN,FR DOOR GLASS,L |
83680-60A00-000 |
US $92.80 |
||
|
9
|
9
83662-60A00-000 GUIDE,DR WINDOW GLASS |
83662-60A00-000 |
US $13.60 |
||
|
10
|
10
83850-60A00-000 WEATHERSTRIP,DR INR,RJX |
83850-60A00-000 |
US $94.40 |
||
|
11
|
11
83860-60A00-000 WEATHERSTRIP,DR INR,LJX |
83860-60A00-000 |
US $94.40 |
||
|
12
|
12
83852-60A00-000 CLIPJX |
83852-60A00-000 |
US $1.92 |
||
|
13
|
13
83410-A60A0-000
Regulator assy, lh
JX |
83410-A60A0-000 |
— | ||
|
14
|
14
83410-A60A0-000
Regulator assy, lh
JX |
83410-A60A0-000 |
— | ||
|
15
|
15
83401-85C00-000
Regulator assy, rh
JLX |
83401-85C00-000 |
— | ||
|
16
|
16
83402-85C00-000
Regulator assy, lh
JLX |
83402-85C00-000 |
— | ||
|
17
|
17
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
18
|
18
82960-82100-T01
Handle, regulator
JX |
82960-82100-T01 |
— | ||
|
19
|
19
78463-78000-000 SNAPJX |
78463-78000-000 |
US $1.60 |
||
|
20
|
20
82972-82100-T01
Escutcheon, handle
JX |
82972-82100-T01 |
— | ||
|
21
|
21
83810-65A00-000 WEATHERSTRIP,DR OUT,RH |
83810-65A00-000 |
US $110.40 |
||
|
22
|
22
83820-65A00-000 WEATHERSTRIP,DR OUT,LH |
83820-65A00-000 |
US $110.40 |
||
|
23
|
23
83812-60A00-000 CLIP |
83812-60A00-000 |
US $1.60 |
||
