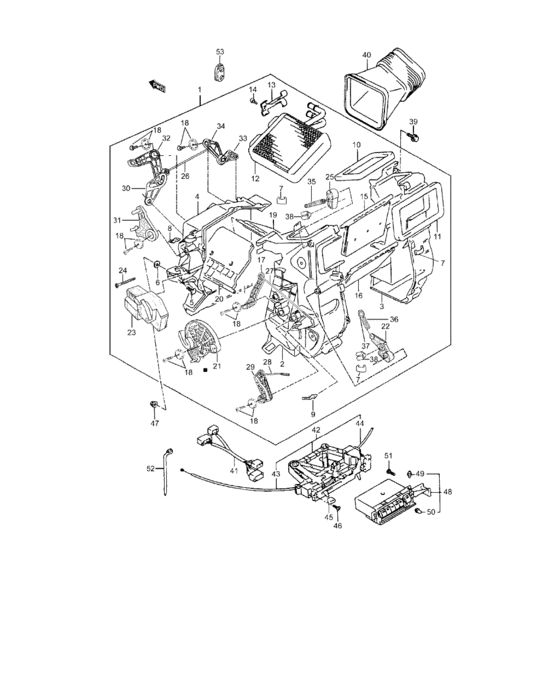

Heater (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74019-86C00-000
Heater assy
|
74019-86C00-000 |
— | ||
|
2
|
2
74211-85C00-000
Case, blower lh
|
74211-85C00-000 |
— | ||
|
3
|
3
74212-85C00-000
Case, blower rh
|
74212-85C00-000 |
— | ||
|
4
|
4
74113-85C10-000
Case, heater rr
|
74113-85C10-000 |
— | ||
|
5
|
5
74115-85C00-000
Bolt
|
74115-85C00-000 |
— | ||
|
6
|
6
74116-85C00-000
Gasker
|
74116-85C00-000 |
— | ||
|
7
|
7
74133-85C00-000
Spring, holder
|
74133-85C00-000 |
— | ||
|
8
|
8
74151-85C00-000
Clamp
|
74151-85C00-000 |
— | ||
|
9
|
9
74151-85C00-000
Clamp
|
74151-85C00-000 |
— | ||
|
10
|
10
74161-85C00-000
Packing, dfr
|
74161-85C00-000 |
— | ||
|
11
|
11
74162-85C00-000
Packing, vent
|
74162-85C00-000 |
— | ||
|
12
|
12
74120-85C10-000
Core, heater
|
74120-85C10-000 |
— | ||
|
13
|
13
74199-85C10-000
Clamp
|
74199-85C10-000 |
— | ||
|
14
|
14
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
15
|
15
74171-85C10-000
Damper, v/d
|
74171-85C10-000 |
— | ||
|
16
|
16
74172-85C00-000
Damper, heat
|
74172-85C00-000 |
— | ||
|
17
|
17
74176-85C10-000
Lever, control
|
74176-85C10-000 |
— | ||
|
18
|
18
74183-85C00-000
Bolt and washer, lever
|
74183-85C00-000 |
— | ||
|
19
|
19
74173-85C10-000
Damper, a/m no. 1
|
74173-85C10-000 |
— | ||
|
20
|
20
74174-85C10-000
Damper, a/m no. 2
|
74174-85C10-000 |
— | ||
|
21
|
21
74180-85C10-000
Lever assy, heat
|
74180-85C10-000 |
— | ||
|
22
|
22
74190-85C10-000
Lever assy, temp
|
74190-85C10-000 |
— | ||
|
23
|
23
95653-85C10-000
Actuator mode
|
95653-85C10-000 |
— | ||
|
24
|
24
95911-63G00-000 SCREW,ACTUATOR |
95911-63G00-000 |
US $2.39 |
||
|
25
|
25
74181-86CT0-000
Lever assy, ventilation
|
74181-86CT0-000 |
— | ||
|
26
|
26
74193-86CT0-000
Link, rr
|
74193-86CT0-000 |
— | ||
|
27
|
27
74191-86CT0-000
Link, upper side
|
74191-86CT0-000 |
— | ||
|
28
|
28
74192-86CT0-000
Link, lower side
|
74192-86CT0-000 |
— | ||
|
29
|
29
74185-86CT0-000
Lever, control
|
74185-86CT0-000 |
— | ||
|
30
|
30
74184-86CT0-000
Lever assy, damper n.2
|
74184-86CT0-000 |
— | ||
|
31
|
31
74177-86CT0-000
Lever assy, heat control
|
74177-86CT0-000 |
— | ||
|
32
|
32
74178-86CT0-000
Lever, control
|
74178-86CT0-000 |
— | ||
|
33
|
33
74183-86CT0-000
Lever assy, damper n.1
|
74183-86CT0-000 |
— | ||
|
34
|
34
74179-86CT0-000
Lever, control
|
74179-86CT0-000 |
— | ||
|
35
|
35
74132-86CT0-000
Spring
|
74132-86CT0-000 |
— | ||
|
36
|
36
74131-86CT0-000
Spring
|
74131-86CT0-000 |
— | ||
|
37
|
37
74118-86CT0-000
Washer
|
74118-86CT0-000 |
— | ||
|
38
|
38
74122-86CT0-000
Clip
|
74122-86CT0-000 |
— | ||
|
39
|
39
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
39
|
39
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
40
|
40
74620-60A10-000
DUCT,HEATER
N/ AIR CON |
74620-60A10-000 |
— | ||
|
41
|
41
74436-78E60-000
HARNESS,MODE CONTROL SW
|
74436-78E60-000 |
— | ||
|
42
|
42
74400-78E50-000 LEVER ASSY,HTR CONT |
74400-78E50-000 |
US $93.84 |
||
|
43
|
43
74452-78E10-000 CABLE,TEMP CONTROL L:490L:490 |
74452-78E10-000 |
US $11.59 |
||
|
44
|
44
74453-85C70-000 CABLE,FRESH AIR CONTROLL:490 |
74453-85C70-000 |
US $18.77 |
||
|
45
|
45
74461-78E00-5PK KNOB,CONTROL LEVER |
74461-78E00-5PK |
US $9.28 |
||
|
46
|
46
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
46
|
46
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
47
|
47
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
47
|
47
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
47
|
47
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
48
|
48
74510-63G01-5PK SWITCH,MODE CONTROLN/ AIR CON |
74510-63G01-5PK |
US $636.80 |
||
|
48
|
48
74510-63G11-5PK SWITCH,MODE CONTROLW/ AIR CON |
74510-63G11-5PK |
US $636.80 |
||
|
49
|
49
74513-63G00-000 BULB,0.7W0.7 W |
74513-63G00-000 |
US $82.85 |
||
|
50
|
50
74514-63G00-000 BULB,0.6W0.6 W |
74514-63G00-000 |
US $8.48 |
||
|
51
|
51
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
51
|
51
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
52
|
52
36990-85C10-000
Clamp, wiper harness
|
36990-85C10-000 |
— | ||
|
53
|
53
74812-82010-000 GROMMET,HTR |
74812-82010-000 |
US $6 |
||
| replacement | |||||
|
53
|
53
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
