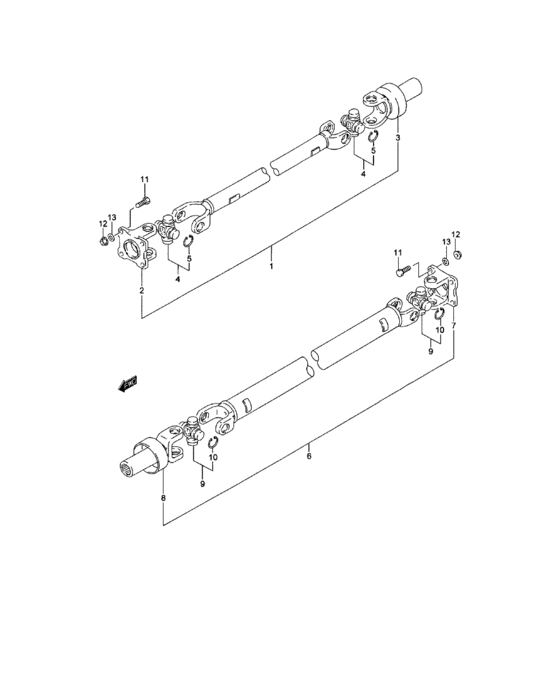

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-85C00-000
Shaft assy, propeller front
|
27101-85C00-000 |
— | ||
|
2
|
2
27131-85C00-000
Yoke, joint flange
|
27131-85C00-000 |
— | ||
|
3
|
3
27140-85C00-000
Yoke, sliding
|
27140-85C00-000 |
— | ||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal |
27200-83813-000 |
US $57.60 |
||
|
5
|
5
27225-85C00-000
Circlip
|
27225-85C00-000 |
— | ||
|
6
|
6
27102-60A10-000 SHAFT ASSY,PROPELLER REAR3DR |
27102-60A10-000 |
US $418.88 |
||
|
6
|
6
27102-56B10-000 SHAFT ASSY,PROPELLER REAR5DR |
27102-56B10-000 |
US $545.60 |
||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A30-000 YOKE,SLIDING |
27140-60A30-000 |
US $147.57 |
||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
| replacement | |||||
|
9
|
9
27200-83813-000 Joint Set,universal |
27200-83813-000 |
US $57.60 |
||
|
10
|
10
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
01500-10303-000
Bolt
|
01500-10303-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
12
|
12
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
13
|
13
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
