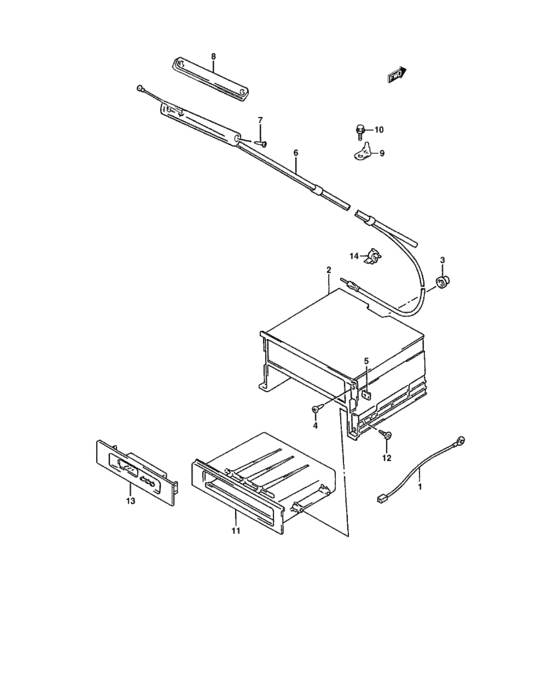

Radio (RADIO) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39191-85C00-000
Wire, tuner ground no. 1
|
39191-85C00-000 |
— | ||
|
2
|
2
39321-65D10-000
BRACKET,TUNER
N/ TUNER |
39321-65D10-000 |
— | ||
|
2
|
2
39321-85C10-000
Bracket, tuner
W/ TUNER |
39321-85C10-000 |
— | ||
|
3
|
3
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
4
|
4
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
5
|
5
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
6
|
6
39250-85C10-000
Antenna assy
W/ ANTENNA |
39250-85C10-000 |
— | ||
|
7
|
7
39251-50G00-000
スクリュ,アンテナ
|
39251-50G00-000 |
— | ||
| replacement | |||||
|
7
|
7
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $15.10 |
||
|
8
|
8
39262-60A00-000
COVER,ANT HOLE
N/ ANTENNA |
39262-60A00-000 |
— | ||
|
9
|
9
36865-82000-000 TERMINAL,GND |
36865-82000-000 |
US $2.80 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
39182-70E01-000
ポケット,チューナ
|
39182-70E01-000 |
— | ||
| replacement | |||||
|
11
|
11
39182-70E51-000 POCKET,TUNER |
39182-70E51-000 |
US $20 |
||
|
12
|
12
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
13
|
13
34600-85C00-000
Clock assy
|
34600-85C00-000 |
— | ||
|
14
|
14
39283-85C00-000
Clamp, cable
W/ ANTENNA |
39283-85C00-000 |
— | ||
