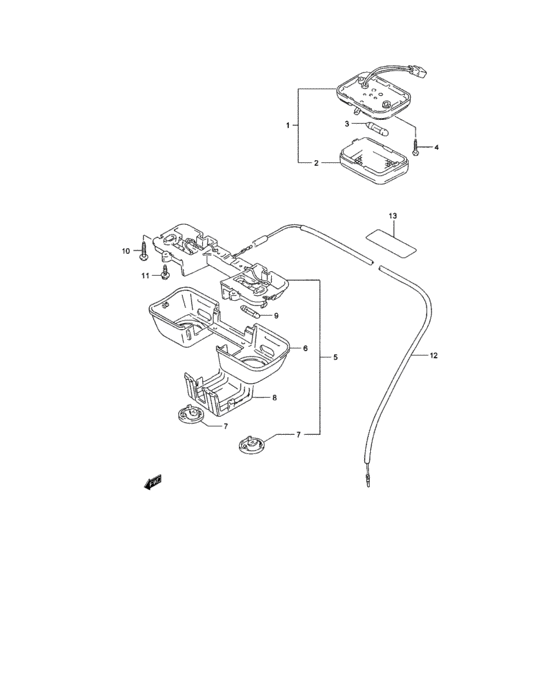

Room lamp (ROOM LAMP) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-85C00-6GS
Lamp assy, room
|
36210-85C00-6GS |
— | ||
|
2
|
2
36212-85C00-000
Lens
|
36212-85C00-000 |
— | ||
|
3
|
3
09471-12073-000 BULB(12V,5W)12V, 5W |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03211-04163-000
Screw
|
03211-04163-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.76 |
||
|
5
|
5
36230-85C10-6GS
Lamp Assy, Spot
JLX |
36230-85C10-6GS |
— | ||
|
5
|
5
36230-85C20-6GS
Lamp Assy, Spot
JLX |
36230-85C20-6GS |
— | ||
|
5
|
5
36230-85C30-6GS
Lamp Assy, Spot
HT:JLX |
36230-85C30-6GS |
— | ||
|
6
|
6
36235-85C10-6GS
Housing
JLX |
36235-85C10-6GS |
— | ||
|
7
|
7
36232-85C10-T01
Lens
JLX |
36232-85C10-T01 |
— | ||
|
8
|
8
36242-85C10-000
Cover
JLX |
36242-85C10-000 |
— | ||
|
9
|
9
09471-12073-000 BULB(12V,5W)JLX (12V, 5W) |
09471-12073-000 |
from US $2.40 |
||
|
10
|
10
03142-05203-000
Screw
JLX |
03142-05203-000 |
— | ||
| replacement | |||||
|
10
|
10
03142-0520B-000 SCREWJLX |
03142-0520B-000 |
from US $0.80 |
||
|
11
|
11
03541-04103-000
Screw
JLX |
03541-04103-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0410A-000 SCREWJLX |
03541-0410A-000 |
from US $0.80 |
||
|
12
|
12
36820-61A10-000
WIRE,SPOT LAMP
JLX |
36820-61A10-000 |
— | ||
|
13
|
13
36930-85C00-000
Tape, rr deffoger
JLX |
36930-85C00-000 |
— | ||
