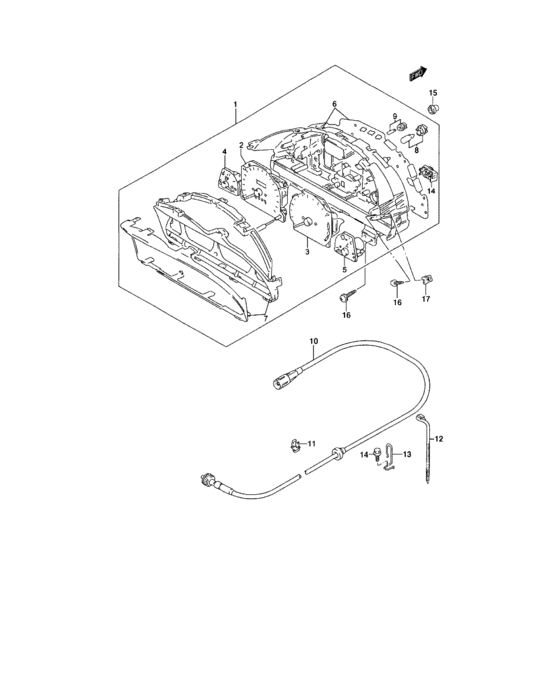

Speedometer assy, comb (SPEEDOMETER ASSY, COMB) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34101-85C50-000
Speedometer assy
N/ A/B |
34101-85C50-000 |
— | ||
|
1
|
1
34101-85C60-000
Speedometer assy
W/ A/B |
34101-85C60-000 |
— | ||
|
2
|
2
34120-85C00-000
Body assy, speedometer
|
34120-85C00-000 |
— | ||
|
3
|
3
34220-85C00-000
Body assy, tachometer
|
34220-85C00-000 |
— | ||
|
4
|
4
34320-85C00-000
Body assy, fuel meter
|
34320-85C00-000 |
— | ||
|
5
|
5
34420-85C00-000
Body assy, temp meter
|
34420-85C00-000 |
— | ||
|
6
|
6
34152-85C00-000
Speedometer case & printed,circuit
|
34152-85C00-000 |
— | ||
|
7
|
7
34112-85C00-000
Glass front and wind plate
|
34112-85C00-000 |
— | ||
|
8
|
8
34172-84C30-000
Bulb
12V, 3W |
34172-84C30-000 |
— | ||
|
9
|
9
34175-84C30-000
Bulb
12V, 1.2W |
34175-84C30-000 |
— | ||
|
10
|
10
34910-61A50-000
CABLE ASSY,SPEEDOMETER
|
34910-61A50-000 |
— | ||
|
11
|
11
09403-07308-000 CLAMPClamp |
09403-07308-000 |
from US $2.82 |
||
|
12
|
12
36990-85C01-000
Clamp
|
36990-85C01-000 |
— | ||
|
13
|
13
34926-60A00-000 CLAMP,SPEEDOMETER CABLE,NO.3 |
34926-60A00-000 |
US $9.12 |
||
|
14
|
14
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
16
|
16
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
17
|
17
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
