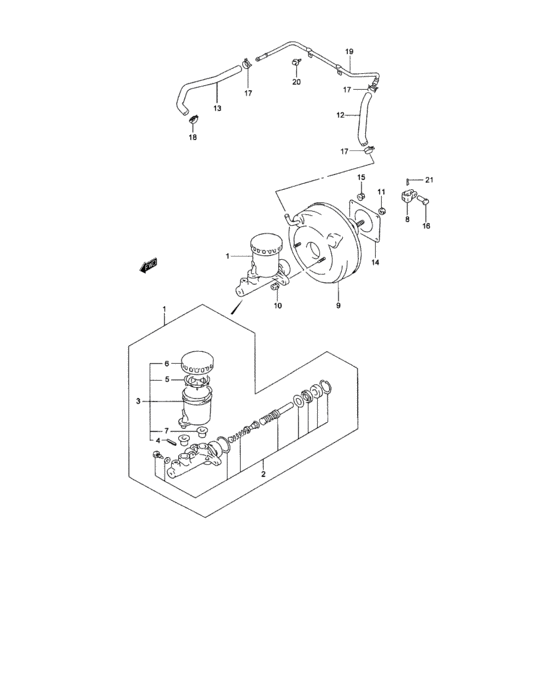

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-57B00-000
Cylinder assy,brake master
|
51100-57B00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-57B01-000
CYLINDER ASSY,BRAKE MASTER
|
51100-57B01-000 |
— | ||
|
2
|
2
51810-57B00-000
Repair set,brake master
|
51810-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-57B01-000 REPAIR SET,BRAKE MASTER |
51810-57B01-000 |
US $61.60 |
||
|
3
|
3
51200-77E01-000 RESERVOIR ASSY,MASTER CYLINDER |
51200-77E01-000 |
US $156.80 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45) |
09205-05003-000 |
US $1.76 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-77E00-000
BOOSTER ASSY,BRAKE MASTER
|
51300-77E00-000 |
— | ||
|
10
|
10
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
12
|
12
51020-58B00-000 HOSE,BRAKE VACUUM |
51020-58B00-000 |
US $56.67 |
||
|
13
|
13
51831-57B30-000
HOSE,BRAKE VACUUM INTAKE
|
51831-57B30-000 |
— | ||
| replacement | |||||
|
13
|
13
51831-57B10-000
Hose,brake vacuum intake
|
51831-57B10-000 |
— | ||
|
14
|
14
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
15
|
15
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
16
|
16
51811-85C00-000
Cylinder pin
|
51811-85C00-000 |
— | ||
|
17
|
17
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
18
|
18
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
19
|
19
51380-60A11-000 PIPE,BRAKE VACUUM |
51380-60A11-000 |
US $41.95 |
||
|
20
|
20
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
51812-85C00-000
Pin
|
51812-85C00-000 |
— | ||
