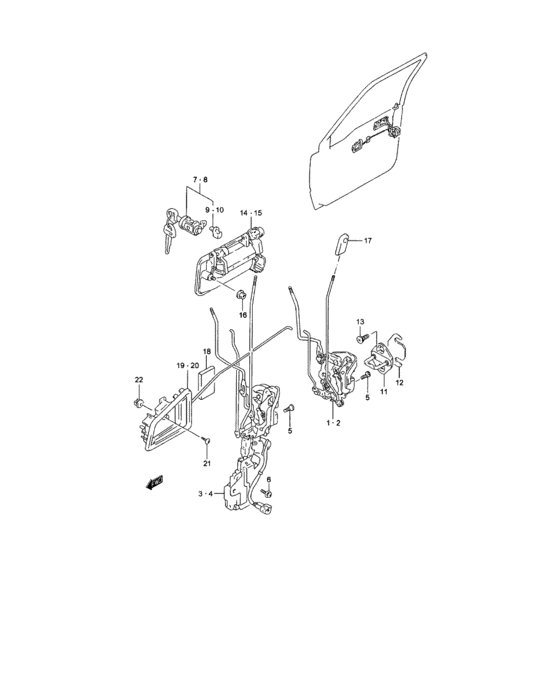

Fr dr lock (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-65A00-000 LATCH ASSY,FR DR,RJX |
82201-65A00-000 |
US $87.58 |
||
|
2
|
2
82202-65A00-000 LATCH ASSY,FR DR,LJX |
82202-65A00-000 |
US $182.40 |
||
|
3
|
3
82201-66A00-000 LATCH ASSY,FR DR,RJLX |
82201-66A00-000 |
US $358.80 |
||
|
4
|
4
82202-66A00-000 LATCH ASSY,FR DR,LJLX |
82202-66A00-000 |
US $358.80 |
||
|
5
|
5
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
6
|
6
02112-76123-000
Screw
JLX |
02112-76123-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-7612B-000 SCREWJLX |
02112-7612B-000 |
from US $0.96 |
||
|
7
|
7
82200-60831-000 CYLINDER,FR DR LOCK,R |
82200-60831-000 |
US $51.15 |
||
|
8
|
8
82200-60841-000 CYLINDER,FR DR LOCK,L |
82200-60841-000 |
US $76.80 |
||
|
9
|
9
82277-60A00-000 HOLDER |
82277-60A00-000 |
US $4.38 |
||
|
10
|
10
82287-60A00-000 HOLDER |
82287-60A00-000 |
US $1.60 |
||
|
11
|
11
82610-60A01-000 STRIKER,FR DOOR LATCH |
82610-60A01-000 |
US $21.60 |
||
|
12
|
12
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
13
|
13
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
14
|
14
82810-85C00-5PK
Handle, out rh
|
82810-85C00-5PK |
— | ||
|
15
|
15
82820-85C00-5PK
Handle, out lh
|
82820-85C00-5PK |
— | ||
|
16
|
16
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
17
|
17
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
|
82973-60A01-5PK |
— | ||
|
18
|
18
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
19
|
19
83110-85C00-T01
Handle, door inside rh
|
83110-85C00-T01 |
— | ||
|
20
|
20
83130-85C00-T01
Handle, door inside lh
|
83130-85C00-T01 |
— | ||
|
21
|
21
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
21
|
21
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
|
22
|
22
59981-85C00-000
Nut
|
59981-85C00-000 |
— | ||
