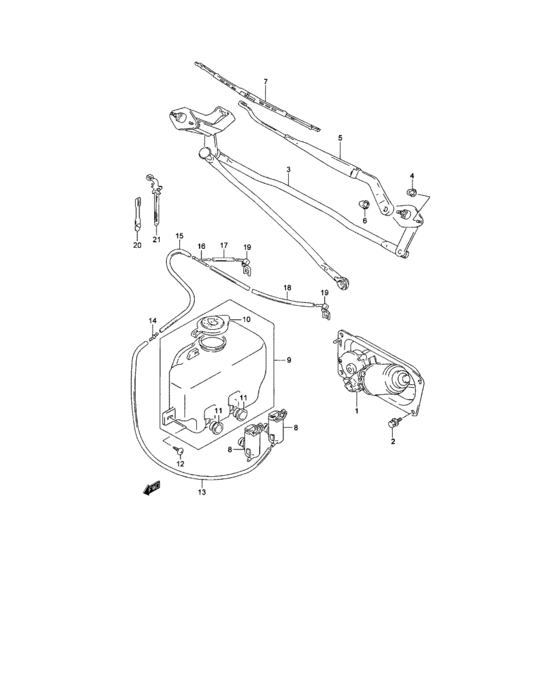

Fr windshield wiper (FR WINDSHIELD WIPER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-A60A4-000
Motor & bracket assy, wiper
|
38101-A60A4-000 |
— | ||
|
2
|
2
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
3
|
3
38102-85C40-000
Link assy, wiper
|
38102-85C40-000 |
— | ||
|
4
|
4
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
5
|
5
38310-85C00-000
Arm assy, wiper
|
38310-85C00-000 |
— | ||
|
6
|
6
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
6
|
6
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
6
|
6
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
7
|
7
38340-85C10-000
Blade assy, wiper
|
38340-85C10-000 |
— | ||
|
8
|
8
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
9
|
9
38450-60A00-000 TANK ASSY,WASHER |
38450-60A00-000 |
US $70.40 |
||
|
9
|
9
38450-61A00-000 TANK ASSY,WASHER |
38450-61A00-000 |
US $73.60 |
||
|
10
|
10
38452-80000-000
キャップ,ウォッシャタンク
|
38452-80000-000 |
— | ||
| replacement | |||||
|
10
|
10
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
from US $1.92 |
||
|
11
|
11
38453-75000-000 GROMMET |
38453-75000-000 |
US $1.60 |
||
|
12
|
12
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>340 |
38491-61A00-000 |
US $5.12 |
||
|
14
|
14
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $1.71 |
||
|
15
|
15
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>800 |
38491-61A00-000 |
US $5.12 |
||
|
16
|
16
38496-71311-000 CONNECTOR,THREE WAY |
38496-71311-000 |
US $4.16 |
||
|
17
|
17
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>70 |
38491-61A00-000 |
US $5.12 |
||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>650 |
38491-61A00-000 |
US $5.12 |
||
|
19
|
19
38480-60A01-000 NOZZLE,WASHER |
38480-60A01-000 |
US $24.80 |
||
|
20
|
20
09407-05403-000 CLAMP,L:88L:88 |
09407-05403-000 |
from US $0.91 |
||
|
21
|
21
09407-12404-000 CLAMP(L:140)L:140 |
09407-12404-000 |
US $2.08 |
||
