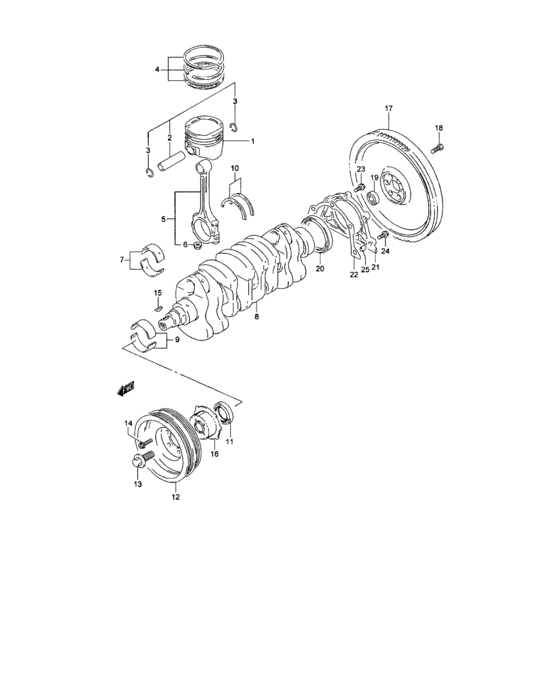

Crankshaft (CRANKSHAFT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-71820-0A0 PISTON SET,STD MARK 1STD, MARK 1 |
12100-71820-0A0 |
from US $70.11 |
||
|
1
|
1
12100-71820-0B0 PISTON SET,STD MARK 2STD, MARK 2 |
12100-71820-0B0 |
US $78.75 |
||
|
1
|
1
12100-71820-025
ピストンセット,OS:0.25
OS:0.25 |
12100-71820-025 |
— | ||
|
1
|
1
12100-71820-050 PISTON SET,OS:050OS:0.5 |
12100-71820-050 |
from US $68.96 |
||
|
2
|
2
12151-85C00-000
Pin, piston
|
12151-85C00-000 |
— | ||
|
3
|
3
12153-85C00-000
Snap ring
|
12153-85C00-000 |
— | ||
|
4
|
4
12140-60A50-000 RING SET,PISTONSTD |
12140-60A50-000 |
from US $59.13 |
||
|
4
|
4
12140-60A50-025
RING SET,PISTON OS:0.25
OS:0.25 |
12140-60A50-025 |
— | ||
|
4
|
4
12140-60A50-050
RING SET,PISTON OS:0.50
OS:0.5 |
12140-60A50-050 |
— | ||
|
5
|
5
12160-71C10-000
Connrod assy
|
12160-71C10-000 |
— | ||
|
6
|
6
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12100-60821-0A0
Bearing set, connrod
STD, T:1.5 |
12100-60821-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-0A0 BEARING SET,CONNRODSTD, T:1.5 |
12100-60822-0A0 |
from US $14.47 |
||
|
7
|
7
12100-60821-025
Bearing set, connrod (us:0.25)
US:0.25, T:1.625 |
12100-60821-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-025 BEARING SET,CONNROD US:025US:0.25, T:1.625 |
12100-60822-025 |
from US $16.34 |
||
|
8
|
8
12221-71C10-000
Crankshaft
|
12221-71C10-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-71C00-000 CRANKSHAFT |
12221-71C00-000 |
from US $607.07 |
||
|
9
|
9
12340-85C00-0A0
Bearing set, crankshaft
STD, T:2 |
12340-85C00-0A0 |
— | ||
|
9
|
9
12340-85C00-0B0
Bearing set, crankshaft
STD, T:2 |
12340-85C00-0B0 |
— | ||
|
9
|
9
12340-85C00-0C0
Bearing set, crankshaft
STD, T:2 |
12340-85C00-0C0 |
— | ||
|
9
|
9
12340-85C00-0D0
Bearing set, crankshaft
STD, T:2 |
12340-85C00-0D0 |
— | ||
|
9
|
9
12340-85C00-0E0
Bearing set, crankshaft
STD, T:2 |
12340-85C00-0E0 |
— | ||
|
9
|
9
12300-58810-0AA
ベアリングセット,カラー:レッド/グリーン
US:0.25, T:2.125 |
12300-58810-0AA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0CA BEARING SET,CRANK RED/GREENUS:0.25, T:2.125 |
12300-57820-0CA |
from US $21.69 |
||
|
9
|
9
12300-58820-0AA
ベアリングセット,カラー:レッド/グリーン
US:0.25, T:2.125 |
12300-58820-0AA |
— | ||
|
9
|
9
12300-60810-0BA
BEARING SET (COLOR:RED/BLACK)
US:0.25, T:2.125 |
12300-60810-0BA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0DA BEARING SET,CRANK RED/BLACKUS:0.25, T:2.125 |
12300-57820-0DA |
from US $19.26 |
||
|
9
|
9
12300-58820-0BA
Bearing set,crankshaft(us)
US:0.25, T:2.125 |
12300-58820-0BA |
— | ||
|
9
|
9
12300-60810-0CA
BEARING SET (COLOR:RED)
US:0.25, T:2.125 |
12300-60810-0CA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0EA BEARING SET,CRANK REDUS:0.25, T:2.125 |
12300-57820-0EA |
from US $19.73 |
||
|
9
|
9
12300-58820-0CA
ベアリングセット,カラー:レッド
US:0.25, T:2.125 |
12300-58820-0CA |
— | ||
|
9
|
9
12300-60810-0DA
BEARING SET (COLOR:RED/YELLOW)
US:0.25, T:2.125 |
12300-60810-0DA |
— | ||
| replacement | |||||
|
9
|
9
12300-58810-0DA BEARING SET,CRANK RED/YELLOWUS:0.25, T:2.125 |
12300-58810-0DA |
US $22.26 |
||
|
9
|
9
12300-60810-0EA
BEARING SET (COLOR:RED/BLUE)
US:0.25, T:2.125 |
12300-60810-0EA |
— | ||
| replacement | |||||
|
9
|
9
12300-58810-0EA BEARING SET,CRANK RED/BLUEUS:0.25, T:2.125 |
12300-58810-0EA |
US $22.26 |
||
|
10
|
10
12300-60820-000
Metal set,crank
STD, T: 2.5 |
12300-60820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUSTSTD, T: 2.5 |
12300-78890-000 |
from US $13.07 |
||
|
10
|
10
12300-60820-012
ベアリングセット,クランクスラスト
OS: 0.125, T: 2.563 |
12300-60820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST USOS: 0.125, T: 2.563 |
12300-78890-012 |
from US $12.96 |
||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
12
|
12
12610-85C00-000
Pulley, crankshaft
|
12610-85C00-000 |
— | ||
|
13
|
13
12619-53B01-000 BOLT,CRANK PULLEY |
12619-53B01-000 |
from US $7.47 |
||
|
14
|
14
09103-06185-000 BOLT(6X20)Bolt (6x20) 6X20 |
09103-06185-000 |
from US $1.10 |
||
|
15
|
15
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
17
|
17
12620-85C00-000
Flywheel assy
|
12620-85C00-000 |
— | ||
|
18
|
18
09103-10200-000
ボルト,10X18.5
10X18.5 |
09103-10200-000 |
— | ||
| replacements | |||||
|
18
|
18
09100-10275-000 BOLT(10X18.5)10X18.5 |
09100-10275-000 |
US $1.44 |
||
|
18
|
18
09103-10305-000 BOLT(10X18.5)10X18.5 |
09103-10305-000 |
US $22.40 |
||
|
19
|
19
12623-85C00-000
Bearing, input shaft
|
12623-85C00-000 |
— | ||
|
20
|
20
09283-68002-000 SEAL,OIL(68X86X8) |
09283-68002-000 |
from US $22.68 |
||
|
21
|
21
11341-85C00-000
Housing, oil seal
|
11341-85C00-000 |
— | ||
|
22
|
22
11349-85C00-000
Gasket
|
11349-85C00-000 |
— | ||
|
23
|
23
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
24
|
24
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
24
|
24
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
25
|
25
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
