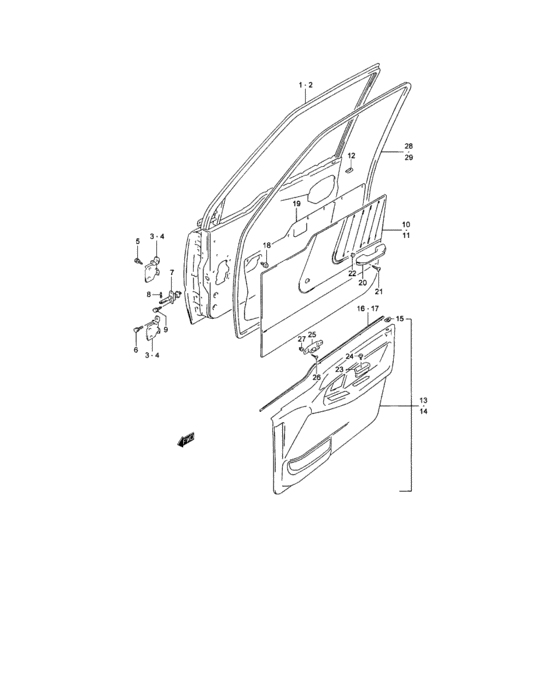

Fr dr panel (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-66A11-000
パネルアッシ,フロントドア,ライト
|
68001-66A11-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-66831-000 PANEL ASSY,FRONT DOOR,R |
68001-66831-000 |
US $1,764 |
||
|
1
|
1
68001-67A22-000
Panel assy, front door rh
W/ SPLASHGUARDS |
68001-67A22-000 |
— | ||
|
2
|
2
68002-66A11-000
パネルアッシ,フロントドア,レフト
|
68002-66A11-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-66831-000 PANEL ASSY,FRONT DOOR,L |
68002-66831-000 |
US $1,764 |
||
|
2
|
2
68002-67A22-000
Panel assy, front door lh
W/ SPLASHGUARDS |
68002-67A22-000 |
— | ||
|
3
|
3
69310-85C00-000
Hinge, door no.1, inferior l/i
|
69310-85C00-000 |
— | ||
|
4
|
4
69340-85C00-000
Hinge, door no.2, inferior l/d
|
69340-85C00-000 |
— | ||
|
5
|
5
01551-08253-000
Bolt
|
01551-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01551-0825A-000 BOLT |
01551-0825A-000 |
from US $1.12 |
||
|
6
|
6
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01500-06163-000
Bolt
|
01500-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
10
|
10
83710-60A10-T02 TRIM,FRONT DOOR,RJX |
83710-60A10-T02 |
US $154.56 |
||
|
11
|
11
83730-60A10-T02 TRIM,FRONT DOOR,LJX |
83730-60A10-T02 |
US $154.56 |
||
|
12
|
12
83795-60A00-T01
CAP,DR INSIDE LOCK KNOB
JX |
83795-60A00-T01 |
— | ||
|
13
|
13
83701-68A01-H8R
TRIM ASSY,FR DOOR,R
JLX ~VSEETV02CNA200711 |
83701-68A01-H8R |
— | ||
| replacement | |||||
|
13
|
13
83701-68A02-H8R
TRIM ASSY,FR DR,R
JLX ~VSEETV02CNA200711 |
83701-68A02-H8R |
— | ||
|
13
|
13
83701-68A01-HM4
TRIM ASSY,FR DOOR,R
JLX VSEETV02CNA200712~ |
83701-68A01-HM4 |
— | ||
|
14
|
14
83702-68A01-H8R
Trim assy,front door,l
JLX ~VSEETV02CNA200711 |
83702-68A01-H8R |
— | ||
| replacement | |||||
|
14
|
14
83702-68A02-H8R TRIM ASSY,FR DR,LJLX ~VSEETV02CNA200711 |
83702-68A02-H8R |
US $520.96 |
||
|
14
|
14
83702-68A01-HM4
Trim assy,front door,l
JLX VSEETV02CNA200712~ |
83702-68A01-HM4 |
— | ||
| replacement | |||||
|
14
|
14
83702-68A02-HM4
TRIM ASSY,FR DR,L
JLX VSEETV02CNA200712~ |
83702-68A02-HM4 |
— | ||
|
15
|
15
83723-61A00-T01 CAP,DR INSIDE LOCK KNOBJLX |
83723-61A00-T01 |
US $3.90 |
||
|
16
|
16
83721-61A00-000 WEATHERSTRIP,FR DR INR,RJLX |
83721-61A00-000 |
US $70.40 |
||
|
17
|
17
83741-61A00-000 WEATHERSTRIP,FR DR INR,LJLX |
83741-61A00-000 |
US $70.40 |
||
|
18
|
18
09409-08320-000 CLIPJX |
09409-08320-000 |
from US $1.15 |
||
|
19
|
19
83911-60X51-000
Cover, door sealing (600x1200)
AR (600X1200) |
83911-60X51-000 |
— | ||
| replacement | |||||
|
19
|
19
83911-60X52-000 COVER,DR SEALINGAR (600X1200) |
83911-60X52-000 |
US $6.06 |
||
|
20
|
20
84450-82000-T01
ARMREST,DR
JX |
84450-82000-T01 |
— | ||
|
21
|
21
03241-06253-000
スクリュ
JX |
03241-06253-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0625A-000 SCREWJX |
03241-0625A-000 |
from US $1.87 |
||
|
22
|
22
59981-85C00-000
Nut
JX |
59981-85C00-000 |
— | ||
|
23
|
23
84481-68A00-T01 CASE,DR INS PULL HANDLEJLX |
84481-68A00-T01 |
US $10.12 |
||
|
24
|
24
03141-04123-000
Screw
JLX |
03141-04123-000 |
— | ||
| replacement | |||||
|
24
|
24
03142-0412B-000 SCREWJLX |
03142-0412B-000 |
from US $0.80 |
||
|
25
|
25
84482-68A00-000 BRACKET,DR INSIDE PULL HANDLEJLX |
84482-68A00-000 |
US $7.65 |
||
|
26
|
26
03241-16163-000
Screw, front fender
JLX |
03241-16163-000 |
— | ||
| replacement | |||||
|
26
|
26
03241-1616B-000 SCREWJLX |
03241-1616B-000 |
US $13.60 |
||
|
27
|
27
59981-85C00-000
Nut
JLX |
59981-85C00-000 |
— | ||
|
28
|
28
84641-85C01-000
Weatherstrip, dr opening rh
|
84641-85C01-000 |
— | ||
|
29
|
29
84651-85C01-000
Weatherstrip, dr opening lh
|
84651-85C01-000 |
— | ||
