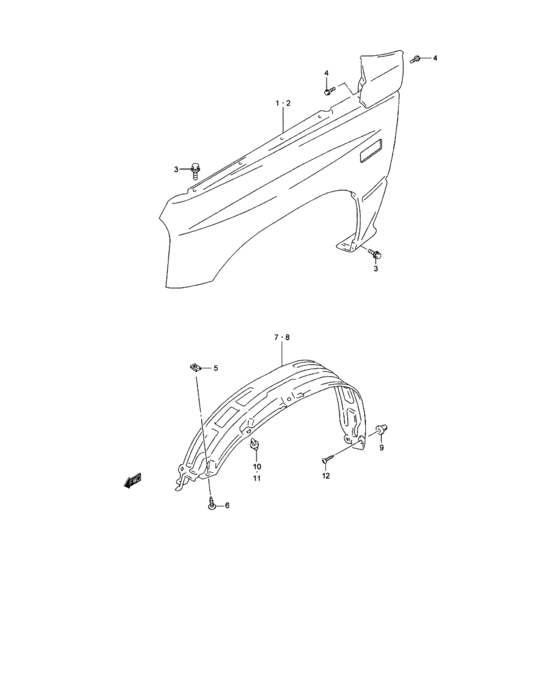

Front fender (FRONT FENDER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58600-60A21-000 PANEL ASSY,FR FENDER,RN/ SPLASHGUARDS |
58600-60A21-000 |
US $331.20 |
||
|
1
|
1
58600-66A10-000 PANEL ASSY,FR FENDER,RW/ SPLASHGUARDS |
58600-66A10-000 |
US $331.20 |
||
|
2
|
2
58800-60A21-000 PANEL ASSY,FR FENDER,LN/ SPLASHGUARDS |
58800-60A21-000 |
US $331.20 |
||
|
2
|
2
58800-66A10-000 PANEL ASSY,FR FENDER,LW/ SPLASHGUARDS |
58800-66A10-000 |
US $331.20 |
||
|
3
|
3
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
59911-85C00-000
Nut, front fender
|
59911-85C00-000 |
— | ||
|
6
|
6
03241-16163-000
Screw, front fender
|
03241-16163-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-1616B-000 SCREW |
03241-1616B-000 |
US $13.60 |
||
|
7
|
7
72481-85C00-000
Lining, front fender rh
|
72481-85C00-000 |
— | ||
|
8
|
8
72482-85C00-000
Lining, front fender lh
|
72482-85C00-000 |
— | ||
|
9
|
9
59981-85C00-000
Nut
|
59981-85C00-000 |
— | ||
|
10
|
10
59932-85C00-000
Clip
|
59932-85C00-000 |
— | ||
|
11
|
11
09409-08308-5ES CLIP(BLACK)W/ SPLASHGUARDS |
09409-08308-5ES |
from US $1.15 |
||
|
12
|
12
03242-06165-000
スクリュ
|
03242-06165-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
