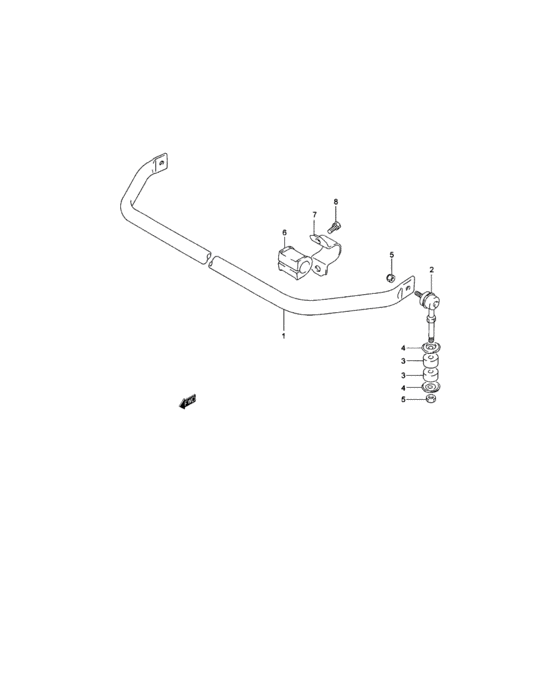

Front stabilizer (FRONT STABILIZER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-85C00-000
Bar, stabilizer front
|
42311-85C00-000 |
— | ||
|
2
|
2
42420-85C00-000
Joint
|
42420-85C00-000 |
— | ||
|
3
|
3
09320-10024-000 CUSHION |
09320-10024-000 |
from US $3.04 |
||
|
4
|
4
09165-10002-000 WASHER |
09165-10002-000 |
from US $2.08 |
||
|
5
|
5
42421-85C00-000
Nut
|
42421-85C00-000 |
— | ||
|
6
|
6
42412-85C00-000
Bushing, bar mount
|
42412-85C00-000 |
— | ||
|
7
|
7
42411-85C00-000
Bracket, bar mount
|
42411-85C00-000 |
— | ||
|
8
|
8
01500-08203-000
Bolt
8X20 |
01500-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 Bolt8X20 |
01500-0820A-000 |
from US $0.80 |
||
