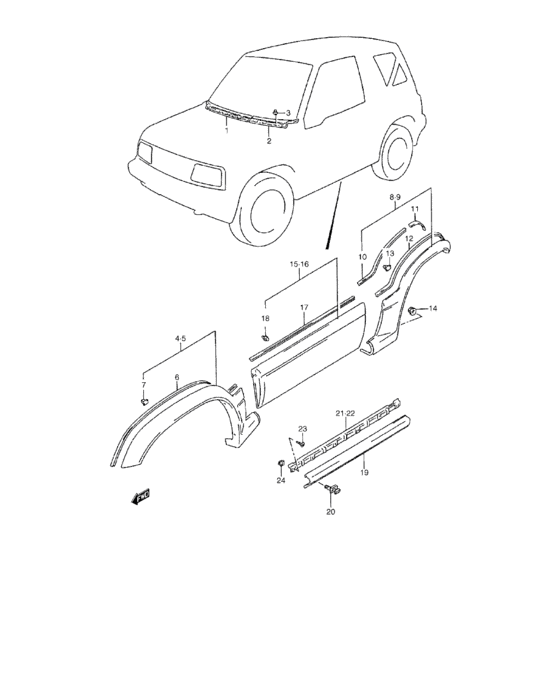

Garnish / splash guard (3DR:C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77311-60A00-000
Garnish, cowl ctr rh
|
77311-60A00-000 |
— | ||
|
2
|
2
77312-60A10-000
Garnish, cowl ctr lh
|
77312-60A10-000 |
— | ||
|
3
|
3
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
4
|
4
77531-66A00-000
GUARD,FENDER SPL,R
|
77531-66A00-000 |
— | ||
|
5
|
5
77631-66A00-000 GUARD,FENDER SPL,L |
77631-66A00-000 |
US $69.56 |
||
|
6
|
6
77611-77E01-1VN PROTECTOR,GUARD EDGE |
77611-77E01-1VN |
US $40.80 |
||
|
7
|
7
09409-10309-000 CLIP |
09409-10309-000 |
from US $1.22 |
||
|
8
|
8
77551-66A00-000
GUARD,RR SPL,R
|
77551-66A00-000 |
— | ||
|
9
|
9
77651-66A00-000
GUARD,RR SPL,L
|
77651-66A00-000 |
— | ||
|
10
|
10
77611-77E01-1VN PROTECTOR,GUARD EDGEL:1067>812 |
77611-77E01-1VN |
US $40.80 |
||
|
11
|
11
77611-77E01-1VN PROTECTOR,GUARD EDGEL:1067>88 |
77611-77E01-1VN |
US $40.80 |
||
|
12
|
12
77611-77E01-1VN PROTECTOR,GUARD EDGEL:1067>1038 |
77611-77E01-1VN |
US $40.80 |
||
|
13
|
13
09409-10309-000 CLIP |
09409-10309-000 |
from US $1.22 |
||
|
14
|
14
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
15
|
15
77561-78E00-000
GUARD,FR DR SPL,R
|
77561-78E00-000 |
— | ||
|
16
|
16
77661-78E00-000
GUARD,FR DR SPL,L
|
77661-78E00-000 |
— | ||
|
17
|
17
77611-77E01-1VN PROTECTOR,GUARD EDGE |
77611-77E01-1VN |
US $40.80 |
||
|
18
|
18
77259-71B00-000 CLIP |
77259-71B00-000 |
US $2.08 |
||
|
19
|
19
77536-85C00-000
Protector, ctr
|
77536-85C00-000 |
— | ||
|
20
|
20
77537-60A10-1VN CLIP,SILL SIDE PROTR |
77537-60A10-1VN |
US $3.35 |
||
|
21
|
21
77534-60A10-000 HOLDER,PROTECTOR CTR,R |
77534-60A10-000 |
US $80.80 |
||
|
22
|
22
77544-60A10-000 HOLDER,PROTECTOR CTR,L |
77544-60A10-000 |
US $69.17 |
||
|
23
|
23
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
24
|
24
59918-85C00-000
Nut, protector
|
59918-85C00-000 |
— | ||
