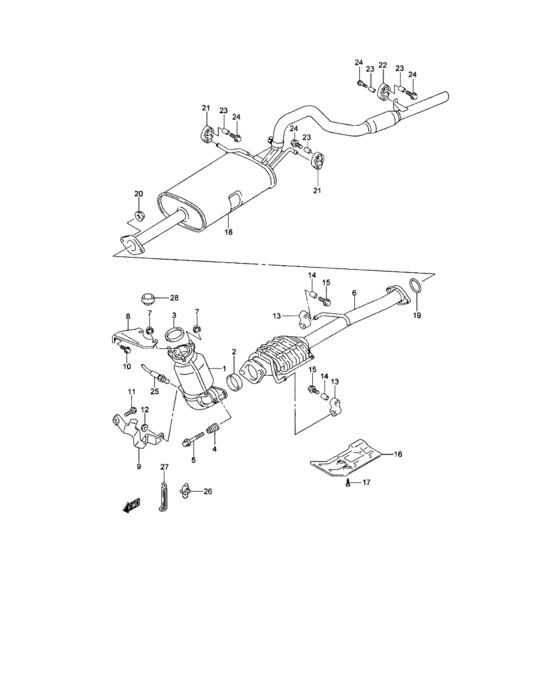

Muffler (MUFFLER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-58B70-000
PIPE,EXH NO.1
|
14190-58B70-000 |
— | ||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
3
|
3
14184-65D00-000 GASKET,EXH PIPE |
14184-65D00-000 |
from US $8.93 |
||
|
4
|
4
14492-85C00-000
Spring
|
14492-85C00-000 |
— | ||
|
5
|
5
14493-85C00-000
Bolt
|
14493-85C00-000 |
— | ||
|
6
|
6
14250-58B90-000
PIPE,EXH NO.2
|
14250-58B90-000 |
— | ||
|
7
|
7
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
8
|
8
14221-58B00-000
Bracket, exh pipe
|
14221-58B00-000 |
— | ||
|
9
|
9
14221-58B10-000
Bracket, exh pipe no.2
|
14221-58B10-000 |
— | ||
|
10
|
10
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
09103-10003-000
Bolt
|
09103-10003-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-100V0-000 BOLT(10X54) |
09103-100V0-000 |
US $27.20 |
||
|
12
|
12
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
14281-71C00-000
マウンチング,マフラ
|
14281-71C00-000 |
— | ||
| replacement | |||||
|
13
|
13
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
14
|
14
09180-A0812-900
Spacer, mtg
|
09180-A0812-900 |
— | ||
|
15
|
15
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
15
|
15
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
75511-60A10-000
Panel,heat protector,front
|
75511-60A10-000 |
— | ||
| replacement | |||||
|
16
|
16
75511-60A20-000 PANEL,HEAT PROTECTOR FRONT |
75511-60A20-000 |
US $13.76 |
||
|
17
|
17
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
18
|
18
14300-85C10-000
Muffler
3DR |
14300-85C10-000 |
— | ||
|
18
|
18
14300-85C20-000
Muffler
5DR |
14300-85C20-000 |
— | ||
|
19
|
19
14182-58B10-000 GASKET,MUFFLER |
14182-58B10-000 |
from US $4.79 |
||
|
20
|
20
14494-85C00-000
Nut
|
14494-85C00-000 |
— | ||
|
21
|
21
14281-58B00-000
マウンチング,マフラ
|
14281-58B00-000 |
— | ||
| replacement | |||||
|
21
|
21
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
22
|
22
14281-85C00-000
Mounting
|
14281-85C00-000 |
— | ||
|
23
|
23
09180-A0812-900
Spacer, mtg
|
09180-A0812-900 |
— | ||
|
24
|
24
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
24
|
24
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
25
|
25
18213-65D40-000
Sensor, oxygen lower
|
18213-65D40-000 |
— | ||
| replacement | |||||
|
25
|
25
18213-65D43-000
SENSOR,OXYGEN
|
18213-65D43-000 |
— | ||
|
26
|
26
18214-57B00-000 CLAMP |
18214-57B00-000 |
US $1.98 |
||
|
27
|
27
09403-08328-000 CLAMP |
09403-08328-000 |
US $21.70 |
||
|
28
|
28
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
