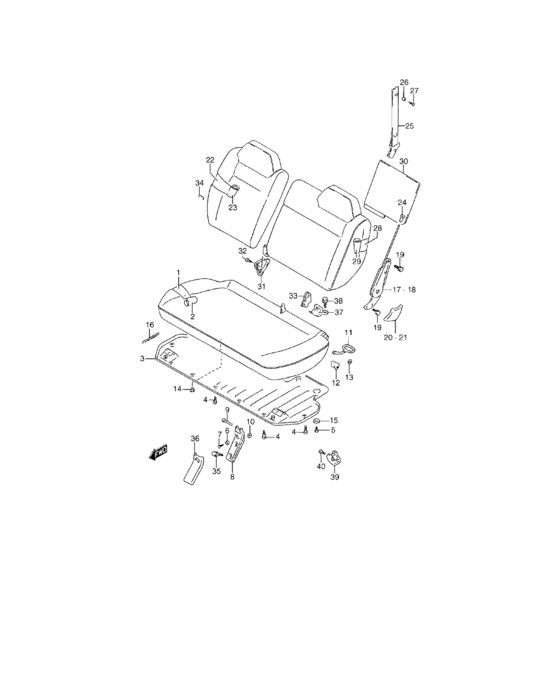

Rear seat (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-56BB1-000
CUSHION SUB ASSY,REAR SEAT
|
87105-56BB1-000 |
— | ||
|
2
|
2
87180-86C00-XT3
Cover, cushion
|
87180-86C00-XT3 |
— | ||
|
3
|
3
87191-56B11-T61 BOARD,RR SEAT CUSH UND |
87191-56B11-T61 |
US $253.92 |
||
|
4
|
4
87198-56B10-000
SCREW,REAR SEAT CUSHION BOARD
|
87198-56B10-000 |
— | ||
|
5
|
5
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
6
|
6
87196-83000-000 CUSHION |
87196-83000-000 |
US $3.09 |
||
|
7
|
7
03241-05103-000
Screw
|
03241-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
8
|
8
87250-56B10-000 MALE,RR SEAT HNG |
87250-56B10-000 |
US $18.03 |
||
|
9
|
9
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
10
|
10
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
10
|
10
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
11
|
11
87281-56B10-000
HANDLE,REAR SEAT LOCK
|
87281-56B10-000 |
— | ||
|
12
|
12
87199-56B10-000
PROTECTOR,RR SEAT LOCK HANDLE
|
87199-56B10-000 |
— | ||
|
13
|
13
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
13
|
13
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
14
|
14
87292-65C10-000 CUSHION,REAR SEAT |
87292-65C10-000 |
US $1.88 |
||
|
15
|
15
87292-60A40-000
Cushion, seat stopper
|
87292-60A40-000 |
— | ||
| replacement | |||||
|
15
|
15
87292-60A30-000
CUSHION,REAR SEAT STOPPER,NO.2
|
87292-60A30-000 |
— | ||
|
16
|
16
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
17
|
17
87210-56BH0-000 HINGE,RR SEAT BACK,R |
87210-56BH0-000 |
US $162.66 |
||
|
18
|
18
87610-56BH0-000 HINGE,RR SEAT BACK,L |
87610-56BH0-000 |
US $162.66 |
||
|
19
|
19
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
19
|
19
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
19
|
19
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
20
|
20
87221-56B11-5PK COVER,RR SEAT RECLINING LWR,R |
87221-56B11-5PK |
US $8.28 |
||
|
21
|
21
87621-56B11-5PK COVER,RR SEAT RECLINING LWR,L |
87621-56B11-5PK |
US $8.28 |
||
|
22
|
22
87305-86C00-000
Back sub assy, rh
|
87305-86C00-000 |
— | ||
|
23
|
23
87380-86C00-XT3
Cover, back rh
|
87380-86C00-XT3 |
— | ||
|
24
|
24
87211-60A10-T01 KNOB,RR SEAT RECLINING |
87211-60A10-T01 |
US $2.43 |
||
|
25
|
25
87270-56B20-000
BAND,RR SEAT STOPPER
|
87270-56B20-000 |
— | ||
|
26
|
26
87327-83000-000
COLLAR,SEAT STOPPER BAND
|
87327-83000-000 |
— | ||
|
27
|
27
59941-85C00-000
Screw
|
59941-85C00-000 |
— | ||
|
28
|
28
87306-86C00-000
Back sub assy, lh
|
87306-86C00-000 |
— | ||
|
29
|
29
87780-86C00-XT3
Cover, back lh
|
87780-86C00-XT3 |
— | ||
|
30
|
30
87789-56B11-000 BOARD,RR SEAT BACK UND |
87789-56B11-000 |
US $75.44 |
||
|
31
|
31
87399-56BF0-5PK COVER,RR SEAT INNER HINGE |
87399-56BF0-5PK |
US $10.05 |
||
|
32
|
32
87799-56B10-000 BUSH,RR SEAT INNER HINGE |
87799-56B10-000 |
US $4.60 |
||
|
33
|
33
87299-56B10-5PK PROTECTOR,RR CUSH INNER HINGE |
87299-56B10-5PK |
US $8.98 |
||
|
34
|
34
09387-86C00-000
Ring, trim
|
09387-86C00-000 |
— | ||
|
35
|
35
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
35
|
35
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
36
|
36
87264-56B10-T01 COVER,RR SEAT HINGE MALE |
87264-56B10-T01 |
US $12 |
||
|
37
|
37
87890-56B10-000 STRIKER,RR SEAT LOCK |
87890-56B10-000 |
US $20.98 |
||
|
38
|
38
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
38
|
38
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
39
|
39
87831-56B11-000 HANGER,RR SEAT STOPPER BAND |
87831-56B11-000 |
US $10.05 |
||
|
40
|
40
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
40
|
40
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
