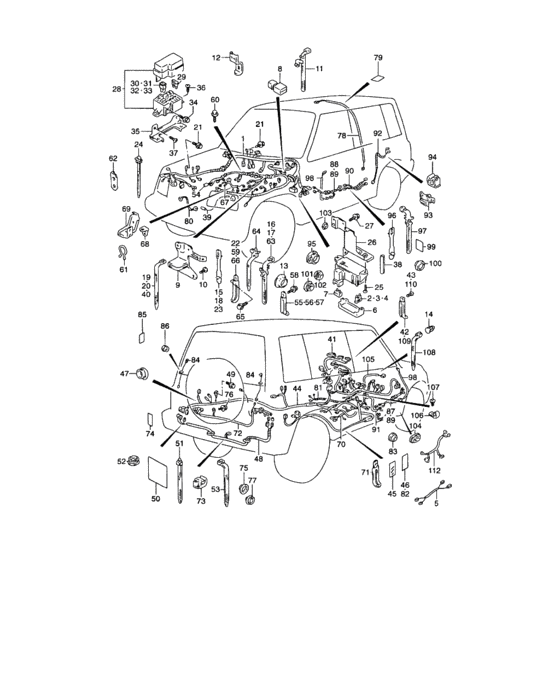

Wiring harness (WIRING HARNESS) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-70EF0-000
Harness assy, wiring main
|
36610-70EF0-000 |
— | ||
|
2
|
2
35155-00000-000
Fuse 10 a
10A |
35155-00000-000 |
— | ||
|
3
|
3
35156-00000-000
Fuse
15A |
35156-00000-000 |
— | ||
|
4
|
4
35157-00000-000
Fuse 20 a
20A |
35157-00000-000 |
— | ||
|
5
|
5
03541-05123-000
Screw
W/ A/B,W/ AIR CON |
03541-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0512B-000 SCREWW/ A/B,W/ AIR CON |
03541-0512B-000 |
from US $0.76 |
||
|
6
|
6
36717-60A11-000 COVER,FUSE BOX |
36717-60A11-000 |
US $8.83 |
||
|
7
|
7
36795-82000-000 BREAKER,POWER WINDOW |
36795-82000-000 |
US $24.84 |
||
|
8
|
8
33553-52E00-R00
Filter, noise suppressor
|
33553-52E00-R00 |
— | ||
|
9
|
9
36614-70E00-000 BRACKET,MAIN HARN |
36614-70E00-000 |
US $7.58 |
||
|
10
|
10
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
11
|
11
36990-56B00-000 CLAMP,HARN DASH PANEL |
36990-56B00-000 |
US $1.60 |
||
|
12
|
12
36996-70E00-000 PROTECTOR,MAIN HARNESS |
36996-70E00-000 |
US $2.72 |
||
|
13
|
13
09308-25002-000 GROMMET |
09308-25002-000 |
US $11.80 |
||
|
14
|
14
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
09407-12404-000 CLAMP(L:140)L:140 |
09407-12404-000 |
US $2.08 |
||
|
17
|
17
09407-12404-000 CLAMP(L:140)L:140 |
09407-12404-000 |
US $2.08 |
||
|
18
|
18
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
19
|
19
36990-85C01-000
Clamp
|
36990-85C01-000 |
— | ||
|
20
|
20
36990-85C01-000
Clamp
|
36990-85C01-000 |
— | ||
|
21
|
21
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
21
|
21
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
23
|
23
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
24
|
24
09407-17401-000
Clamp (l:150)
|
09407-17401-000 |
— | ||
| replacement | |||||
|
24
|
24
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
25
|
25
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
26
|
26
36735-77E04-000 BRACKET,FUSE BOX |
36735-77E04-000 |
US $19.32 |
||
|
27
|
27
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
28
|
28
36740-77E00-000 BOX ASSY,MAIN FUSE |
36740-77E00-000 |
US $93.84 |
||
|
29
|
29
35156-00000-000
Fuse
15A |
35156-00000-000 |
— | ||
|
30
|
30
09481-30203-000 FUSE(30A)30A |
09481-30203-000 |
US $13.92 |
||
|
31
|
31
09481-50203-000 FUSE(50A)50A |
09481-50203-000 |
US $15.36 |
||
|
32
|
32
09481-60202-000 FUSE(60A)60A |
09481-60202-000 |
from US $5.47 |
||
|
33
|
33
09481-80301-000 FUSE(80A)80A |
09481-80301-000 |
from US $5.74 |
||
|
34
|
34
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
35
|
35
36737-70E00-000 BRACKET,MAIN FUSE BOX |
36737-70E00-000 |
US $16.52 |
||
|
36
|
36
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
36
|
36
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
37
|
37
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
37
|
37
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
38
|
38
75957-77E00-000
Protector, fuse box
|
75957-77E00-000 |
— | ||
| replacement | |||||
|
38
|
38
75958-77E00-000 PROTECTOR,NO.4 |
75958-77E00-000 |
US $5.96 |
||
|
39
|
39
36955-60A00-000
ワイヤ,パワーステアリング
|
36955-60A00-000 |
— | ||
| replacement | |||||
|
39
|
39
36955-70E00-000 WIRE,POWER STEERING |
36955-70E00-000 |
US $5.70 |
||
|
40
|
40
36990-85C10-000
Clamp, wiper harness
|
36990-85C10-000 |
— | ||
|
41
|
41
36620-71E30-000
Harness, instrument panel
N/ A/B |
36620-71E30-000 |
— | ||
|
41
|
41
36620-71E50-000
Harness, instrument panel
W/ A/B |
36620-71E50-000 |
— | ||
|
42
|
42
09404-06427-000
クランプ,L:80
L:95 |
09404-06427-000 |
— | ||
| replacements | |||||
|
42
|
42
09404-06434-000
CLAMP(L:80 T:1.0)
L:95 |
09404-06434-000 |
— | ||
|
42
|
42
09404-06433-000
CLAMP(L:80)
L:95 |
09404-06433-000 |
— | ||
|
42
|
42
09404-06436-000 Clamp(L:80)L:95 |
09404-06436-000 |
from US $2.13 |
||
|
42
|
42
09404-06036-000 Clamp(L:80)L:95 |
09404-06036-000 |
from US $1.82 |
||
|
42
|
42
36990-85C20-000
Clamp, harness no. 1
L:80 |
36990-85C20-000 |
— | ||
|
43
|
43
03541-05163-000
Screw
L:16 |
03541-05163-000 |
— | ||
| replacement | |||||
|
43
|
43
03541-0516A-000 SCREWL:16 |
03541-0516A-000 |
from US $0.68 |
||
|
44
|
44
36630-71E00-000
HARNESS ASSY,WRG FLOOR
|
36630-71E00-000 |
— | ||
|
44
|
44
36630-77EQ0-000
Harness, wiring floor
3DR |
36630-77EQ0-000 |
— | ||
| replacement | |||||
|
44
|
44
36630-77ER0-000
Harness assy,wrg,floor
3DR |
36630-77ER0-000 |
— | ||
|
44
|
44
36630-73E20-000
Harness, wiring floor
5DR:JX |
36630-73E20-000 |
— | ||
|
44
|
44
36630-85F50-000
Harness, wiring floor
5DR:JLX |
36630-85F50-000 |
— | ||
| replacement | |||||
|
44
|
44
36630-85F30-000
Harness assy,wrg,floor
5DR:JLX |
36630-85F30-000 |
— | ||
|
45
|
45
36930-85C00-000
Tape, rr deffoger
5DR |
36930-85C00-000 |
— | ||
|
46
|
46
36930-85C00-000
Tape, rr deffoger
3DR |
36930-85C00-000 |
— | ||
|
47
|
47
09308-42001-000
GROMMET
3DR |
09308-42001-000 |
— | ||
|
48
|
48
36640-77E20-000 HARNESS ASSY,WRG RR LAMP |
36640-77E20-000 |
US $224.48 |
||
|
49
|
49
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
50
|
50
36930-85C10-000
Cover, harness
|
36930-85C10-000 |
— | ||
|
51
|
51
09407-11402-000 CLAMP(L:90)3DR |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
51
|
51
09407-17402-000 CLAMP3DR |
09407-17402-000 |
from US $1.98 |
||
|
52
|
52
09250-30002-000
キャップ,OD:30
|
09250-30002-000 |
— | ||
| replacement | |||||
|
52
|
52
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
53
|
53
36990-85C01-000
Clamp
3DR |
36990-85C01-000 |
— | ||
|
54
|
54
36650-71ED0-000
Harness assy, wiring engine
|
36650-71ED0-000 |
— | ||
|
55
|
55
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire L:80 |
09404-06429-000 |
from US $1.52 |
||
|
56
|
56
36990-85C20-000
Clamp, harness no. 1
L:95 |
36990-85C20-000 |
— | ||
|
57
|
57
36990-85C20-000
Clamp, harness no. 1
|
36990-85C20-000 |
— | ||
|
58
|
58
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
58
|
58
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
59
|
59
36990-85C30-000
Clamp, engine harness
|
36990-85C30-000 |
— | ||
|
60
|
60
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
60
|
60
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
60
|
60
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
61
|
61
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal |
09408-00024-000 |
from US $2.40 |
||
|
62
|
62
36651-51G00-000 BRACKET,ENG HARN |
36651-51G00-000 |
US $2.36 |
||
|
63
|
63
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
64
|
64
09407-12405-000
CLAMP
|
09407-12405-000 |
— | ||
|
65
|
65
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
65
|
65
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
66
|
66
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
67
|
67
36670-70E20-000 HARNESS ASSY,WRG INJ |
36670-70E20-000 |
US $105.25 |
||
|
68
|
68
36995-57B30-000 BRACKET,HARN |
36995-57B30-000 |
US $3.02 |
||
|
69
|
69
36995-70E20-000 BRACKET,ENG HARN |
36995-70E20-000 |
US $6.07 |
||
|
70
|
70
36660-61A00-000
Harness, wiring mission
|
36660-61A00-000 |
— | ||
|
71
|
71
36990-85C30-000
Clamp, engine harness
|
36990-85C30-000 |
— | ||
|
72
|
72
36845-85C21-000
Harness, back door
|
36845-85C21-000 |
— | ||
|
72
|
72
36843-56B00-000
Wire, back door no.1
HT |
36843-56B00-000 |
— | ||
| replacement | |||||
|
72
|
72
99000-990YB-H54
Wiring harness lower
HT |
99000-990YB-H54 |
— | ||
|
72
|
72
36842-85C00-000
Wire, back door no.2
HT |
36842-85C00-000 |
— | ||
|
72
|
72
36844-85C00-000
Wire, back door no.3
HT |
36844-85C00-000 |
— | ||
|
73
|
73
36667-60A00-000 CLAMP,DR LOCK WIRE |
36667-60A00-000 |
US $2.32 |
||
|
74
|
74
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
75
|
75
09308-28001-000 GROMMET |
09308-28001-000 |
US $21.30 |
||
|
75
|
75
09308-08007-000 GROMMETHT |
09308-08007-000 |
US $1.76 |
||
|
76
|
76
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
77
|
77
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
|
78
|
78
36820-B60A3-000
Wire, room lamp
|
36820-B60A3-000 |
— | ||
|
78
|
78
36820-56B00-000
WIRE,ROOM LAMP
5DR |
36820-56B00-000 |
— | ||
|
79
|
79
36930-85C00-000
Tape, rr deffoger
5DR |
36930-85C00-000 |
— | ||
|
80
|
80
39312-60A01-000
ワイヤ,ホーングランド
|
39312-60A01-000 |
— | ||
| replacement | |||||
|
80
|
80
39312-82012-000 WIRE,NOISE SUPPR |
39312-82012-000 |
US $9.76 |
||
|
81
|
81
36823-70E80-000
Wire, belt switch
3DR |
36823-70E80-000 |
— | ||
| replacement | |||||
|
81
|
81
36823-71E10-000
WIRE,BELT&PARK SW
3DR |
36823-71E10-000 |
— | ||
|
82
|
82
36930-85C00-000
Tape, rr deffoger
3DR |
36930-85C00-000 |
— | ||
|
83
|
83
36995-60A10-000 GROMMET,SIDE SIL3DR |
36995-60A10-000 |
US $1.91 |
||
|
84
|
84
36890-82000-000
ワイヤ,リヤデフォッガリード
|
36890-82000-000 |
— | ||
| replacement | |||||
|
84
|
84
36890-70C00-000 WIRE,RR DF LEAD |
36890-70C00-000 |
US $3.28 |
||
|
85
|
85
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
86
|
86
09308-03005-000 GROMMET |
09308-03005-000 |
US $12.90 |
||
|
87
|
87
36756-70E00-000 WIRE,WDO&MIRROR,R3DR:W/POWER WINDOW |
36756-70E00-000 |
US $98.62 |
||
|
88
|
88
36756-70E20-000
Wire, power wind./mirror rh
3DR:W/POWER WINDOW |
36756-70E20-000 |
— | ||
| replacement | |||||
|
88
|
88
36756-70E00-000 WIRE,WDO&MIRROR,R3DR:W/POWER WINDOW |
36756-70E00-000 |
US $98.62 |
||
|
89
|
89
36756-62A00-000 WIRE,WDO&MIRROR DRVR5DR:W/POWER WINDOW |
36756-62A00-000 |
US $113.34 |
||
|
90
|
90
36757-70E00-000 WIRE,DR SOLENOID&SW3DR:W/POWER WINDOW |
36757-70E00-000 |
US $58.14 |
||
|
90
|
90
36757-62A00-000
WIRE,DR SOL&SW
5DR:W/POWER WINDOW |
36757-62A00-000 |
— | ||
|
91
|
91
36757-70E20-000 WIRE,DR SOLENOID3DR:W/POWER WINDOW |
36757-70E20-000 |
US $45.63 |
||
|
91
|
91
36757-62A10-000 WIRE,DR SOL5DR:W/POWER WINDOW |
36757-62A10-000 |
US $62.93 |
||
|
92
|
92
36756-62A20-000 WIRE,RR DR5DR:W/POWER WINDOW |
36756-62A20-000 |
US $45.63 |
||
|
93
|
93
34935-56B00-000
CLAMP,RR DR LEAD WIRE
5DR:W/POWER WINDOW |
34935-56B00-000 |
— | ||
|
94
|
94
36667-60A00-000 CLAMP,DR LOCK WIRE5DR:W/POWER WINDOW |
36667-60A00-000 |
US $2.32 |
||
|
95
|
95
09308-40001-000 GROMMETW/ POWER WINDOW |
09308-40001-000 |
US $21.70 |
||
|
96
|
96
09407-05403-000 CLAMP,L:883DR:W/POWER WINDOW |
09407-05403-000 |
from US $0.91 |
||
|
97
|
97
09407-12404-000 CLAMP(L:140)W/ POWER WINDOW |
09407-12404-000 |
US $2.08 |
||
|
98
|
98
36753-60A00-000
Wire,mirrormot
W/ REMOCON MIRROR |
36753-60A00-000 |
— | ||
| replacement | |||||
|
98
|
98
36753-70E00-000 WIRE,MIRROR MOTORW/ REMOCON MIRROR |
36753-70E00-000 |
US $32.94 |
||
|
99
|
99
36757-82100-000 FILM,DR WIRE HOLEN/ REMOCON MIRROR |
36757-82100-000 |
US $1.03 |
||
|
100
|
100
09250-25008-000 CAP(OD:31)3DR:N/ REMOCON MIRROR |
09250-25008-000 |
US $13.20 |
||
|
101
|
101
09250-20014-000 CAP(OD:30)5DR:N/POWER WINDOW |
09250-20014-000 |
US $16.20 |
||
|
102
|
102
36757-56B00-000
CAP,WIRE HOLE FR DR BODY
5DR:N/ REMOCON MIRROR |
36757-56B00-000 |
— | ||
|
103
|
103
36757-56B10-000 CAP,WIRE CLAMP HOLE5DR:N/POWER WINDOW |
36757-56B10-000 |
US $1.73 |
||
|
104
|
104
09250-20017-000 PLUG(OD:20)Plug, lower cover |
09250-20017-000 |
US $11.40 |
||
|
105
|
105
36690-77E00-000
Harness assy,wrg,air bag
W/ A/B |
36690-77E00-000 |
— | ||
|
106
|
106
09403-14412-000
Clamp, harness
W/ A/B |
09403-14412-000 |
— | ||
| replacements | |||||
|
106
|
106
09403-14204-000
CLAMP
W/ A/B |
09403-14204-000 |
— | ||
|
106
|
106
09403-14415-000 ClampW/ A/B |
09403-14415-000 |
US $17.30 |
||
|
107
|
107
09137-06022-000
スクリュ
W/ A/B |
09137-06022-000 |
— | ||
| replacement | |||||
|
107
|
107
09137-06024-000 SCREW(6X18)W/ A/B |
09137-06024-000 |
US $1.28 |
||
|
108
|
108
36990-85C10-000
Clamp, wiper harness
W/ A/B |
36990-85C10-000 |
— | ||
|
109
|
109
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire W/ A/B,W/ AIR CON |
09404-06429-000 |
from US $1.52 |
||
