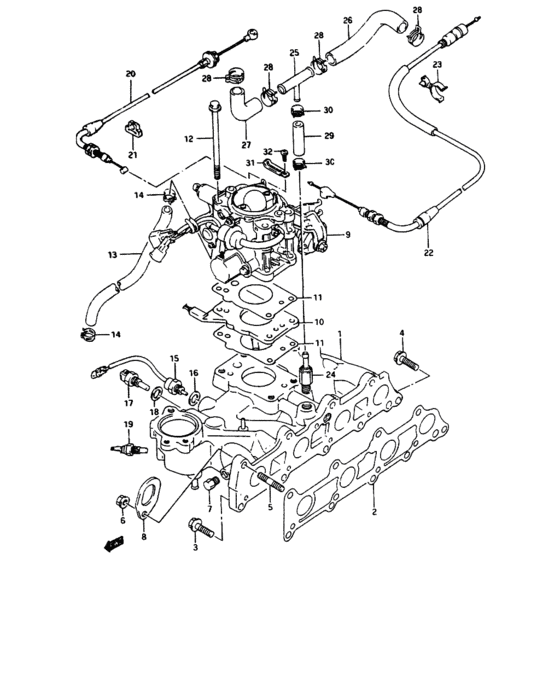

Intake manifold and throttle body first design (AT:89,90 MODEL FIRST DESIGN) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-61A12-000
マニホールド,インテーク
|
13110-61A12-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-61X50-000
MANIFOLD,INTK
|
13110-61X50-000 |
— | ||
|
1
|
1
13110-61A31-000
Manifold, intake
California |
13110-61A31-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-61X50-000
MANIFOLD,INTK
California |
13110-61X50-000 |
— | ||
|
2
|
2
13119-60A00-000 GASKET,INTK MANF |
13119-60A00-000 |
US $39.20 |
||
|
3
|
3
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
09246-04002-000
プラグ
|
09246-04002-000 |
— | ||
| replacement | |||||
|
7
|
7
09246-04005-000 PLUGPlug, cylinder head cover |
09246-04005-000 |
from US $2.72 |
||
|
8
|
8
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
8
|
8
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
13400-61A10-000
Body assy, throttle
|
13400-61A10-000 |
— | ||
|
9
|
9
13400-61A30-000
Body assy, throttle
California |
13400-61A30-000 |
— | ||
|
9
|
9
13400-61A70-000
Body assy,throttle
JS3TA01C K4116635~,JS3TA01V K4107866~,JS4TA01C K4116973~,JS4TA01V K4107814~ |
13400-61A70-000 |
— | ||
|
10
|
10
13120-61A01-000
HEATER,PTC
|
13120-61A01-000 |
— | ||
|
11
|
11
13421-61A00-000 GASKET,THROTTLE BODY |
13421-61A00-000 |
US $12.32 |
||
|
12
|
12
09103-08133-000 BOLT(8X105)Bolt, engine mounting (8x105) |
09103-08133-000 |
US $23.90 |
||
|
13
|
13
13492-61A00-000
Hose,water throt body,outlet
|
13492-61A00-000 |
— | ||
|
14
|
14
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
15
|
15
13650-61A00-000
センサ,インレットエアテンパレチャ
|
13650-61A00-000 |
— | ||
| replacement | |||||
|
15
|
15
13650-61A01-000
SENSOR,INLET AIR TEMP
|
13650-61A01-000 |
— | ||
|
16
|
16
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
17
|
17
13650-84101-000
Sensor,water Temp
|
13650-84101-000 |
— | ||
|
18
|
18
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
19
|
19
34850-82001-000
Gauge assy, water temperature
|
34850-82001-000 |
— | ||
| replacement | |||||
|
19
|
19
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
20
|
20
15910-61A10-000
CABLE ASSY,ACCEL
|
15910-61A10-000 |
— | ||
|
20
|
20
15910-61A30-000
Cable assy, accel
JS4TA01C K4116637~,JS4TA01V K4107814~ |
15910-61A30-000 |
— | ||
| replacements | |||||
|
20
|
20
15910-63A0V-000
CABLE ASSY,ACCEL
JS4TA01C K4116637~,JS4TA01V K4107814~ |
15910-63A0V-000 |
— | ||
|
20
|
20
15910-61A33-000
CABLE ASSY,ACCEL
JS4TA01C K4116637~,JS4TA01V K4107814~ |
15910-61A33-000 |
— | ||
|
21
|
21
15991-61A01-000
Clamp
|
15991-61A01-000 |
— | ||
| replacement | |||||
|
21
|
21
15991-61A02-000
CLAMP,ACCEL CABLE
|
15991-61A02-000 |
— | ||
|
22
|
22
15940-61A00-000
CABLE ASSY,KICK DOWN
|
15940-61A00-000 |
— | ||
|
23
|
23
09408-00110-000 CLAMP |
09408-00110-000 |
US $26.50 |
||
|
24
|
24
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
25
|
25
09367-14003-000
Reccord 3 voices
|
09367-14003-000 |
— | ||
| replacement | |||||
|
25
|
25
09367-14002-000 JOINT |
09367-14002-000 |
US $58.90 |
||
|
26
|
26
11191-61A00-000
HOSE,BREATHER
|
11191-61A00-000 |
— | ||
|
27
|
27
11193-85010-000
ホース,PCV
|
11193-85010-000 |
— | ||
| replacement | |||||
|
27
|
27
11192-76JA0-000 HOSE,BREATHER T/C INLET |
11192-76JA0-000 |
US $11.52 |
||
|
28
|
28
09401-18402-000 クリップ |
09401-18402-000 |
US $1.10 |
||
| replacement | |||||
|
28
|
28
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.37 |
||
|
29
|
29
09354-70153-300
ホース,ID:7 OD:15
|
09354-70153-300 |
— | ||
| replacement | |||||
|
29
|
29
09354-70153-600 HOSE(7X15X600) |
09354-70153-600 |
US $16.80 |
||
|
30
|
30
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
30
|
30
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
31
|
31
13446-61A00-000
クリップ
California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
13446-61A00-000 |
— | ||
| replacements | |||||
|
31
|
31
09404-06432-000
CLAMP(L:65)
California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
09404-06432-000 |
— | ||
|
31
|
31
09404-06402-000
Clamp, hose (l:60)
California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
09404-06402-000 |
— | ||
|
31
|
31
09404-06206-000
CLAMP(L:45)
California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
09404-06206-000 |
— | ||
|
31
|
31
09404-06039-000 Clamp(L:65)California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
09404-06039-000 |
from US $1.82 |
||
|
31
|
31
09404-06031-000 Clamp,rsvr Tank Ovfl HoseCalifornia,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
09404-06031-000 |
from US $1.37 |
||
|
32
|
32
02112-05083-000
Screw
California,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
02112-05083-000 |
— | ||
| replacement | |||||
|
32
|
32
02112-0508A-000 SCREWCalifornia,JS3TA01C K4107317~,JS4TA01C K4107317~,JS3TA01V K4104870~,JS4TA01V K4104870~ |
02112-0508A-000 |
from US $0.80 |
||
