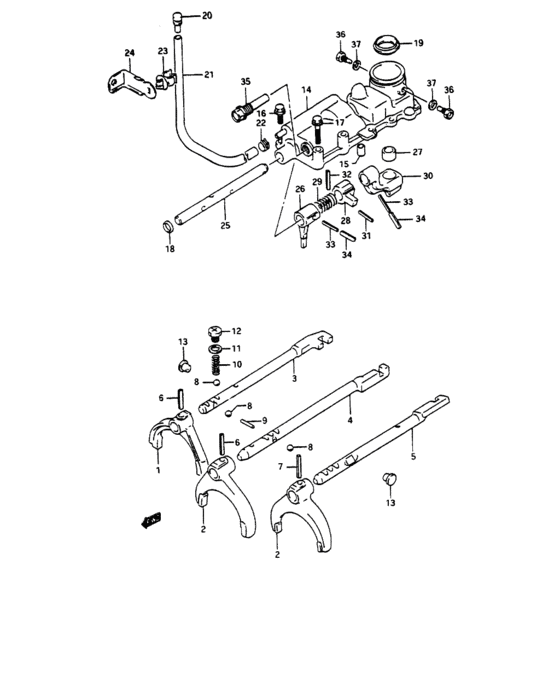

Gear shift fork (2WD:MT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-60A01-000
フォーク,ロースピードギヤシフト
|
25211-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-60A02-000 FORK,LOW SPEED GEAR SHF |
25211-60A02-000 |
US $61.46 |
||
|
2
|
2
25221-60A01-000
フォーク,ハイ/リバースギヤシフト
|
25221-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
25221-60A11-000 FORK,HIGH SPEED GR SHF |
25221-60A11-000 |
US $64.77 |
||
|
3
|
3
25410-60A00-000 SHAFT,LOW SPEED GEAR SHIFT |
25410-60A00-000 |
US $39.74 |
||
|
4
|
4
25420-60A00-000
シャフト,ハイスピードギヤシフト
|
25420-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
25420-60A10-000 SHAFT,HIGH SPEED GEAR SHIFT |
25420-60A10-000 |
US $45.26 |
||
|
5
|
5
25450-60A00-000 SHAFT,REVERSE GEAR SHIFT |
25450-60A00-000 |
US $41.95 |
||
|
6
|
6
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
7
|
7
09205-05016-000 PIN,SPRING(5X32) |
09205-05016-000 |
US $1.12 |
||
|
8
|
8
06111-12004-000 BALL |
06111-12004-000 |
from US $1.12 |
||
|
9
|
9
09261-03017-000 ROLLER(3X12.5) |
09261-03017-000 |
from US $0.91 |
||
|
10
|
10
25415-60A00-000 SPRING,GR SHF LOCATING |
25415-60A00-000 |
US $2.36 |
||
|
11
|
11
09168-12011-000 GASKET(12.1X19X1.5)Gasket, water plug (12x19x1.5) |
09168-12011-000 |
from US $2.53 |
||
|
12
|
12
09128-12001-000
ボルト,L:9
|
09128-12001-000 |
— | ||
| replacement | |||||
|
12
|
12
09248-12005-000 PLUG,M12 |
09248-12005-000 |
US $1.89 |
||
|
13
|
13
09250-10006-000 PLUG(OD:16)Plug, oil level gauge hole |
09250-10006-000 |
from US $1.67 |
||
|
14
|
14
25120-60A50-000 CASE,GEAR SHF LEVER |
25120-60A50-000 |
US $138.74 |
||
|
15
|
15
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
16
|
16
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
16
|
16
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
17
|
17
01517-08503-000
ボルト
|
01517-08503-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
17
|
17
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
18
|
18
09241-14002-000 PLUG(OD:14) |
09241-14002-000 |
US $17.30 |
||
|
19
|
19
28117-60A00-000 SEAT,GEAR SHF LEVER CASE |
28117-60A00-000 |
US $15.04 |
||
|
20
|
20
46543-60A00-000
プラグ,ブリーザ
|
46543-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
US $1.92 |
||
|
21
|
21
09354-70123-600
Hose, drain (l:600->90)
|
09354-70123-600 |
— | ||
| replacements | |||||
|
21
|
21
44421-12FR0-000 HOSE |
44421-12FR0-000 |
from US $16.64 |
||
|
21
|
21
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) |
09355-70125-600 |
from US $6.54 |
||
|
22
|
22
09401-11408-000
Clip
~JS3TA01C K4111198,~JS4TA01C K4111198,~JS3TA01V K4107100,~JS4TA01V K4107100 |
09401-11408-000 |
— | ||
| replacements | |||||
|
22
|
22
09401-11415-000 CLIP~JS3TA01C K4111198,~JS4TA01C K4111198,~JS3TA01V K4107100,~JS4TA01V K4107100 |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
09401-11407-000
CLIP
~JS3TA01C K4111198,~JS4TA01C K4111198,~JS3TA01V K4107100,~JS4TA01V K4107100 |
09401-11407-000 |
— | ||
|
23
|
23
09403-12314-000 CLAMP |
09403-12314-000 |
US $17.30 |
||
|
24
|
24
24831-60A00-000
ブラケット,ホースクランプ
|
24831-60A00-000 |
— | ||
| replacement | |||||
|
24
|
24
24831-57B00-000
BRACKET,BREATHER HOSE CLAMP
|
24831-57B00-000 |
— | ||
|
25
|
25
25521-60A11-000 SHAFT,GEAR SHIFT<-25521-60A01 |
25521-60A11-000 |
US $31.46 |
||
|
26
|
26
25541-60A02-000
レバー,ギヤシフト
|
25541-60A02-000 |
— | ||
| replacement | |||||
|
26
|
26
25541-60A03-000 LEVER,GEAR SHF |
25541-60A03-000 |
US $27.60 |
||
|
27
|
27
25551-60A01-000
ブッシュ,ギヤコントロールレバー
|
25551-60A01-000 |
— | ||
| replacement | |||||
|
27
|
27
25551-60A02-000 BUSH,GEAR CONT LEVER |
25551-60A02-000 |
US $2.40 |
||
|
28
|
28
25271-60A01-000 YOKE,REV GEAR SHIFT LIM |
25271-60A01-000 |
US $23 |
||
|
29
|
29
09448-18019-000 SPRING |
09448-18019-000 |
US $28.30 |
||
|
30
|
30
25531-60A50-000 ARM,GEAR SHIFT |
25531-60A50-000 |
US $40.11 |
||
|
31
|
31
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
32
|
32
09205-05017-000
スプリングピン
|
09205-05017-000 |
— | ||
| replacement | |||||
|
32
|
32
09205-05015-000 PIN,SPRING(5X20) |
09205-05015-000 |
US $12.90 |
||
|
33
|
33
09205-03037-000 PIN,SPRING(3X25) |
09205-03037-000 |
US $1.12 |
||
|
34
|
34
09205-06016-000 PIN,SPRING(6X25) |
09205-06016-000 |
US $12.50 |
||
| replacement | |||||
|
34
|
34
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.60 |
||
|
35
|
35
25281-60A01-000
ボルト,リバースギヤシフトリミット
<-25281-60A00 |
25281-60A01-000 |
— | ||
| replacement | |||||
|
35
|
35
25281-60A10-000 BOLT,REV GEAR SHF LIM<-25281-60A00 |
25281-60A10-000 |
US $9.13 |
||
|
36
|
36
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
37
|
37
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
37
|
37
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
37
|
37
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
