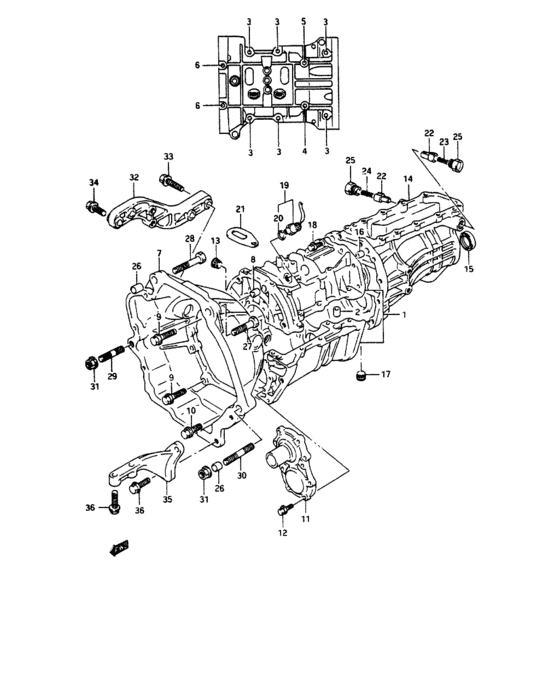

Transmission case (2WD:MT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-60A60-000
Case assy, transmission
90 MODEL: |
24700-60A60-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-60A91-000
Case assy,transmission
90 MODEL: |
24700-60A91-000 |
— | ||
|
1
|
1
24700-60A50-000
Case assy, transmission
90 MODEL:California |
24700-60A50-000 |
— | ||
| replacements | |||||
|
1
|
1
24700-60A91-000
Case assy,transmission
90 MODEL:California |
24700-60A91-000 |
— | ||
|
1
|
1
09166-20013-000 WASHER90 MODEL:California |
09166-20013-000 |
US $44.90 |
||
|
1
|
1
09262-30097-000 BEARING(30X65X19)90 MODEL:California |
09262-30097-000 |
US $37.25 |
||
|
1
|
1
09390-65007-000 C RING90 MODEL:California |
09390-65007-000 |
from US $1.76 |
||
|
1
|
1
24551-65D00-000 SHAFT,T/M REVERSE GEAR90 MODEL:California |
24551-65D00-000 |
US $75.81 |
||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
3
|
3
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01537-08953-000
ボルト
|
01537-08953-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0895B-000 BoltBolt, crankcase (8x95) |
01550-0895B-000 |
US $24.70 |
||
|
5
|
5
09103-08134-000 BOLT(8X110)Bolt, collector no.1 |
09103-08134-000 |
from US $1.82 |
||
|
6
|
6
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
US $2.24 |
||
|
7
|
7
21341-60A01-000
ハウジング,クラッチ
90 MODEL |
21341-60A01-000 |
— | ||
| replacements | |||||
|
7
|
7
21341-77E00-000
HOUSING,CLUTCH
90 MODEL |
21341-77E00-000 |
— | ||
|
7
|
7
09108-12006-000 BOLT,STUD90 MODEL |
09108-12006-000 |
US $28 |
||
|
7
|
7
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.190 MODEL |
23264-60A00-000 |
US $7.84 |
||
|
7
|
7
23264-60A10-000 BUSH,CLUTCH RLSE SHAFT NO.290 MODEL |
23264-60A10-000 |
US $4.71 |
||
|
7
|
7
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.290 MODEL |
23264-60A20-000 |
US $9.60 |
||
|
7
|
7
09108-12012-000 BOLT,STUD90 MODEL |
09108-12012-000 |
from US $2.50 |
||
|
7
|
7
09108-12007-000
Bolt,stud
90 MODEL |
09108-12007-000 |
— | ||
|
7
|
7
21341-56B00-000
ハウジング,クラッチ
91 MODEL |
21341-56B00-000 |
— | ||
| replacements | |||||
|
7
|
7
21341-77E00-000
HOUSING,CLUTCH
91 MODEL |
21341-77E00-000 |
— | ||
|
7
|
7
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.191 MODEL |
23264-60A00-000 |
US $7.84 |
||
|
7
|
7
23264-60A10-000 BUSH,CLUTCH RLSE SHAFT NO.291 MODEL |
23264-60A10-000 |
US $4.71 |
||
|
7
|
7
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.291 MODEL |
23264-60A20-000 |
US $9.60 |
||
|
8
|
8
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
8
|
8
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
9
|
9
01537-10403-000 ボルト |
01537-10403-000 |
US $2.05 |
||
| replacements | |||||
|
9
|
9
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
|
9
|
9
01550-1040B-000 BOLT |
01550-1040B-000 |
from US $3.74 |
||
|
10
|
10
01517-10506-000
New Genuine Part
|
01517-10506-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
10
|
10
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
11
|
11
24741-60A01-000 RETAINER,INPUT SFT BEARING |
24741-60A01-000 |
US $109.60 |
||
|
12
|
12
09103-08245-000
ボルト,8X30
|
09103-08245-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
13
|
13
09246-16009-000
プラグ
|
09246-16009-000 |
— | ||
| replacements | |||||
|
13
|
13
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
13
|
13
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
14
|
14
24770-60A50-000
CASE,EXTENTION
|
24770-60A50-000 |
— | ||
|
15
|
15
24780-60A50-000
SEAL,EXTENSION CASE OIL
|
24780-60A50-000 |
— | ||
|
16
|
16
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
16
|
16
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
17
|
17
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
18
|
18
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
18
|
18
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
19
|
19
37610-60A01-000
Switch assy, back up,top
90 MODEL:,<-37610-60A00 |
37610-60A01-000 |
— | ||
| replacement | |||||
|
19
|
19
37610-83001-000 SWITCH ASSY,BACK UP LAMP90 MODEL:,<-37610-60A00 |
37610-83001-000 |
from US $24.19 |
||
|
20
|
20
09280-11002-000 O RING(D:1.9,ID:11.4)90 MODEL: |
09280-11002-000 |
from US $0.88 |
||
|
21
|
21
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
21
|
21
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
22
|
22
25341-60A50-000 PIN,SELECT GUIDE |
25341-60A50-000 |
US $9.90 |
||
|
23
|
23
09440-10037-000 SPRING |
09440-10037-000 |
US $25.40 |
||
|
24
|
24
09440-10036-000 SPRING |
09440-10036-000 |
US $25.40 |
||
|
25
|
25
09247-18006-000 PLUG |
09247-18006-000 |
US $61.80 |
||
|
26
|
26
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
27
|
27
01537-12503-000
ボルト
90 MODEL |
01537-12503-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1250A-000 Bolt90 MODEL |
01550-1250A-000 |
US $21.70 |
||
|
27
|
27
01517-12653-000
Bolt
91 MDOEL |
01517-12653-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1265B-000 Bolt91 MDOEL |
01550-1265B-000 |
US $1.76 |
||
|
28
|
28
01537-12603-000
ボルト
90 MODEL |
01537-12603-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1260A-000 Bolt90 MODEL |
01550-1260A-000 |
US $24.70 |
||
|
28
|
28
01517-12753-000
ボルト
91 MODEL |
01517-12753-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1275A-000 BOLT91 MODEL |
01550-1275A-000 |
US $1.92 |
||
|
29
|
29
09108-12006-000 BOLT,STUD |
09108-12006-000 |
US $28 |
||
|
30
|
30
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
|
31
|
31
08316-16123-000 Nut |
08316-16123-000 |
US $1.30 |
||
| replacement | |||||
|
31
|
31
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
32
|
32
24792-56B00-000
スチフナ,ケース,ライト
91 MODEL |
24792-56B00-000 |
— | ||
| replacements | |||||
|
32
|
32
24790-56B10-000 STIFFENER,CASE,R91 MODEL |
24790-56B10-000 |
US $56.80 |
||
|
32
|
32
01550-1020A-000 BOLTBolt, bal sprocket 91 MODEL |
01550-1020A-000 |
from US $0.96 |
||
|
32
|
32
01550-10203-000
Bolt
91 MODEL |
01550-10203-000 |
— | ||
|
33
|
33
01517-10406-000
Bolt, no.1
91 MODEL |
01517-10406-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-1040A-000 BOLT91 MODEL |
01550-1040A-000 |
from US $1.12 |
||
|
33
|
33
01550-1040B-000 BOLT91 MODEL |
01550-1040B-000 |
from US $3.74 |
||
|
34
|
34
01537-10353-000
Bolt
91 MODEL |
01537-10353-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-1035A-000 BOLTBolt, fr fork upper 91 MODEL |
01550-1035A-000 |
from US $5.68 |
||
|
35
|
35
24791-56B00-000
スチフナ,ケース,レフト
91 MODEL |
24791-56B00-000 |
— | ||
| replacement | |||||
|
35
|
35
24791-56B20-000 STIFFENER,BLOCK&T/M CASE,L91 MODEL |
24791-56B20-000 |
US $91.26 |
||
|
36
|
36
01537-10353-000
Bolt
91 MODEL |
01537-10353-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-1035A-000 BOLTBolt, fr fork upper 91 MODEL |
01550-1035A-000 |
from US $5.68 |
||
