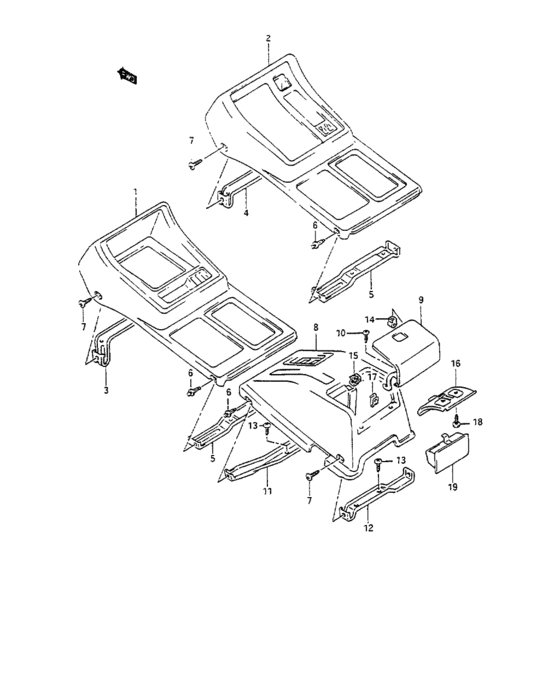

Console box (CONSOLE BOX) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73911-60A00-5ER
Box, ctr console fr
89 MODEL:MT |
73911-60A00-5ER |
— | ||
| replacement | |||||
|
1
|
1
73911-60A30-5ER BOX,CENTER CONSOLE89 MODEL:MT |
73911-60A30-5ER |
US $45.95 |
||
|
1
|
1
73911-60A00-5ES
ボックス,センタコンソールフロント(ブラック)
89 MODEL,90 MODEL,91 MODEL:MT |
73911-60A00-5ES |
— | ||
| replacement | |||||
|
1
|
1
73911-60A30-5ES
BOX,CENTER CONSOLE
89 MODEL,90 MODEL,91 MODEL:MT |
73911-60A30-5ES |
— | ||
|
3
|
3
73931-60A00-000 BRACKET,CTR CONSOLE FR NO.1MT |
73931-60A00-000 |
US $10.52 |
||
|
5
|
5
73932-60A00-000
BRACKET,CTR CONSOLE FR NO.2
89 MODEL,90 MODEL:2DR |
73932-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
73932-60A10-000 BRACKET,CTR CONSOLE FR NO.289 MODEL,90 MODEL:2DR |
73932-60A10-000 |
US $16.80 |
||
|
5
|
5
73932-60A10-000 BRACKET,CTR CONSOLE FR NO.291 MODEL:2DR |
73932-60A10-000 |
US $16.80 |
||
|
6
|
6
09409-06314-000 Clip2DR:JA, JX |
09409-06314-000 |
from US $2.25 |
||
| replacement | |||||
|
6
|
6
09409-06314-5PK CLIP(BLACK)2DR:JA, JX |
09409-06314-5PK |
from US $1.46 |
||
|
7
|
7
03242-05124-000
Screw
2DR:JA, JX |
03242-05124-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0512A-000 SCREW2DR:JA, JX |
03241-0512A-000 |
from US $0.68 |
||
|
8
|
8
73921-60A00-5ER
Box, ctr console rear
89 MODEL:JLX |
73921-60A00-5ER |
— | ||
| replacement | |||||
|
8
|
8
73921-60A10-5ER
Box, ctr console rear
89 MODEL:JLX |
73921-60A10-5ER |
— | ||
|
8
|
8
73921-60A00-5ES
ボックス,センタコンソール,リヤ(ブラック)
89 MODEL,90 MODEL,91 MODEL:JLX |
73921-60A00-5ES |
— | ||
| replacement | |||||
|
8
|
8
73921-60A10-5ES
BOX,CENTER CONSOLE RR
89 MODEL,90 MODEL,91 MODEL:JLX |
73921-60A10-5ES |
— | ||
|
8
|
8
73921-56B00-5ES
BOX,CENTER CONSOLE RR
4DR |
73921-56B00-5ES |
— | ||
|
9
|
9
73922-60A00-5ER
Lid, ctr console rear
89 MODEL:JLX |
73922-60A00-5ER |
— | ||
| replacement | |||||
|
9
|
9
73922-60A10-5ER
LID,CTR CONSOLE
89 MODEL:JLX |
73922-60A10-5ER |
— | ||
|
9
|
9
73922-60A00-5ES
リッド,センタコンソール,リヤ(ブラック)
89 MODEL,90 MODEL,91 MODEL:JLX |
73922-60A00-5ES |
— | ||
| replacement | |||||
|
9
|
9
73922-60A10-5ES
LID,CTR CONSOLE RR
89 MODEL,90 MODEL,91 MODEL:JLX |
73922-60A10-5ES |
— | ||
|
9
|
9
73922-56B00-5ES
LID,CTR CONSOLE RR
4DR |
73922-56B00-5ES |
— | ||
|
10
|
10
03541-05165-000
Screw
2DR:JLX |
03541-05165-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0516A-000 SCREW2DR:JLX |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
73933-60A00-000
BRACKET,CTR CONSOLE RR NO.1
2DR:JLX |
73933-60A00-000 |
— | ||
|
11
|
11
73933-56B00-000 BRACKET,CTR CONSOLE RR NO.14DR |
73933-56B00-000 |
US $16.80 |
||
|
12
|
12
73934-60A00-000 BRACKET,CTR CONSOLE RR NO.22DR:JLX |
73934-60A00-000 |
US $10.40 |
||
|
13
|
13
03241-06123-000
Screw
2DR:JLX |
03241-06123-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0612A-000 SCREW2DR:JLX |
03241-0612A-000 |
US $0.80 |
||
|
14
|
14
73164-50A00-000 CUSHION,CTR BOXJLX |
73164-50A00-000 |
US $2.24 |
||
|
15
|
15
73170-50A00-000 LOCK,I/P CTR BOXLock, lid JLX |
73170-50A00-000 |
from US $10.40 |
||
|
16
|
16
73923-56B00-000 GUIDE,ASHTRAY4DR |
73923-56B00-000 |
US $12.07 |
||
|
17
|
17
09148-05004-000 NUT4DR |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
17
|
17
09148-05013-000 NUT4DR |
09148-05013-000 |
from US $0.91 |
||
|
18
|
18
03541-05165-000
Screw
4DR |
03541-05165-000 |
— | ||
| replacement | |||||
|
18
|
18
03541-0516A-000 SCREW4DR |
03541-0516A-000 |
from US $0.68 |
||
|
19
|
19
89820-56B00-000
Ashtray, rear
4DR |
89820-56B00-000 |
— | ||
| replacement | |||||
|
19
|
19
89820-56B00-5ES
ASHTRAY,RR
4DR |
89820-56B00-5ES |
— | ||
