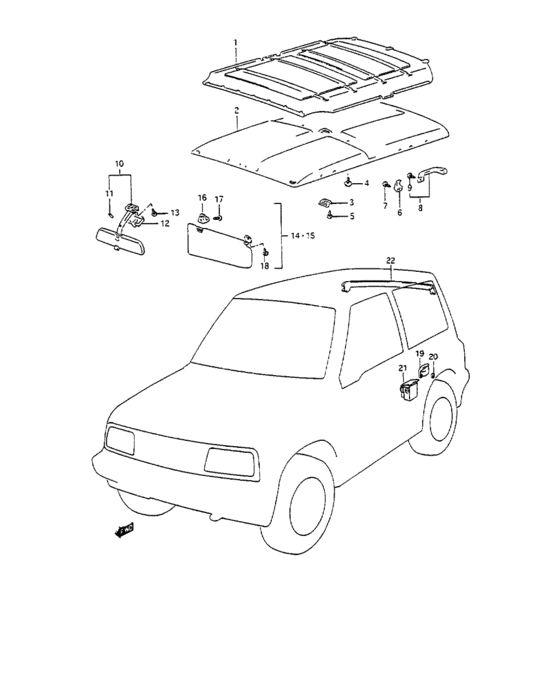

Headlining and sunshade (2DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-61A00-5ET
Headlining assy, roof
89 MODEL:JX |
78110-61A00-5ET |
— | ||
| replacement | |||||
|
1
|
1
78110-61A00-5EF HEADLINING ASSY,ROOF89 MODEL:JX |
78110-61A00-5EF |
US $268.64 |
||
|
1
|
1
78110-61A00-5EF HEADLINING ASSY,ROOF89 MODEL,90 MODEL:JX |
78110-61A00-5EF |
US $268.64 |
||
|
2
|
2
78110-61A30-5EU
Headlining assy, roof
89 MODEL:JLX |
78110-61A30-5EU |
— | ||
| replacement | |||||
|
2
|
2
78110-61A50-5EG
HEADLINING ASSY,ROOF
89 MODEL:JLX |
78110-61A50-5EG |
— | ||
|
2
|
2
78110-61A30-5EG
ヘッドライニングアッシ,ルーフ(グレー)
89 MODEL,90 MODEL:JLX |
78110-61A30-5EG |
— | ||
| replacement | |||||
|
2
|
2
78110-61A50-5EG
HEADLINING ASSY,ROOF
89 MODEL,90 MODEL:JLX |
78110-61A50-5EG |
— | ||
|
3
|
3
78121-61A00-000 SPACER,ROOM LAMPJLX |
78121-61A00-000 |
US $3.53 |
||
|
4
|
4
09409-06310-5EV
Clip(brown)
89 MODEL:JLX |
09409-06310-5EV |
— | ||
|
4
|
4
09409-06310-5EH CLIP(GRAY)89 MODEL,90 MODEL:JLX |
09409-06310-5EH |
US $17.30 |
||
|
5
|
5
03241-05126-000
スクリュ
JLX |
03241-05126-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0512A-000 SCREWJLX |
03241-0512A-000 |
from US $0.68 |
||
|
6
|
6
84491-61A10-5ER
HOOK,COAT HANGER
89 MODEL |
84491-61A10-5ER |
— | ||
|
6
|
6
84491-61A10-5ES
HOOK,COAT HANGER
89 MODEL,90 MODEL,91 MODEL |
84491-61A10-5ES |
— | ||
| replacement | |||||
|
6
|
6
84491-61A10-5PK HOOK,LUGGAGE ROOM89 MODEL,90 MODEL,91 MODEL |
84491-61A10-5PK |
US $11.20 |
||
|
7
|
7
03111-06255-000
スクリュ
|
03111-06255-000 |
— | ||
| replacement | |||||
|
7
|
7
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
8
|
8
86200-66813-5ER
GRIP,RR SIDE
89 MODEL |
86200-66813-5ER |
— | ||
| replacement | |||||
|
8
|
8
86200-6681V-5ES GRIP SET,ASSISTANT89 MODEL |
86200-6681V-5ES |
US $12.32 |
||
|
8
|
8
86200-66813-5ES
グリップセット,アシスタント(ブラック)
89 MODEL,90 MODEL |
86200-66813-5ES |
— | ||
| replacement | |||||
|
8
|
8
86200-6681V-5ES GRIP SET,ASSISTANT89 MODEL,90 MODEL |
86200-6681V-5ES |
US $12.32 |
||
|
8
|
8
76400-61810-5ES
Grip set, assistant
91 MODEL |
76400-61810-5ES |
— | ||
| replacement | |||||
|
8
|
8
76400-61831-5ES GRIP SET,ASSISTANT91 MODEL |
76400-61831-5ES |
US $35.20 |
||
|
8
|
8
86200-66820-5ER
Grip set, assistant
JLX |
86200-66820-5ER |
— | ||
| replacement | |||||
|
8
|
8
86200-66820-5ES
GRIP SET,ASSISTANT
JLX |
86200-66820-5ES |
— | ||
|
8
|
8
86200-66820-5ES
GRIP SET,ASSISTANT
JLX |
86200-66820-5ES |
— | ||
|
9
|
9
09125-06041-000 SCREW(6X20)89 MODEL,90 MODEL:JX |
09125-06041-000 |
US $1.76 |
||
|
9
|
9
09125-06078-000 SCREW(6X25)89 MODEL,90 MODEL:JLX |
09125-06078-000 |
US $15.50 |
||
|
9
|
9
09125-06084-000 SCREW(6X17)91 MODEL |
09125-06084-000 |
US $13.20 |
||
|
10
|
10
84703-60A00-5PK
Mirror, inside rr view
JA:PRODUCT OF JAPAN |
84703-60A00-5PK |
— | ||
| replacement | |||||
|
10
|
10
84703-60A01-5PK
Mirror,inside rear v
JA:PRODUCT OF JAPAN |
84703-60A01-5PK |
— | ||
|
10
|
10
84703-60AA0-5PK
Mirror, inside rr view
JA:PRODUCT OF CONADA |
84703-60AA0-5PK |
— | ||
| replacement | |||||
|
10
|
10
84703-60A01-5PK
Mirror,inside rear v
JA:PRODUCT OF CONADA |
84703-60A01-5PK |
— | ||
|
10
|
10
84703-62A00-5PK
ミラーアッシ,インサイドリヤビュー(ブラック)
JX, JLX, PRODUCT OF JAPAN |
84703-62A00-5PK |
— | ||
| replacements | |||||
|
10
|
10
84703-62A01-5PK
MIRROR ASSY,INS RR VIEW
JX, JLX, PRODUCT OF JAPAN |
84703-62A01-5PK |
— | ||
|
10
|
10
84782-60A00-000 RUBBERJX, JLX, PRODUCT OF JAPAN |
84782-60A00-000 |
US $2.24 |
||
|
11
|
11
84782-60A00-000 RUBBER |
84782-60A00-000 |
US $2.24 |
||
|
12
|
12
84781-60A00-5PK COVER,INSIDE MIRROR STAY |
84781-60A00-5PK |
US $2.74 |
||
|
13
|
13
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
14
|
14
84800-60810-5ET
Sunvisor set, rh
89 MODEL:JX |
84800-60810-5ET |
— | ||
| replacement | |||||
|
14
|
14
84800-60852-5UN
SUNVISOR ASSY,R
89 MODEL:JX |
84800-60852-5UN |
— | ||
|
14
|
14
84800-60810-2WE
Sunvisor set, rh
89 MODEL,90 MODEL:JX |
84800-60810-2WE |
— | ||
| replacement | |||||
|
14
|
14
84800-60812-2WE
SUNVISOR ASSY,R
89 MODEL,90 MODEL:JX |
84800-60812-2WE |
— | ||
|
14
|
14
84800-60850-5UP
Sunvisor set, rh
89 MODEL:JLX(W/MIRROR) |
84800-60850-5UP |
— | ||
| replacement | |||||
|
14
|
14
84800-60852-5UN
SUNVISOR ASSY,R
89 MODEL:JLX(W/MIRROR) |
84800-60852-5UN |
— | ||
|
14
|
14
84800-60850-5UN
Sunvisor set, rh
89 MODEL,90 MODEL,91 MODEL:JLX(W/MIRROR) |
84800-60850-5UN |
— | ||
| replacement | |||||
|
14
|
14
84800-60852-5UN
SUNVISOR ASSY,R
89 MODEL,90 MODEL,91 MODEL:JLX(W/MIRROR) |
84800-60852-5UN |
— | ||
|
15
|
15
84800-60890-5ET
Sunvisor set, lh
89 MODEL:JX |
84800-60890-5ET |
— | ||
| replacement | |||||
|
15
|
15
84800-60892-2WE
SUNVISOR SET,L
89 MODEL:JX |
84800-60892-2WE |
— | ||
|
15
|
15
84800-60890-2WE
Sunvisor set, lh
89 MODEL,90 MODEL:JX |
84800-60890-2WE |
— | ||
| replacement | |||||
|
15
|
15
84800-60892-2WE
SUNVISOR SET,L
89 MODEL,90 MODEL:JX |
84800-60892-2WE |
— | ||
|
15
|
15
84800-60891-2WE
Sunvisor set, lh
91 MODEL:JA, JX |
84800-60891-2WE |
— | ||
| replacement | |||||
|
15
|
15
84800-60892-2WE
SUNVISOR SET,L
91 MODEL:JA, JX |
84800-60892-2WE |
— | ||
|
15
|
15
84800-60890-5UP
Sunvisor set, lh
89 MODEL:JLX |
84800-60890-5UP |
— | ||
| replacement | |||||
|
15
|
15
84800-60892-5UN
Sunvisor set,lh
89 MODEL:JLX |
84800-60892-5UN |
— | ||
|
15
|
15
84800-60891-5UN
Sunvisor set, lh
89 MODEL,90 MODEL,91 MODEL:JLX |
84800-60891-5UN |
— | ||
| replacement | |||||
|
15
|
15
84800-60892-5UN
Sunvisor set,lh
89 MODEL,90 MODEL,91 MODEL:JLX |
84800-60892-5UN |
— | ||
|
16
|
16
84851-84000-5ER
Holder, sunvosor
89 MODEL |
84851-84000-5ER |
— | ||
| replacement | |||||
|
16
|
16
84851-60B00-5ES HOLDER,SUN VISOR89 MODEL |
84851-60B00-5ES |
US $2.56 |
||
|
16
|
16
84851-84000-5ES
ホルダ,サンバイザ(ブラック)
89 MODEL,90 MODEL,91 MODEL |
84851-84000-5ES |
— | ||
| replacement | |||||
|
16
|
16
84851-60B00-5ES HOLDER,SUN VISOR89 MODEL,90 MODEL,91 MODEL |
84851-60B00-5ES |
US $2.56 |
||
|
17
|
17
09127-05016-000
スクリュ,5X16
|
09127-05016-000 |
— | ||
| replacement | |||||
|
17
|
17
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
18
|
18
03212-05165-000
Screw 5x16
|
03212-05165-000 |
— | ||
| replacements | |||||
|
18
|
18
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
18
|
18
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
19
|
19
86370-78000-5ER
ASHTRAY,RR
89 MODEL:JA, JX |
86370-78000-5ER |
— | ||
| replacement | |||||
|
19
|
19
86370-78000-281 ASHTRAY,RR89 MODEL:JA, JX |
86370-78000-281 |
US $15.68 |
||
|
19
|
19
86370-78000-5ES
アッシュトレー,リヤ(ブラック)
89 MODEL,90 MODEL,91 MODEL:JA, JX |
86370-78000-5ES |
— | ||
| replacement | |||||
|
19
|
19
86370-78000-281 ASHTRAY,RR89 MODEL,90 MODEL,91 MODEL:JA, JX |
86370-78000-281 |
US $15.68 |
||
|
20
|
20
09148-05006-000 NUTJA, JX |
09148-05006-000 |
from US $0.74 |
||
|
21
|
21
89820-60A00-5ER
Ashtray, rear
89 MODEL:JLX |
89820-60A00-5ER |
— | ||
|
21
|
21
89820-60A00-5ES
ASHTRAY,RR
89 MODEL,90 MODEL,91 MODEL:JLX |
89820-60A00-5ES |
— | ||
|
22
|
22
78151-61A00-5EH
Trim, roof back inner
91 MODEL |
78151-61A00-5EH |
— | ||
