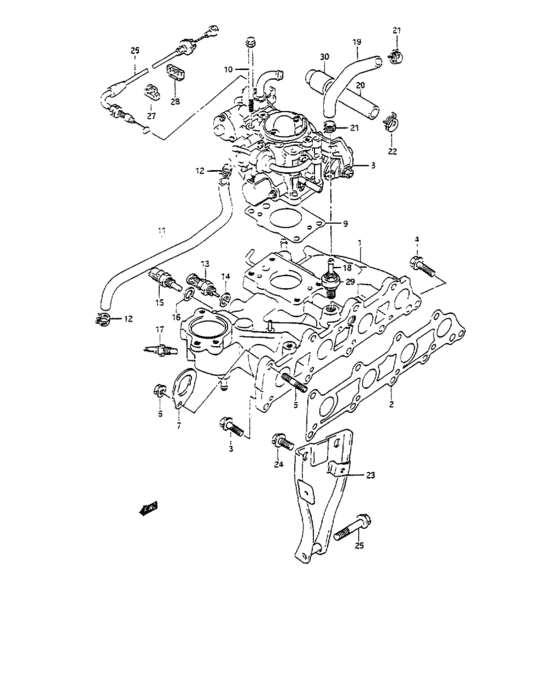

Intake manifold and throttle body (MT:91 MODEL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-56B00-000
Manifold, intake
|
13110-56B00-000 |
— | ||
|
2
|
2
13119-60A00-000 GASKET,INTK MANF |
13119-60A00-000 |
US $39.20 |
||
|
3
|
3
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
7
|
7
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
8
|
8
13400-56B00-000
BODY ASSY,THROTTLE
|
13400-56B00-000 |
— | ||
|
9
|
9
13421-61A00-000 GASKET,THROTTLE BODY |
13421-61A00-000 |
US $12.32 |
||
|
10
|
10
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
11
|
11
13492-56B00-000
Hose, throttle body outlet
|
13492-56B00-000 |
— | ||
| replacements | |||||
|
11
|
11
13492-56B02-000 HOSE,WATER THB OUTLET |
13492-56B02-000 |
US $11.41 |
||
|
11
|
11
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
12
|
12
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
13
|
13
13650-56B00-000 SENSOR,INLET AIR TEMPSensor, iat |
13650-56B00-000 |
US $38.77 |
||
|
14
|
14
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
15
|
15
13650-61B00-000 SENSOR,TEMP |
13650-61B00-000 |
from US $46.40 |
||
|
16
|
16
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
17
|
17
34850-82001-000
Gauge assy, water temperature
|
34850-82001-000 |
— | ||
| replacement | |||||
|
17
|
17
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
18
|
18
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
19
|
19
11192-56B00-000
Hose, pcv
|
11192-56B00-000 |
— | ||
| replacements | |||||
|
19
|
19
09354-70153-600 HOSE(7X15X600) |
09354-70153-600 |
US $16.80 |
||
|
19
|
19
09354-70153-300
ホース,ID:7 OD:15
|
09354-70153-300 |
— | ||
|
20
|
20
09354-13203-300
Hose, air
|
09354-13203-300 |
— | ||
| replacements | |||||
|
20
|
20
09355-13207-00B HOSE(13X20X2000) |
09355-13207-00B |
from US $45.60 |
||
|
20
|
20
09355-13207-600 HOSE(13X20X600)Hose, breather |
09355-13207-600 |
from US $11.63 |
||
|
21
|
21
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
22
|
22
09401-18402-000 クリップ |
09401-18402-000 |
US $1.10 |
||
| replacement | |||||
|
22
|
22
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
23
|
23
13620-56B01-000
Stiffener,intake manf
|
13620-56B01-000 |
— | ||
|
24
|
24
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
25
|
25
01537-10553-000
ボルト
|
01537-10553-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
25
|
25
01550-10557-000 Bolt |
01550-10557-000 |
from US $1.37 |
||
|
26
|
26
15910-61A30-000
Cable assy, accel
|
15910-61A30-000 |
— | ||
| replacements | |||||
|
26
|
26
15910-63A0V-000
CABLE ASSY,ACCEL
|
15910-63A0V-000 |
— | ||
|
26
|
26
15910-61A33-000
CABLE ASSY,ACCEL
|
15910-61A33-000 |
— | ||
|
27
|
27
15991-61A01-000
Clamp
|
15991-61A01-000 |
— | ||
| replacement | |||||
|
27
|
27
15991-61A02-000
CLAMP,ACCEL CABLE
|
15991-61A02-000 |
— | ||
|
28
|
28
15991-83000-000
CLAMP,ACCEL CABLE
|
15991-83000-000 |
— | ||
|
29
|
29
11197-61A10-000
Protector
|
11197-61A10-000 |
— | ||
| replacements | |||||
|
29
|
29
09355-13207-00B HOSE(13X20X2000) |
09355-13207-00B |
from US $45.60 |
||
|
29
|
29
09355-13207-600 HOSE(13X20X600)Hose, breather |
09355-13207-600 |
from US $11.63 |
||
|
29
|
29
09354-13203-600
ホース,13X20X600
|
09354-13203-600 |
— | ||
|
30
|
30
11194-56B00-000
Protector
|
11194-56B00-000 |
— | ||
| replacement | |||||
|
30
|
30
11194-80C00-000
PROTECTOR,BREATHER HOSE
|
11194-80C00-000 |
— | ||
