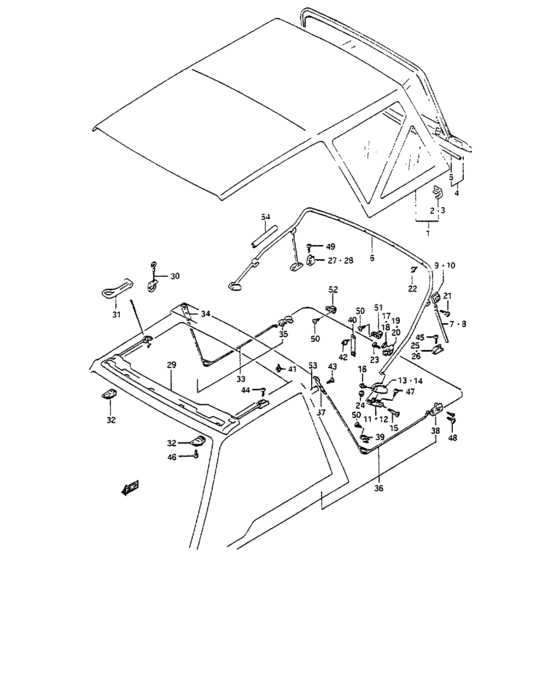

Deck top (C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-60A01-46N
Top assy, deck
JA |
78310-60A01-46N |
— | ||
| replacement | |||||
|
1
|
1
78310-60A11-40U
Top assy,deck
JA |
78310-60A11-40U |
— | ||
|
1
|
1
78310-60A01-6ES
Top assy, deck
JA |
78310-60A01-6ES |
— | ||
| replacement | |||||
|
1
|
1
78310-60A11-6EP
Top assy,deck
JA |
78310-60A11-6EP |
— | ||
|
1
|
1
78310-60A11-4DU
Top assy, deck
JX |
78310-60A11-4DU |
— | ||
|
1
|
1
78310-60A11-6EP
Top assy,deck
JX |
78310-60A11-6EP |
— | ||
|
1
|
1
78310-60A51-55M
トップアッシ,デッキ(ブラック,ブロンズ)
JLX(BRONZE WINDOW) |
78310-60A51-55M |
— | ||
| replacement | |||||
|
1
|
1
78310-60A21-55M
TOP ASSY,DECK
JLX(BRONZE WINDOW) |
78310-60A21-55M |
— | ||
|
1
|
1
78310-60A51-6ER
トップアッシ,デッキ(ホワイト)
JLX(BRONZE WINDOW) |
78310-60A51-6ER |
— | ||
| replacement | |||||
|
1
|
1
78310-60A21-6ER
Top assy,deck
JLX(BRONZE WINDOW) |
78310-60A21-6ER |
— | ||
|
2
|
2
78381-60A00-000 HOOK,TOP DECK RR CORNER,R |
78381-60A00-000 |
US $11.52 |
||
|
3
|
3
78382-60A00-000 HOOK,TOP DECK RR CORNER,L |
78382-60A00-000 |
US $11.52 |
||
|
4
|
4
78320-60A10-40U WINDOW,RRJA, JX |
78320-60A10-40U |
US $1,685.60 |
||
|
4
|
4
78320-60A10-6EP WINDOW,CANVAS RRJA, JX |
78320-60A10-6EP |
US $1,699.36 |
||
|
4
|
4
78320-60A40-40U
ウィンド,リヤ(ブラック,ブロンズ)
JLX(BRONZE WINDOW) |
78320-60A40-40U |
— | ||
| replacement | |||||
|
4
|
4
78320-60A10-40U WINDOW,RRJLX(BRONZE WINDOW) |
78320-60A10-40U |
US $1,685.60 |
||
|
4
|
4
78320-60A40-6ES
Window, canvas rear
JLX(BRONZE WHIDOW) |
78320-60A40-6ES |
— | ||
| replacement | |||||
|
4
|
4
78320-60A10-6EP WINDOW,CANVAS RRJLX(BRONZE WHIDOW) |
78320-60A10-6EP |
US $1,699.36 |
||
|
5
|
5
78399-60A00-000 PIPE,REAR WINDOW |
78399-60A00-000 |
US $40.80 |
||
|
6
|
6
78410-60A01-000
フレーム,トップボウ
<-78410-60A00 |
78410-60A01-000 |
— | ||
| replacement | |||||
|
6
|
6
78410-60A11-000 FRAME,TOP BOW<-78410-60A00 |
78410-60A11-000 |
US $141.68 |
||
|
7
|
7
78421-60A02-000 STAY,TOPBOW,R<-78421-60A01 |
78421-60A02-000 |
US $51.20 |
||
|
8
|
8
78422-60A02-000 STAY,TOPBOW,L<-78422-60A01 |
78422-60A02-000 |
US $51.20 |
||
|
9
|
9
78441-60A00-000 COVER,TOPBOW STAY,R |
78441-60A00-000 |
US $9.44 |
||
|
10
|
10
78451-60A00-000 COVER,TOPBOW STAY,L |
78451-60A00-000 |
US $9.44 |
||
|
11
|
11
78442-60A01-000
ブラケット,トップボウ,ライト
<-78442-60A00 |
78442-60A01-000 |
— | ||
| replacements | |||||
|
11
|
11
78442-60A02-000 BRACKET,TOPBOW,R<-78442-60A00 |
78442-60A02-000 |
US $16.80 |
||
|
11
|
11
78443-60A01-000 COVER,TOPBOW BRACKET,R<-78442-60A00 |
78443-60A01-000 |
US $9.44 |
||
|
11
|
11
78442-60A02-000 BRACKET,TOPBOW,RJS4TA01C L4131675~ |
78442-60A02-000 |
US $16.80 |
||
|
12
|
12
78452-60A01-000
ブラケット,トップボウ,レフト
<-78452-60A00 |
78452-60A01-000 |
— | ||
| replacements | |||||
|
12
|
12
78452-60A02-000 BRACKET,TOPBOW,L<-78452-60A00 |
78452-60A02-000 |
US $16.80 |
||
|
12
|
12
78453-60A01-000 COVER,TOPBOW BRACKET,L<-78452-60A00 |
78453-60A01-000 |
US $9.44 |
||
|
12
|
12
78452-60A02-000 BRACKET,TOPBOW,LJS4TA01C L4131675~ |
78452-60A02-000 |
US $16.80 |
||
|
13
|
13
78443-60A00-000
カバー,トップボウブラケット,ライト
|
78443-60A00-000 |
— | ||
| replacements | |||||
|
13
|
13
78443-60A01-000 COVER,TOPBOW BRACKET,R |
78443-60A01-000 |
US $9.44 |
||
|
13
|
13
78442-60A02-000 BRACKET,TOPBOW,R |
78442-60A02-000 |
US $16.80 |
||
|
13
|
13
78443-60A01-000 COVER,TOPBOW BRACKET,RJS4TA01C L4131675~ |
78443-60A01-000 |
US $9.44 |
||
|
14
|
14
78453-60A00-000
カバー,トップボウブラケット,レフト
|
78453-60A00-000 |
— | ||
| replacements | |||||
|
14
|
14
78453-60A01-000 COVER,TOPBOW BRACKET,L |
78453-60A01-000 |
US $9.44 |
||
|
14
|
14
78452-60A02-000 BRACKET,TOPBOW,L |
78452-60A02-000 |
US $16.80 |
||
|
14
|
14
78453-60A01-000 COVER,TOPBOW BRACKET,LJS4TA01C L4131675~ |
78453-60A01-000 |
US $9.44 |
||
|
15
|
15
78444-60A01-000 SCREW,TOPBOW<-78444-60A00 |
78444-60A01-000 |
US $1.60 |
||
|
16
|
16
78445-60A00-000 CLIP,BRACKET COVER~JS4TA01C L4131674 |
78445-60A00-000 |
US $1.60 |
||
|
17
|
17
78446-60A00-000 HOLDER,TOPBOW STAY NO.1,R |
78446-60A00-000 |
US $11.20 |
||
|
18
|
18
78456-60A00-000 HOLDER,TOPBOW STAY NO.1,L |
78456-60A00-000 |
US $11.20 |
||
|
19
|
19
78447-60A00-000 HOLDER,TOPBOW STAY NO.2,R |
78447-60A00-000 |
US $11.20 |
||
|
20
|
20
78457-60A00-000 HOLDER,TOPBOW STAY NO.2,L |
78457-60A00-000 |
US $11.20 |
||
|
21
|
21
09139-05037-000 SCREW(5X18) |
09139-05037-000 |
from US $1.28 |
||
|
22
|
22
09410-00074-000 MALE |
09410-00074-000 |
US $34.20 |
||
|
23
|
23
03511-05125-000
スクリュ
|
03511-05125-000 |
— | ||
| replacement | |||||
|
23
|
23
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.80 |
||
|
24
|
24
08310-22063-000
ナット
|
08310-22063-000 |
— | ||
| replacement | |||||
|
24
|
24
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
25
|
25
78461-60A00-000 STOPPER,TOPBOW STAY,R |
78461-60A00-000 |
US $17.60 |
||
|
26
|
26
78462-60A00-000 STOPPER,TOPBOW STAY,L |
78462-60A00-000 |
US $17.60 |
||
|
27
|
27
78471-60A00-000 STOPPER,TOPBOW RR-3P,R4 PERSONS |
78471-60A00-000 |
US $16.80 |
||
|
28
|
28
78472-60A00-000 STOPPER,TOPBOW RR-3P,L4 PERSONS |
78472-60A00-000 |
US $16.80 |
||
|
29
|
29
78510-60A02-000
FRAME,TOPBOW FR
<-78510-60A01 |
78510-60A02-000 |
— | ||
|
30
|
30
78518-60A00-000
ケーブル,テンション
|
78518-60A00-000 |
— | ||
| replacement | |||||
|
30
|
30
78518-60A0V-000
CABLE,TENSION
|
78518-60A0V-000 |
— | ||
|
31
|
31
78518-60A01-000 ROD,TENSION |
78518-60A01-000 |
US $16.80 |
||
|
32
|
32
78520-60A00-000
ロック,フロントフレーム
|
78520-60A00-000 |
— | ||
| replacement | |||||
|
32
|
32
78520-60A02-000 LOCK,FR FRAME |
78520-60A02-000 |
US $50.40 |
||
|
33
|
33
78530-60A00-000 FRAME,TOP BOW SIDE,R |
78530-60A00-000 |
US $168 |
||
|
34
|
34
78532-60A00-000
BRACKET,FRAME UPPER,R
|
78532-60A00-000 |
— | ||
|
35
|
35
78533-60A00-000
BRACKET,FRAME RR,R
|
78533-60A00-000 |
— | ||
|
36
|
36
78540-60A00-000 FRAME,TOP BOW SIDE,L |
78540-60A00-000 |
US $168 |
||
|
37
|
37
78542-60A00-000
BRACKET,FRAME UPPER,L
|
78542-60A00-000 |
— | ||
|
38
|
38
78543-60A00-000 BRACKET,FRAME RR,L |
78543-60A00-000 |
US $15.04 |
||
|
39
|
39
78554-60A00-000 HOLDER,RR WINDOW |
78554-60A00-000 |
US $3.04 |
||
|
40
|
40
78553-60A00-000
BAND,TOPBOW RR-3P
|
78553-60A00-000 |
— | ||
|
41
|
41
09410-00074-000 MALE |
09410-00074-000 |
US $34.20 |
||
|
42
|
42
09410-00075-000 MALE |
09410-00075-000 |
US $35 |
||
|
43
|
43
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
43
|
43
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
44
|
44
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
44
|
44
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
44
|
44
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
45
|
45
02112-06205-000
Screw
|
02112-06205-000 |
— | ||
| replacements | |||||
|
45
|
45
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.80 |
||
|
45
|
45
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
46
|
46
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
46
|
46
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
47
|
47
09139-06058-000
スクリュ,6X16
|
09139-06058-000 |
— | ||
| replacement | |||||
|
47
|
47
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
48
|
48
09139-06058-000
スクリュ,6X16
|
09139-06058-000 |
— | ||
| replacement | |||||
|
48
|
48
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
49
|
49
03141-05203-000
スクリュ
4 PERSONS |
03141-05203-000 |
— | ||
| replacements | |||||
|
49
|
49
03141-0520B-000 SCREW4 PERSONS |
03141-0520B-000 |
US $2.56 |
||
|
49
|
49
03142-0520B-000 SCREW4 PERSONS |
03142-0520B-000 |
from US $0.80 |
||
|
50
|
50
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
50
|
50
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
51
|
51
78555-60A00-000 HOLDER,RR WINDOW |
78555-60A00-000 |
US $3.04 |
||
|
52
|
52
78555-60A00-000 HOLDER,RR WINDOW |
78555-60A00-000 |
US $3.04 |
||
|
53
|
53
78571-60A00-000
プロテクタ,センタピラー
|
78571-60A00-000 |
— | ||
| replacement | |||||
|
53
|
53
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
54
|
54
78432-60A00-000 PROTECTOR,TOPBOW SIDE |
78432-60A00-000 |
US $7.36 |
||
