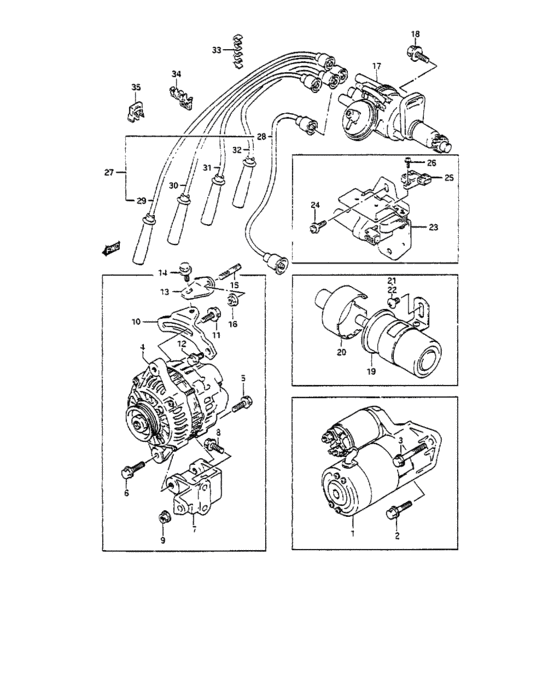

Engine electrical (ENGINE ELECTRICAL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A11-000
Motor assy, starting
AT |
31100-60A11-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
AT |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGAT |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01517-08506-000
Bolt 8x50
|
01517-08506-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
31400-60A20-000
Generator assy
|
31400-60A20-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-60A21-REM
Alternator sd/s
|
31400-60A21-REM |
— | ||
|
5
|
5
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
6
|
6
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
17911-86500-000
BRACKET,GENERATOR
89 MODEL,90 MODEL |
17911-86500-000 |
— | ||
|
7
|
7
17911-56B00-000
Bracket, generator
91 MODEL |
17911-56B00-000 |
— | ||
| replacement | |||||
|
7
|
7
17911-56B01-000
BRACKET,GENERATOR
91 MODEL |
17911-56B01-000 |
— | ||
|
8
|
8
01517-08253-000
ボルト
89 MODEL,90 MODEL |
01517-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825A-000 BOLT89 MODEL,90 MODEL |
01550-0825A-000 |
from US $1.06 |
||
|
8
|
8
01550-0825B-000 BOLT89 MODEL,90 MODEL |
01550-0825B-000 |
from US $0.96 |
||
|
9
|
9
08316-16083-000 NutNut 89 MODEL,90 MODEL |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT89 MODEL,90 MODEL |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
17921-60A00-000
ARM,GENERATOR ADJUST
89 MODEL,90 MODEL |
17921-60A00-000 |
— | ||
|
10
|
10
17921-56B00-000
ARM,GENERATOR ADJUST
91 MODEL |
17921-56B00-000 |
— | ||
|
11
|
11
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
12
|
12
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
12
|
12
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
13
|
13
17926-56B00-000 REINFORCEMENT,GEN ADJ ARM91 MODEL |
17926-56B00-000 |
US $12.32 |
||
|
14
|
14
01517-08203-000
ボルト
91 MODEL |
01517-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket 91 MODEL |
01550-0820A-000 |
from US $0.96 |
||
|
14
|
14
01550-0820B-000 Bolt91 MODEL |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01421-08163-000
Bolt, stud
91 MODEL |
01421-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01421-0816A-000 BOLT,STUD91 MODEL |
01421-0816A-000 |
from US $1.12 |
||
|
16
|
16
08316-16083-000 NutNut 91 MODEL |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUT91 MODEL |
08316-1008B-000 |
from US $0.76 |
||
|
17
|
17
33100-60A20-000
Distributor assy
89 MODEL |
33100-60A20-000 |
— | ||
|
17
|
17
33100-60A40-000
Distributor assy
89 MODEL,JS4TA01C K4106127~,JS4TA01V K4104052~,2S3TA01C L6400001~ |
33100-60A40-000 |
— | ||
|
17
|
17
33100-56B10-000
Distributor assy
91 MODEL |
33100-56B10-000 |
— | ||
| replacement | |||||
|
17
|
17
33100-56B11-000 DISTRIBUTOR ASSY91 MODEL |
33100-56B11-000 |
US $601.92 |
||
|
18
|
18
09118-08110-000
ボルト,8X30
|
09118-08110-000 |
— | ||
| replacement | |||||
|
18
|
18
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
19
|
19
33410-60A10-000
コイルアッシ,イグニツシヨン
89 MODEL,90 MODEL |
33410-60A10-000 |
— | ||
| replacement | |||||
|
19
|
19
33410-71C10-000 COIL ASSY,IGNITION89 MODEL,90 MODEL |
33410-71C10-000 |
US $163.20 |
||
|
20
|
20
33471-77011-000
CAP,IGNITION COIL
89 MODEL,90 MODEL |
33471-77011-000 |
— | ||
|
21
|
21
02142-06103-000
Screw
89 MODEL,90 MODEL,PRODUCT OF JAPAN |
02142-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
02142-0610B-000 SCREWStopper, cl rlse cam shaft 89 MODEL,90 MODEL,PRODUCT OF JAPAN |
02142-0610B-000 |
from US $0.76 |
||
|
21
|
21
02142-0610A-000 SCREW89 MODEL,90 MODEL,PRODUCT OF JAPAN |
02142-0610A-000 |
from US $0.80 |
||
|
22
|
22
01517-06103-000
ボルト
90 MODEL,PRODUCT OF CANADA |
01517-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0610A-000 BOLT90 MODEL,PRODUCT OF CANADA |
01550-0610A-000 |
from US $0.80 |
||
|
22
|
22
01550-0610B-000 BoltBolt 90 MODEL,PRODUCT OF CANADA |
01550-0610B-000 |
from US $0.80 |
||
|
23
|
23
33410-56B10-000
COIL ASSY,IGNITION
91 MODEL |
33410-56B10-000 |
— | ||
|
24
|
24
09129-06002-000 SCREW(6X12)91 MODEL |
09129-06002-000 |
US $0.96 |
||
|
25
|
25
33370-64B10-000
Igniter assy, esa
91 MODEL |
33370-64B10-000 |
— | ||
| replacement | |||||
|
25
|
25
33370-54A50-000 IGNITER ASSY,ESA91 MODEL |
33370-54A50-000 |
US $422.40 |
||
|
26
|
26
33435-54A50-000 SCREW,IGNITER91 MODEL |
33435-54A50-000 |
US $2.10 |
||
|
27
|
27
33700-60A20-000 CORD SET,HT89 MODEL,90 MODEL |
33700-60A20-000 |
US $96.78 |
||
| replacement | |||||
|
27
|
27
33705-80C00-000 CORD SET,HIGH TENSION89 MODEL,90 MODEL |
33705-80C00-000 |
US $70.40 |
||
|
27
|
27
33700-56B20-000 CORD SET, HIGH TENSION91 MODEL |
33700-56B20-000 |
US $87.22 |
||
|
28
|
28
33710-60A20-000
CORD,HT,NO.1
89 MODEL,90 MODEL |
33710-60A20-000 |
— | ||
|
28
|
28
33710-56B20-000
CORD,HT NO.1
91 MODEL |
33710-56B20-000 |
— | ||
|
29
|
29
33730-83020-000
コード,ハイテンション,NO.2
|
33730-83020-000 |
— | ||
| replacement | |||||
|
29
|
29
33730-60C30-000
CORD,HT NO.2
|
33730-60C30-000 |
— | ||
|
30
|
30
33740-83020-000
コード,ハイテンション,NO.3
|
33740-83020-000 |
— | ||
| replacement | |||||
|
30
|
30
33740-60C30-000
CORD,HT NO.3
|
33740-60C30-000 |
— | ||
|
31
|
31
33750-83020-000
コード,ハイテンション,NO.4
|
33750-83020-000 |
— | ||
| replacement | |||||
|
31
|
31
33750-80C00-000 CORD,HT NO.4 |
33750-80C00-000 |
US $19.01 |
||
|
32
|
32
33760-83020-000
コード,ハイテンション,NO.5
|
33760-83020-000 |
— | ||
| replacement | |||||
|
32
|
32
33760-85220-000 CORD,HT NO.5 |
33760-85220-000 |
US $20.53 |
||
|
33
|
33
33883-83020-000
クランプ,ハイテンションコード
|
33883-83020-000 |
— | ||
| replacement | |||||
|
33
|
33
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
|
34
|
34
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
35
|
35
33882-60A10-000 CLAMP,HT CORD |
33882-60A10-000 |
US $3.02 |
||
