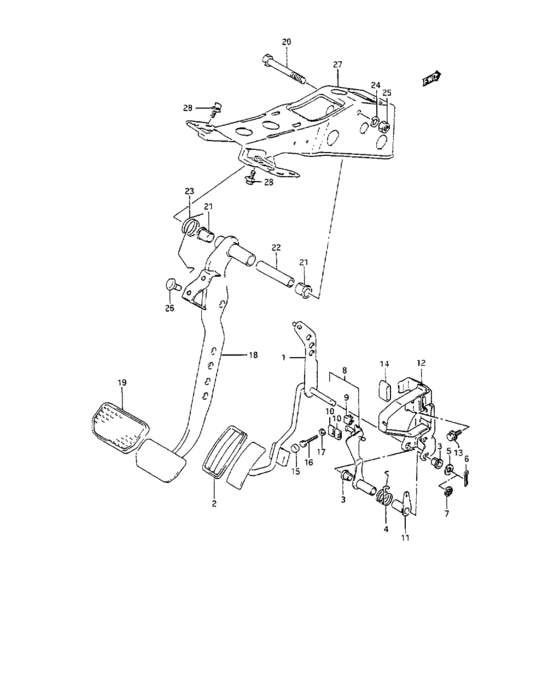

Pedal and pedal bracket (89, 90 MODEL:AT:W/AUTO CRUISE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-60A00-000
Pedal, accelerator
|
49410-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-60810-000
Pedal set,accelerator
|
49410-60810-000 |
— | ||
|
2
|
2
49451-80100-000 PAD,ACCELERATOR PEDAL |
49451-80100-000 |
US $10.40 |
||
|
3
|
3
09307-09001-000 BUSH |
09307-09001-000 |
US $39.70 |
||
|
4
|
4
49557-60A00-000
SPRING,ACCEL PEDAL RETURN A.C
|
49557-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
49557-65D50-000
SPRING,ACCEL PEDAL RETURN
|
49557-65D50-000 |
— | ||
|
5
|
5
09160-09007-000 Washer 9.5x20x1 |
09160-09007-000 |
US $1.82 |
||
| replacement | |||||
|
5
|
5
09160-09016-000 WASHER(9.5X20X1) |
09160-09016-000 |
from US $0.91 |
||
|
6
|
6
04111-20208-000
20 x 20 cotter
|
04111-20208-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
7
|
7
09148-09001-000 NUT |
09148-09001-000 |
US $12.10 |
||
|
8
|
8
49550-60A00-000
ARM,CRUISE CONTROL
|
49550-60A00-000 |
— | ||
|
9
|
9
49555-60A00-000
CUSHION,CRUISE CONTROL
|
49555-60A00-000 |
— | ||
|
10
|
10
09329-01007-000 CUSHION |
09329-01007-000 |
from US $3.40 |
||
|
11
|
11
49556-60A00-000
BUSH
|
49556-60A00-000 |
— | ||
|
12
|
12
49560-60A00-000
Bracket, accelerator
|
49560-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
49560-60A01-000
Bracket, accelerator
|
49560-60A01-000 |
— | ||
|
13
|
13
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
14
|
14
49416-60A00-000 CUSHION,ACCEL PEDAL RETURN |
49416-60A00-000 |
US $2.10 |
||
|
15
|
15
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
15
|
15
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
US $19.50 |
||
|
16
|
16
09100-06133-000
Bolt
|
09100-06133-000 |
— | ||
| replacement | |||||
|
16
|
16
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $1.82 |
||
|
17
|
17
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
17
|
17
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
18
|
18
49610-60A11-000
Pedal, brake
<-49610-60A10 |
49610-60A11-000 |
— | ||
|
19
|
19
49751-86300-000
Pad, brake pedal
|
49751-86300-000 |
— | ||
| replacement | |||||
|
19
|
19
49751-58J10-000 PAD,PEDAL |
49751-58J10-000 |
from US $3.85 |
||
|
20
|
20
09100-10069-000 BOLT(10X96) |
09100-10069-000 |
US $17.70 |
||
|
21
|
21
09307-13004-000
ブッシュ
|
09307-13004-000 |
— | ||
| replacements | |||||
|
21
|
21
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.72 |
||
|
21
|
21
09306-13004-000 BUSH |
09306-13004-000 |
US $14.40 |
||
|
22
|
22
09180-10118-000 SPACER(10.1X13X81) |
09180-10118-000 |
US $124.40 |
||
|
23
|
23
09448-30018-000
スプリング
|
09448-30018-000 |
— | ||
|
24
|
24
08321-31106-000
Washer lock
|
08321-31106-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
24
|
24
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
25
|
25
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
25
|
25
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
26
|
26
09321-06026-000 CUSHION~JS4TA01C K4116106,~JS4TA01V K4107726 |
09321-06026-000 |
from US $1.60 |
||
|
27
|
27
49710-60A72-000
Bracket, pedal
<-49710-60A71 |
49710-60A72-000 |
— | ||
|
28
|
28
01184-08206-000
Bolt
|
01184-08206-000 |
— | ||
| replacement | |||||
|
28
|
28
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.96 |
||
