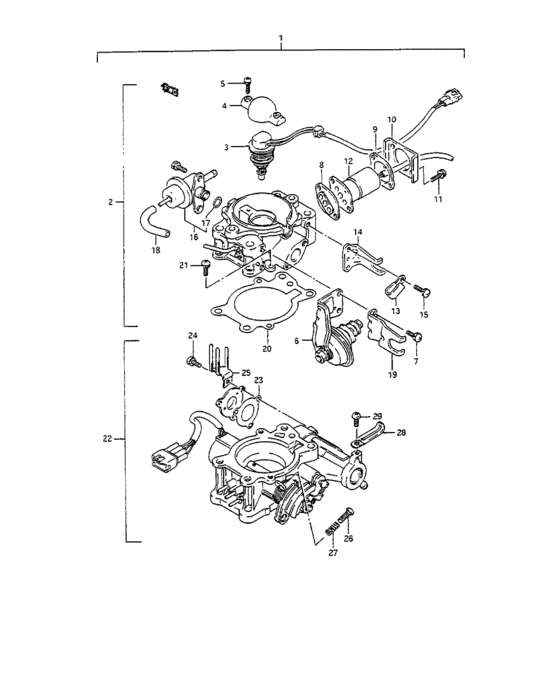

Throttle body (AT:89, 90 MODEL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-61A10-000
Body assy, throttle
~JS4TA01C K4116973,~JS4TA01V K4107814 |
13400-61A10-000 |
— | ||
|
1
|
1
13400-61A70-000
Body assy,throttle
|
13400-61A70-000 |
— | ||
|
2
|
2
13401-61A10-000
ボディアッシ,ミキシング
~JS4TA01C K4116973,~JS4TA01V K4107814 |
13401-61A10-000 |
— | ||
|
2
|
2
13401-61A11-000
ボディアッシ,ミキシング
|
13401-61A11-000 |
— | ||
|
3
|
3
15710-61A00-000
INJECTOR ASSY,FUEL
|
15710-61A00-000 |
— | ||
|
4
|
4
13431-61A10-000
カバー
~JS4TA01C K4116973,~JS4TA01V K4107814 |
13431-61A10-000 |
— | ||
|
4
|
4
13431-61A00-000
COVER
|
13431-61A00-000 |
— | ||
|
5
|
5
13439-61A00-000 SCREW |
13439-61A00-000 |
US $5.56 |
||
|
6
|
6
13432-61A00-000
BRACKET ASSY,DEPRESSION
|
13432-61A00-000 |
— | ||
|
7
|
7
13438-61A00-000
スクリュ
|
13438-61A00-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
7
|
7
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
8
|
8
13451-61A00-000
SEAT,RUBBER
|
13451-61A00-000 |
— | ||
|
9
|
9
13452-61A00-000 FLANGE |
13452-61A00-000 |
US $9.16 |
||
|
10
|
10
13453-61A00-000
HOLDER
|
13453-61A00-000 |
— | ||
|
11
|
11
02112-35163-000
Screw
|
02112-35163-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-3516A-000 SCREW |
02112-3516A-000 |
from US $0.76 |
||
|
12
|
12
13450-61A00-000
SOLENOID ASSY
|
13450-61A00-000 |
— | ||
|
13
|
13
13446-61A00-000
クリップ
|
13446-61A00-000 |
— | ||
| replacements | |||||
|
13
|
13
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
13
|
13
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
|
13
|
13
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
13
|
13
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
13
|
13
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
14
|
14
13433-61A00-000
ブラケット
~JS4TA01C K4116973,~JS4TA01V K4107814 |
13433-61A00-000 |
— | ||
|
14
|
14
13433-61A01-000
ブラケット
|
13433-61A01-000 |
— | ||
|
15
|
15
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
16
|
16
15160-61A00-000
Regulator assy
|
15160-61A00-000 |
— | ||
|
17
|
17
15167-61A00-000 O-RING |
15167-61A00-000 |
US $6.07 |
||
|
18
|
18
13454-61A01-000
Hose
<-13454-61A00 |
13454-61A01-000 |
— | ||
| replacement | |||||
|
18
|
18
13687-72B00-000 HOSE,L:275<-13454-61A00 |
13687-72B00-000 |
US $12.44 |
||
|
19
|
19
13434-61A10-000
ブラケット
|
13434-61A10-000 |
— | ||
|
20
|
20
13441-61A00-000 GASKET |
13441-61A00-000 |
US $26.40 |
||
|
21
|
21
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
22
|
22
13402-61A10-000
Body assy, throttle valve
~JS4TA01C K4116973,~JS4TA01V K4107814 |
13402-61A10-000 |
— | ||
|
22
|
22
13402-61A70-000
Body assy, throttle valve
|
13402-61A70-000 |
— | ||
|
23
|
23
13442-61A00-000 GASKET |
13442-61A00-000 |
US $11.52 |
||
|
24
|
24
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
25
|
25
13445-61A00-000
Clip
|
13445-61A00-000 |
— | ||
|
26
|
26
13443-61A00-000
SCREW,ADJUST
|
13443-61A00-000 |
— | ||
|
27
|
27
13444-61A00-000 SPRING |
13444-61A00-000 |
from US $2.40 |
||
|
28
|
28
13446-61A00-000
クリップ
|
13446-61A00-000 |
— | ||
| replacements | |||||
|
28
|
28
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
28
|
28
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
|
28
|
28
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
28
|
28
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
28
|
28
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
29
|
29
02122-05083-000
SCREW
|
02122-05083-000 |
— | ||
| replacement | |||||
|
29
|
29
02122-0508B-000 New Genuine Part |
02122-0508B-000 |
US $14.70 |
||
