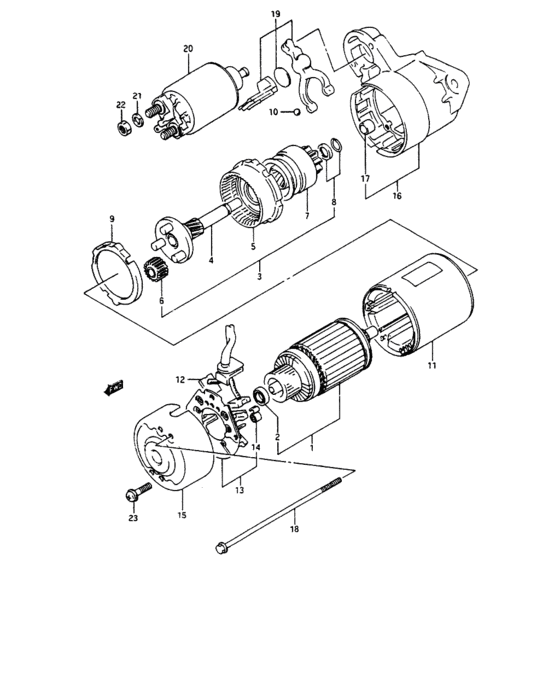

Starting motor (AT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- AT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-60A11-000
Motor assy, starting
|
31100-60A11-000 |
— | ||
| replacements | |||||
|
|
31100-60A12-REM
Starting motor
|
31100-60A12-REM |
— | ||
|
|
31100-60A24-000 MOTOR ASSY,STARTING |
31100-60A24-000 |
US $668.80 |
||
|
1
|
1
31311-60A11-000
アマチュア
|
31311-60A11-000 |
— | ||
|
2
|
2
31172-86030-000
Bearing
|
31172-86030-000 |
— | ||
|
3
|
3
31340-60A10-000
シャフトアッシ,クラッチ
|
31340-60A10-000 |
— | ||
|
4
|
4
31341-60A10-000
SHAFT,GEAR
|
31341-60A10-000 |
— | ||
|
5
|
5
31343-86030-000
ギヤアッシ
|
31343-86030-000 |
— | ||
| replacement | |||||
|
5
|
5
31343-50F40-000
GEAR,INTERNAL
|
31343-50F40-000 |
— | ||
|
6
|
6
31344-86030-000 GEAR,PLNTY |
31344-86030-000 |
US $27.60 |
||
|
7
|
7
31320-86030-000 CLUTCH,OVER RUNNING |
31320-86030-000 |
US $111.50 |
||
|
8
|
8
31313-86030-000
STOPPER SET
|
31313-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31314-86030-000 Stopper Set |
31314-86030-000 |
US $12.80 |
||
|
9
|
9
31345-86030-000
Packing
|
31345-86030-000 |
— | ||
| replacement | |||||
|
9
|
9
31345-60A00-000 PACKING |
31345-60A00-000 |
US $5.37 |
||
|
10
|
10
31193-86030-000 BALL |
31193-86030-000 |
US $2.80 |
||
|
11
|
11
31110-60A10-000
ヨークアッシ
|
31110-60A10-000 |
— | ||
| replacement | |||||
|
11
|
11
31110-56B10-000
YOKE ASSY
|
31110-56B10-000 |
— | ||
|
12
|
12
31131-60A10-000 BRUSH ASSY |
31131-60A10-000 |
US $13.47 |
||
|
13
|
13
31173-60A10-000
ホルダアッシ,ブラシ
|
31173-60A10-000 |
— | ||
| replacement | |||||
|
13
|
13
31173-60A20-000 HOLDER ASSY,BRUSH |
31173-60A20-000 |
US $61.09 |
||
|
14
|
14
31135-60A10-000
スプリング,ブラシ
|
31135-60A10-000 |
— | ||
|
15
|
15
31170-60A10-000
ブラケットアッシ,リヤ
|
31170-60A10-000 |
— | ||
|
16
|
16
31151-60A10-000
ブラケットアッシ,フロント
|
31151-60A10-000 |
— | ||
|
17
|
17
31152-79030-000 BEARING,FRONT |
31152-79030-000 |
from US $3.80 |
||
|
18
|
18
31261-60A10-000
Bolt
|
31261-60A10-000 |
— | ||
|
19
|
19
31191-86030-000
LEVER ASSY
|
31191-86030-000 |
— | ||
|
20
|
20
31220-86030-000 SWITCH ASSY |
31220-86030-000 |
US $144.62 |
||
|
21
|
21
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
22
|
22
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
22
|
22
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
22
|
22
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
23
|
23
31136-79030-000 SCREW ASSY |
31136-79030-000 |
US $5.81 |
||
