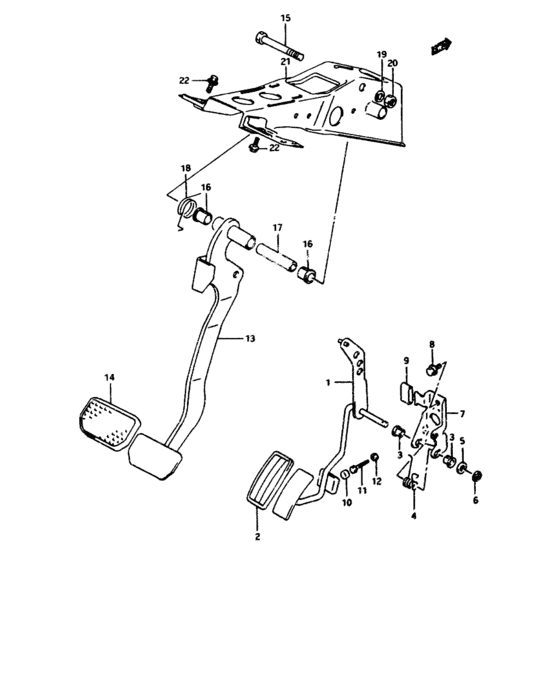

Pedal and pedal bracket (AT:N/AUTO CRUISE:91 MODEL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-60810-000
Pedal set,accelerator
|
49410-60810-000 |
— | ||
|
2
|
2
49451-80100-000 PAD,ACCELERATOR PEDAL |
49451-80100-000 |
US $11.52 |
||
|
3
|
3
09307-09001-000 BUSH |
09307-09001-000 |
US $39.70 |
||
|
4
|
4
09448-21003-000
スプリング
|
09448-21003-000 |
— | ||
| replacement | |||||
|
4
|
4
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
5
|
5
09160-09007-000 Washer 9.5x20x1 |
09160-09007-000 |
US $1.82 |
||
| replacement | |||||
|
5
|
5
09160-09016-000 WASHER(9.5X20X1) |
09160-09016-000 |
from US $0.91 |
||
|
6
|
6
09148-09001-000 NUT |
09148-09001-000 |
from US $2.02 |
||
|
7
|
7
49511-60A00-000
ブラケット,アクセレレータ
|
49511-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
49511-65D00-000 BRACKET,ACCELERATOR |
49511-65D00-000 |
US $10.49 |
||
|
8
|
8
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
9
|
9
49416-60A00-000 CUSHION,ACCEL PEDAL RETURN |
49416-60A00-000 |
US $2.10 |
||
|
10
|
10
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
10
|
10
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
11
|
11
09100-06133-000
Bolt
|
09100-06133-000 |
— | ||
| replacement | |||||
|
11
|
11
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $3.15 |
||
|
12
|
12
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
49610-57B50-000
PEDAL,BRAKE
2DR |
49610-57B50-000 |
— | ||
|
13
|
13
49610-58B50-000
Pedal, brake
4DR |
49610-58B50-000 |
— | ||
|
14
|
14
49751-86300-000
Pad, brake pedal
|
49751-86300-000 |
— | ||
| replacement | |||||
|
14
|
14
49751-58J10-000 PAD,PEDAL |
49751-58J10-000 |
from US $4.91 |
||
|
15
|
15
09100-10069-000 BOLT(10X96) |
09100-10069-000 |
US $17.70 |
||
|
16
|
16
09307-13004-000
ブッシュ
|
09307-13004-000 |
— | ||
| replacements | |||||
|
16
|
16
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.72 |
||
|
16
|
16
09306-13004-000 BUSH |
09306-13004-000 |
US $14.40 |
||
|
17
|
17
09180-10118-000 SPACER(10.1X13X81) |
09180-10118-000 |
US $124.40 |
||
|
18
|
18
49617-56B50-000
Spring, pedal return
2DR |
49617-56B50-000 |
— | ||
| replacement | |||||
|
18
|
18
49617-56B00-000
SPRING,BRAKE PEDAL RETURN
2DR |
49617-56B00-000 |
— | ||
|
18
|
18
09448-30018-000
スプリング
4DR |
09448-30018-000 |
— | ||
|
19
|
19
08321-31106-000
Washer lock
~JS4TA01C M4141011,~JS3TA01C M4148515,~JS3TD01V M4105075 |
08321-31106-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end ~JS4TA01C M4141011,~JS3TA01C M4148515,~JS3TD01V M4105075 |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08321-0110A-000 WASHER,LOCK~JS4TA01C M4141011,~JS3TA01C M4148515,~JS3TD01V M4105075 |
08321-0110A-000 |
from US $0.80 |
||
|
20
|
20
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
20
|
20
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
20
|
20
08316-26103-000
Nut
JS4TA01C M4141012~,JS3TA01C M4148516~,JS3TD01 M4105076~ |
08316-26103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-2010B-000 NUTJS4TA01C M4141012~,JS3TA01C M4148516~,JS3TD01 M4105076~ |
08316-2010B-000 |
from US $0.76 |
||
|
21
|
21
49710-59B50-000
Bracket, pedal
2DR |
49710-59B50-000 |
— | ||
| replacement | |||||
|
21
|
21
49710-59B20-000
BRACKET,PEDAL
2DR |
49710-59B20-000 |
— | ||
|
21
|
21
49710-58B50-000
Bracket, pedal
4DR |
49710-58B50-000 |
— | ||
|
22
|
22
01184-08206-000
Bolt
|
01184-08206-000 |
— | ||
| replacement | |||||
|
22
|
22
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
