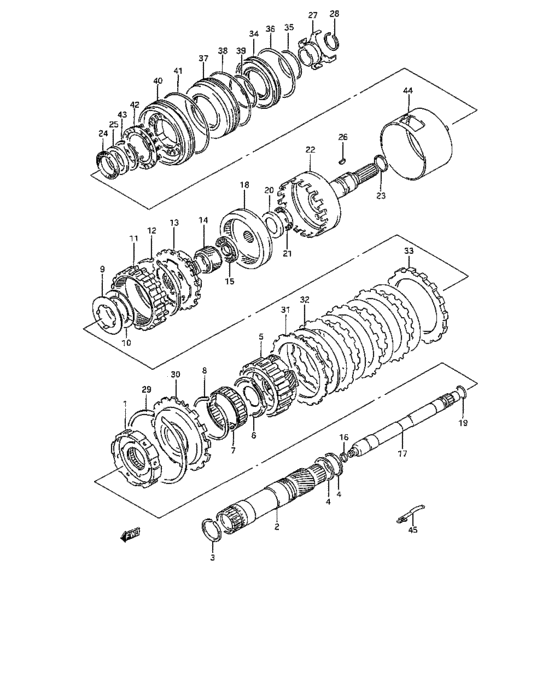

At planetary gear (AT:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24931-57B00-000
ハブアッシ,B2ブレーキ
|
24931-57B00-000 |
— | ||
| replacement | |||||
|
1
|
1
24931-68D70-000 HUB ASSY,B2 BRAKE |
24931-68D70-000 |
US $323.84 |
||
|
2
|
2
24941-57B00-000
Gear, plnty sun
|
24941-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
24901-57B01-000 GEAR ASSY,PLNTY SUN |
24901-57B01-000 |
US $464.64 |
||
|
3
|
3
24991-57B00-000 RING,RETAINING DIRECT CL |
24991-57B00-000 |
from US $8.35 |
||
|
4
|
4
29796-57B00-000 RING,SEAL SUN GEAR |
29796-57B00-000 |
US $19.87 |
||
|
5
|
5
24942-57B00-000
Gear, front plnty
|
24942-57B00-000 |
— | ||
| replacement | |||||
|
5
|
5
24902-52D10-000 GEAR ASSY,FR PLNTY |
24902-52D10-000 |
from US $956.99 |
||
|
6
|
6
29947-57B00-000
Washer, one way clutch rear
|
29947-57B00-000 |
— | ||
|
7
|
7
24981-57B00-000
Clutch, one way
|
24981-57B00-000 |
— | ||
|
8
|
8
24993-57B00-000 RING,RITAINING ONE WAY CL |
24993-57B00-000 |
from US $8.80 |
||
|
9
|
9
29946-57B00-000
Washer, rear plnty no.1
|
29946-57B00-000 |
— | ||
| replacement | |||||
|
9
|
9
29945-57BT0-000 WASHER SET,THRUST PLNTY |
29945-57BT0-000 |
US $24.66 |
||
|
10
|
10
29945-57B00-000
Washer, rear plnty no.2
|
29945-57B00-000 |
— | ||
|
11
|
11
24943-57B00-000 GEAR,FR PLNTY RING |
24943-57B00-000 |
US $228.16 |
||
|
12
|
12
24992-57B00-000 RING,RETAINING FR PLNTY RING |
24992-57B00-000 |
US $12 |
||
|
13
|
13
24944-57B00-000
Gear comp,rr plnty carrier
|
24944-57B00-000 |
— | ||
| replacement | |||||
|
13
|
13
24944-52D10-000 GEAR,RR PLNTY CARRIER |
24944-52D10-000 |
US $464.64 |
||
|
14
|
14
24946-57B00-000 GEAR,PLNTY SUN RR |
24946-57B00-000 |
US $218.96 |
||
|
15
|
15
29695-57B00-000
Bearing, thrust
|
29695-57B00-000 |
— | ||
| replacement | |||||
|
15
|
15
24950-57B00-000 SHAFT ASSY,INNER |
24950-57B00-000 |
US $577.28 |
||
|
16
|
16
29795-57B00-000 RING,SEAL SLEEVE |
29795-57B00-000 |
US $8.21 |
||
|
17
|
17
24951-57B00-000
Shaft, inner
|
24951-57B00-000 |
— | ||
|
18
|
18
24945-57B00-000
Gear, rear plnty ring
|
24945-57B00-000 |
— | ||
|
19
|
19
24995-57B00-000 RING,RETAINING INNER SHAFT |
24995-57B00-000 |
US $9.31 |
||
|
20
|
20
26662-57B00-000
Race, thrust bearing
|
26662-57B00-000 |
— | ||
| replacement | |||||
|
20
|
20
26663-57BT0-000 BEARING SET,THRUST NO.9 |
26663-57BT0-000 |
US $39.01 |
||
|
21
|
21
29699-57B00-000
Bearing, thrust rear
|
29699-57B00-000 |
— | ||
| replacement | |||||
|
21
|
21
24961-57BT0-000 BEARING SET,THRUST NO.3 |
24961-57BT0-000 |
US $52.26 |
||
|
22
|
22
24952-57B00-000
シャフトアッシ,アウトプツト
|
24952-57B00-000 |
— | ||
|
22
|
22
24952-57B01-000
シャフトアッシ,アウトプツト
JS3TD03V S4106959~,JS3TUnited KingdomV S4100698~,2S3TD03V S6406387~,2S3TUnited KingdomV S6406395~ |
24952-57B01-000 |
— | ||
| replacement | |||||
|
22
|
22
24952-57B02-000 SHAFT ASSY,OUTPUTJS3TD03V S4106959~,JS3TUnited KingdomV S4100698~,2S3TD03V S6406387~,2S3TUnited KingdomV S6406395~ |
24952-57B02-000 |
US $946.88 |
||
|
23
|
23
29794-57B00-000 RING,SEAL OUTPUT SHAFT |
29794-57B00-000 |
from US $15.84 |
||
|
24
|
24
29694-57B00-000
Bearing, output shaft thrust
|
29694-57B00-000 |
— | ||
| replacement | |||||
|
24
|
24
24962-57BT0-000 BEARING SET,THRUST NO.4 |
24962-57BT0-000 |
US $40.48 |
||
|
25
|
25
24962-57B00-000
Race, thrust bearing
|
24962-57B00-000 |
— | ||
|
26
|
26
24971-57B00-000 KEY,WOODRUFF |
24971-57B00-000 |
US $8.80 |
||
|
27
|
27
24921-57B00-000
Rotor, sensor
|
24921-57B00-000 |
— | ||
| replacement | |||||
|
27
|
27
24921-57BT0-000 ROTOR SET,SENSOR |
24921-57BT0-000 |
US $153.09 |
||
|
28
|
28
24994-57B00-000 RING,RETAINING ROTOR |
24994-57B00-000 |
from US $6.55 |
||
|
29
|
29
26891-57B00-000 RING,RETAINING REACTION PLEATE |
26891-57B00-000 |
US $13.98 |
||
|
30
|
30
26831-57B00-000 PLATE,REV BK REACTION |
26831-57B00-000 |
from US $275.20 |
||
|
31
|
31
26811-57B00-000
Plate, reverse brake
|
26811-57B00-000 |
— | ||
| replacement | |||||
|
31
|
31
26811-57BT0-000 PLATE SET,1ST&REV BRAKE |
26811-57BT0-000 |
US $440 |
||
|
32
|
32
26812-57B00-000
Disk, reverse brake
|
26812-57B00-000 |
— | ||
|
33
|
33
26813-57B00-000
Plate, reverse brake backing
|
26813-57B00-000 |
— | ||
|
34
|
34
26822-57B00-000 PISTON,SECONDARY REV |
26822-57B00-000 |
from US $42.68 |
||
|
35
|
35
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
35
|
35
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
36
|
36
29739-57B00-000
O ring, outer
|
29739-57B00-000 |
— | ||
| replacement | |||||
|
36
|
36
29729-65DT0-000 O-RING SET,REV BRAKE PISTON |
29729-65DT0-000 |
from US $54.38 |
||
|
37
|
37
26861-57B00-000 SLEEVE,REACTION |
26861-57B00-000 |
from US $54.70 |
||
|
38
|
38
29741-57B00-000
O ring, inner
|
29741-57B00-000 |
— | ||
|
39
|
39
29729-57B00-000
O ring, outer
|
29729-57B00-000 |
— | ||
|
40
|
40
26821-57B00-000 PISTON,REV BRAKE |
26821-57B00-000 |
US $64.77 |
||
|
41
|
41
29743-57B00-000
O ring
|
29743-57B00-000 |
— | ||
| replacement | |||||
|
41
|
41
29743-65DT0-000 O-RING SET,B1 BRAKE PISTON |
29743-65DT0-000 |
from US $23.11 |
||
|
42
|
42
26841-57B00-000 SPRING,BRAKE PSTN RTN |
26841-57B00-000 |
US $36.25 |
||
|
43
|
43
28949-57B00-000 RING,SNAP B1 BRAKE |
28949-57B00-000 |
from US $7.52 |
||
|
44
|
44
26832-57B00-000
TUBE,BRAKE APPLY
|
26832-57B00-000 |
— | ||
|
45
|
45
29622-57B00-000 SPRING,LEAF |
29622-57B00-000 |
from US $10.55 |
||
