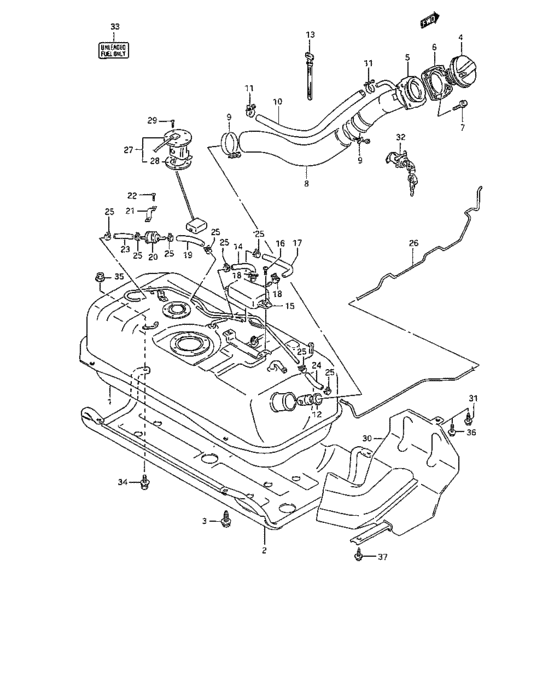

Fuel tank (EXCEPT 95 MODEL:PRODUCT OF CANADA:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65A10-000
タンクアッシ,フューエル
|
89101-65A10-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-65A12-000 TANK ASSY,FUEL |
89101-65A12-000 |
US $1,616 |
||
|
1
|
1
89101-57B11-000
タンクアッシ,フューエル
|
89101-57B11-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-57B12-000 TANK ASSY,FUEL |
89101-57B12-000 |
US $839.04 |
||
|
2
|
2
89320-64A00-000
Protector, fuel tank
|
89320-64A00-000 |
— | ||
| replacement | |||||
|
2
|
2
89320-66A01-000
PROTECTOR,FUEL TANK
|
89320-66A01-000 |
— | ||
|
2
|
2
89320-56B00-000 PROTECTOR,FUEL TANK |
89320-56B00-000 |
US $193.20 |
||
|
3
|
3
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
4
|
4
89260-65AB0-000
Cap assy, filler
|
89260-65AB0-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $19.80 |
||
|
4
|
4
89260-85502-000
Cap assy, fuel tiller
PRODUCT OF JAPAN |
89260-85502-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLERPRODUCT OF JAPAN |
89260-50J00-000 |
US $19.80 |
||
|
5
|
5
89201-60A10-000
Neck assy, fuel filler
|
89201-60A10-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A13-000
NECK ASSY,FUEL FILLER
|
89201-60A13-000 |
— | ||
|
6
|
6
89285-82000-000
パッキング,フューエルフィラ
|
89285-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
7
|
7
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
8
|
8
89241-60A10-000
HOSE,FUEL TANK FILLER
|
89241-60A10-000 |
— | ||
|
8
|
8
89241-56B10-000
Hose, fuel filler
|
89241-56B10-000 |
— | ||
| replacement | |||||
|
8
|
8
89241-56B20-000
HOSE,FUEL TANK FILLER
|
89241-56B20-000 |
— | ||
|
9
|
9
09402-57511-000 CLAMP |
09402-57511-000 |
from US $6.24 |
||
|
10
|
10
89291-60A10-000
Hose, fuel tank breather
|
89291-60A10-000 |
— | ||
|
10
|
10
89291-56B11-000
Hose, tank breather
|
89291-56B11-000 |
— | ||
| replacement | |||||
|
10
|
10
89291-56B20-000
HOSE,FUEL TANK BREATHER
|
89291-56B20-000 |
— | ||
|
11
|
11
09402-22501-000
Clamp
|
09402-22501-000 |
— | ||
| replacement | |||||
|
11
|
11
09402-22511-000 CLAMP |
09402-22511-000 |
from US $10.56 |
||
|
12
|
12
89280-60A00-000
バルブ,フューエルタンク,インレット
|
89280-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
89280-60A01-000 VALVE,FUEL TANK INLET |
89280-60A01-000 |
US $26.40 |
||
|
13
|
13
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
14
|
14
09354-54115-600
ホース,5.4X11.4X600
L:600->140 |
09354-54115-600 |
— | ||
| replacement | |||||
|
14
|
14
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->140 |
09355-54115-600 |
from US $7.20 |
||
|
15
|
15
89411-60A01-000
SEPARATOR,FUEL AND VAPOR
|
89411-60A01-000 |
— | ||
|
16
|
16
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
17
|
17
09354-54115-600
ホース,5.4X11.4X600
L:600->125 |
09354-54115-600 |
— | ||
| replacement | |||||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->125 |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
09401-11412-000 CLIP |
09401-11412-000 |
US $28.30 |
||
|
19
|
19
09354-54115-600
ホース,5.4X11.4X600
L:600->140 |
09354-54115-600 |
— | ||
| replacement | |||||
|
19
|
19
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->140 |
09355-54115-600 |
from US $7.20 |
||
|
20
|
20
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
21
|
21
89485-60A00-000
クランプ,チェックバルブ
|
89485-60A00-000 |
— | ||
| replacement | |||||
|
21
|
21
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $2.24 |
||
|
22
|
22
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
23
|
23
09354-54115-600
ホース,5.4X11.4X600
L:600->100 |
09354-54115-600 |
— | ||
| replacement | |||||
|
23
|
23
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->100 |
09355-54115-600 |
from US $7.20 |
||
|
24
|
24
09354-54115-600
ホース,5.4X11.4X600
L:600->140 |
09354-54115-600 |
— | ||
| replacement | |||||
|
24
|
24
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->140 |
09355-54115-600 |
from US $7.20 |
||
|
25
|
25
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
26
|
26
89430-61A10-000
パイプ,エバポレーションメイン
|
89430-61A10-000 |
— | ||
| replacement | |||||
|
26
|
26
89430-61A11-000 PIPE,EVAPORATION MAIN |
89430-61A11-000 |
US $69.60 |
||
|
26
|
26
89430-56B00-000 PIPE,EVAPORATION MAIN |
89430-56B00-000 |
US $50.42 |
||
|
27
|
27
34810-60A11-000 GAUGE ASSY,FUEL LEVEL |
34810-60A11-000 |
from US $78.19 |
||
|
28
|
28
34825-67020-000 GASKET |
34825-67020-000 |
US $5.28 |
||
|
28
|
28
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
29
|
29
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
29
|
29
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
30
|
30
89311-66A10-000 PROTECTOR,FUEL FILLER HOSE |
89311-66A10-000 |
US $71.44 |
||
|
30
|
30
89310-56B00-000 PROTECTOR,FUEL FILLER HOSE |
89310-56B00-000 |
US $53.36 |
||
|
31
|
31
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
|
32
|
32
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock <-89300-60801 |
89300-60802-000 |
US $76.80 |
||
|
33
|
33
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution |
86932-73060-000 |
US $1.52 |
||
|
34
|
34
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
34
|
34
09118-10068-000
Bolt
|
09118-10068-000 |
— | ||
|
35
|
35
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
35
|
35
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
36
|
36
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
36
|
36
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
37
|
37
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
