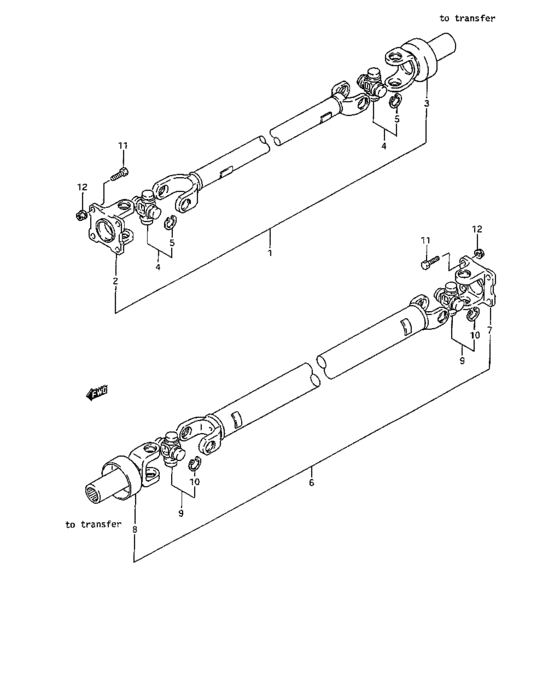

Propeller shaft (4WD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-60A02-000 SHAFT ASSY,PROPELLER FRONT |
27101-60A02-000 |
US $408.32 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-83811-000
ジョイントセット,ユニバーサル
|
27200-83811-000 |
— | ||
| replacements | |||||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
|
4
|
4
27200-83813-000 Joint Set,universal |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
5
|
5
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27102-85F00-000
Shaft assy, propeller rear
|
27102-85F00-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-60A02-000
SHAFT ASSY,PROPELLER REAR
|
27102-60A02-000 |
— | ||
|
6
|
6
27102-77E00-000
Shaft assy, propeller rear
MT |
27102-77E00-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-56B01-000
Shaft assy,propeller rear
MT |
27102-56B01-000 |
— | ||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A00-000 YOKE,SLIDING |
27140-60A00-000 |
US $174.80 |
||
|
8
|
8
27140-60A30-000 YOKE,SLIDING |
27140-60A30-000 |
US $147.57 |
||
|
9
|
9
27200-83811-000
ジョイントセット,ユニバーサル
|
27200-83811-000 |
— | ||
| replacements | |||||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
|
9
|
9
27200-83813-000 Joint Set,universal |
27200-83813-000 |
from US $53.48 |
||
|
10
|
10
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
10
|
10
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
01500-10303-000
Bolt
|
01500-10303-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
09159-10091-000 NUT |
09159-10091-000 |
US $2.88 |
||
