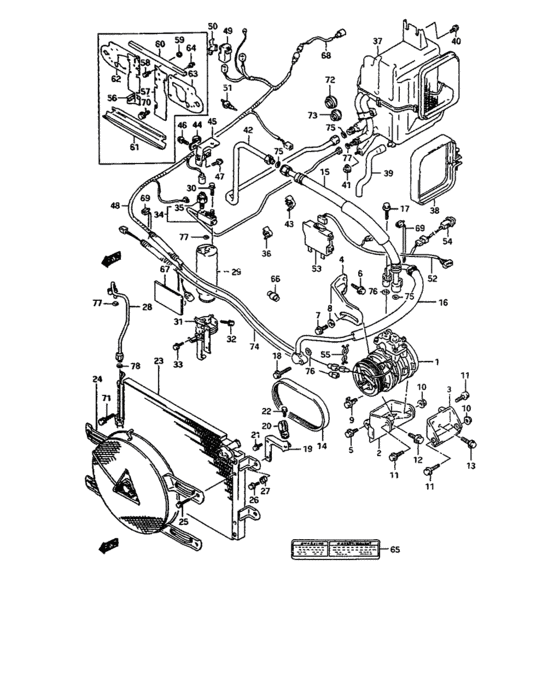

Air conditioner (OPT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95902-56B60-000
Kit, additional
4DR,W/POWER STEERING |
95902-56B60-000 |
— | ||
| replacement | |||||
|
|
95000-58BM1-000
New Genuine Part
4DR,W/POWER STEERING |
95000-58BM1-000 |
— | ||
|
|
95901-56B70-000
Kit, air conditioner
4DR, R12 |
95901-56B70-000 |
— | ||
| replacement | |||||
|
|
95000-58BM1-000
New Genuine Part
4DR, R12 |
95000-58BM1-000 |
— | ||
|
|
95901-58B50-000
Kit, air conditioner
4DR, HFC134A |
95901-58B50-000 |
— | ||
|
|
95902-63AA0-000
Kit, additional
2DR, 95 MODEL,N/POWER STEERING |
95902-63AA0-000 |
— | ||
|
|
95902-63AB0-000
Kit, additional
2DR:95 MODEL,W/POWER STEERING |
95902-63AB0-000 |
— | ||
|
|
95902-67A40-000
Kit, additional
2DR:94 MODEL,N/POWER STEERING |
95902-67A40-000 |
— | ||
|
|
95902-67A50-000
Kit, additional
2DR:94 MODEL,W/POWER STEERING |
95902-67A50-000 |
— | ||
|
|
95901-67A40-000
Kit, air conditioner
2DR:94 MODEL |
95901-67A40-000 |
— | ||
|
|
95901-67AE0-000
Kit, air conditioner
2DR:2 VALVE:95 MODEL |
95901-67AE0-000 |
— | ||
|
|
95901-68AE0-000
Kit, air conditioner
2DR:4 VALVE:95 MODEL |
95901-68AE0-000 |
— | ||
|
|
95902-63A00-000
Kit, additional
2DR:92 MODEL,93 MODEL,N/POWER STEARING |
95902-63A00-000 |
— | ||
|
|
95902-63A10-000
Kit, additional
2DR:92 MODEL,93 MODEL,W/POWER STEERING |
95902-63A10-000 |
— | ||
|
|
95901-63A21-000
Kit, air conditioner
2DR:AT:92 MODEL,93 MODEL |
95901-63A21-000 |
— | ||
| replacement | |||||
|
|
95000-67AE0-000
Car air con assy
2DR:AT:92 MODEL,93 MODEL |
95000-67AE0-000 |
— | ||
|
1
|
1
95200-64A51-000
COMPRESSOR&MAGNET CLUTCH
2DR:92 MODEL,93 MODEL |
95200-64A51-000 |
— | ||
|
1
|
1
95200-67A50-000
COMPRESSOR&MAGNET CLUTCH
2DR:94 MODEL, HFC134A |
95200-67A50-000 |
— | ||
|
1
|
1
95200-60A51-000
Compressor & magnet clutch
94 MODEL, HFC134A |
95200-60A51-000 |
— | ||
|
1
|
1
95200-67A60-000 COMPRESSOR&MAGNET CLUTCH94 MODEL, 4DR, R134A |
95200-67A60-000 |
US $1,444.80 |
||
|
1
|
1
95200-50G10-000
Compressor & magnet clutch
95 MODEL |
95200-50G10-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-50G11-000
Compressor & magnet clutch
95 MODEL |
95200-50G11-000 |
— | ||
|
2
|
2
95110-56B51-000
BRACKET,CPRSR
92 MODEL,93 MODEL,94 MODEL,N/POWER STEERING |
95110-56B51-000 |
— | ||
|
2
|
2
95110-67A51-000
Bracket, compressor
95 MODEL:2 VALVE,N/POWER STEERING |
95110-67A51-000 |
— | ||
| replacement | |||||
|
2
|
2
95110-67A50-000
New Genuine Part
95 MODEL:2 VALVE,N/POWER STEERING |
95110-67A50-000 |
— | ||
|
3
|
3
95130-57B50-000 BRACKET,CPRSR POWER STRG92 MODEL,93 MODEL,94 MODEL,W/POWER STEERING |
95130-57B50-000 |
US $94.21 |
||
|
3
|
3
95130-68A51-000
Bracket, compressor
95 MODEL,W/POWER STEERING |
95130-68A51-000 |
— | ||
|
4
|
4
95120-56B50-000
STAY,COMPRESSOR
2DR:92 MODEL,93 MODEL,94 MODEL |
95120-56B50-000 |
— | ||
|
4
|
4
95120-67A50-000
Stay, compressor
2DR:95 MODEL:2 VALVE |
95120-67A50-000 |
— | ||
|
4
|
4
95120-68A50-000
STAY,COMPRESSOR
2DR:95 MODEL:4 VALVE |
95120-68A50-000 |
— | ||
|
4
|
4
95120-57B50-000
STAY,COMPRESSOR
4DR |
95120-57B50-000 |
— | ||
|
5
|
5
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
6
|
6
01550-08203-000
Bolt
2DR:2 VALVE |
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 Bolt2DR:2 VALVE |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BOLTBolt, funnel bracket 2DR:2 VALVE |
01550-0820A-000 |
from US $0.96 |
||
|
6
|
6
01550-08303-000
Bolt
2DR:4 VALVE,4DR |
01550-08303-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0830B-000 Bolt2DR:4 VALVE,4DR |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01550-0830A-000 BOLTBolt, mount oil seal cover 2DR:4 VALVE,4DR |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
09103-08247-000 BOLT(8X23)92 MODEL,93 MODEL,94 MODEL |
09103-08247-000 |
from US $4.13 |
||
|
7
|
7
01550-08253-000
Bolt, rear
95 MODEL |
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 BOLT95 MODEL |
01550-0825B-000 |
from US $0.96 |
||
|
7
|
7
01550-0825A-000 BOLT95 MODEL |
01550-0825A-000 |
from US $1.06 |
||
|
8
|
8
09160-08093-000
Washer 8.5x24x2
|
09160-08093-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
9
|
9
95911-82000-000
BOLT,CPRSR HOLD
92 MODEL,93 MODEL,94 MODEL |
95911-82000-000 |
— | ||
|
9
|
9
95911-50G00-000
BOLT,CPRSR
95 MODEL |
95911-50G00-000 |
— | ||
|
10
|
10
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
01550-08253-000
Bolt, rear
N/POWER STEERING |
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLTN/POWER STEERING |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLTN/POWER STEERING |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
09103-10209-000 BOLT(10X23)92 MODEL,93 MODEL,94 MODEL |
09103-10209-000 |
US $2.72 |
||
|
12
|
12
01550-08203-000
Bolt
95 MODEL |
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt95 MODEL |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 95 MODEL |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
01550-08203-000
Bolt
W/POWER STEERING |
01550-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0820B-000 BoltW/POWER STEERING |
01550-0820B-000 |
from US $0.91 |
||
|
13
|
13
01550-0820A-000 BOLTBolt, funnel bracket W/POWER STEERING |
01550-0820A-000 |
from US $0.96 |
||
|
14
|
14
95141-57B50-000 V-BELT,4PK 82092 MODEL,93 MODEL,94 MODEL,N/POWER STEERING |
95141-57B50-000 |
US $49.31 |
||
|
14
|
14
95141-60G50-000 BELT,WATER PUMP 4PK84095 MODEL, N/POWER STEERING |
95141-60G50-000 |
US $40 |
||
| replacement | |||||
|
14
|
14
95141-60G50-CDN
Belt,air con 4pk840
95 MODEL, N/POWER STEERING |
95141-60G50-CDN |
— | ||
|
14
|
14
95141-64A60-000 V-BELT,4PK 9352DR:92 MODEL,93 MODEL,94 MODEL,W/POWER STEERING |
95141-64A60-000 |
US $57.04 |
||
| replacement | |||||
|
14
|
14
95141-64A60-CDN
Belt,air cond
2DR:92 MODEL,93 MODEL,94 MODEL,W/POWER STEERING |
95141-64A60-CDN |
— | ||
|
14
|
14
49180-60B10-000
ベルト,4PK950
2DR:95 MODEL,W/POWER STEERING |
49180-60B10-000 |
— | ||
| replacements | |||||
|
14
|
14
49180-60B10-CDN
Belt,air cond.4pk950
2DR:95 MODEL,W/POWER STEERING |
49180-60B10-CDN |
— | ||
|
14
|
14
17521-52E00-000 V-BELT, 4PK9502DR:95 MODEL,W/POWER STEERING |
17521-52E00-000 |
from US $33.03 |
||
|
14
|
14
95141-57B60-000 V-BELT,4PK 9304DR:92 MODEL,93 MODEL,94 MODEL |
95141-57B60-000 |
US $57.04 |
||
| replacement | |||||
|
14
|
14
95141-57B60-CDN
Belt,air cond.4pk930
4DR:92 MODEL,93 MODEL,94 MODEL |
95141-57B60-CDN |
— | ||
|
15
|
15
95710-60A50-000
Hose, compressor suction
R12 |
95710-60A50-000 |
— | ||
| replacement | |||||
|
15
|
15
95710-60AR0-000
HOSE,SUCTION
R12 |
95710-60AR0-000 |
— | ||
|
15
|
15
95710-67A50-000 HOSE,CPRSR SUCT94 MODEL, HFC134A |
95710-67A50-000 |
US $164.86 |
||
|
15
|
15
95710-67A60-000
Hose, compressor suction
95 MODEL |
95710-67A60-000 |
— | ||
|
16
|
16
95720-60A50-000
Hose, compressor delivery
2DR, R12 |
95720-60A50-000 |
— | ||
| replacement | |||||
|
16
|
16
95720-60AR0-000 HOSE,DISCHARGE2DR, R12 |
95720-60AR0-000 |
US $132.11 |
||
|
16
|
16
95720-67A50-000
HOSE,CPRSR DISCH
94 MODEL, HFC134A |
95720-67A50-000 |
— | ||
|
16
|
16
95720-67A60-000
Hose, compressor delivery
95 MODEL:2 VALVE |
95720-67A60-000 |
— | ||
|
16
|
16
95720-68A61-000
Hose, compressor delivery
95 MODEL:4 VALVE |
95720-68A61-000 |
— | ||
|
16
|
16
95720-57B50-000
HOSE,CPRSR DLVY
4DR, R12 |
95720-57B50-000 |
— | ||
|
16
|
16
95720-68A50-000 HOSE,CPRSR DISCH94 MODEL, HFC134A |
95720-68A50-000 |
US $167.81 |
||
|
17
|
17
01550-08303-000
Bolt
2DR, R12 |
01550-08303-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0830B-000 Bolt2DR, R12 |
01550-0830B-000 |
from US $1.06 |
||
|
17
|
17
01550-0830A-000 BOLTBolt, mount oil seal cover 2DR, R12 |
01550-0830A-000 |
from US $1.12 |
||
|
17
|
17
01550-06253-000
Bolt (6x25)
HFC134A |
01550-06253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0625B-000 BOLTBolt, head cover HFC134A |
01550-0625B-000 |
from US $0.91 |
||
|
17
|
17
01550-0625A-000 BOLTBolt HFC134A |
01550-0625A-000 |
from US $0.96 |
||
|
18
|
18
01550-08503-000
Bolt
2DR:R12 |
01550-08503-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0850B-000 Bolt2DR:R12 |
01550-0850B-000 |
from US $1.22 |
||
|
18
|
18
01550-06403-000
Bolt (green)
2DR:HFC134A |
01550-06403-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0640B-000 Bolt2DR:HFC134A |
01550-0640B-000 |
from US $0.96 |
||
|
18
|
18
01550-0640A-000 BoltBolt (l:40) 2DR:HFC134A |
01550-0640A-000 |
from US $3.83 |
||
|
18
|
18
01550-08453-000
Bolt,cylinder h
4DR:R12 |
01550-08453-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0845B-000 BOLT4DR:R12 |
01550-0845B-000 |
from US $1.06 |
||
|
18
|
18
01550-0845A-000 BOLTBolt, oil pump (s) 4DR:R12 |
01550-0845A-000 |
US $5.03 |
||
|
19
|
19
95772-60A50-000
STAY,DISCHARGE HOSE CLAMP
2 VALVE |
95772-60A50-000 |
— | ||
|
19
|
19
95772-57B50-000 STAY,DISCH HOSE CLAMP4 VALVE |
95772-57B50-000 |
US $20.79 |
||
|
20
|
20
95772-70C51-000 CLAMP,SUCT HOSER12 |
95772-70C51-000 |
US $9.83 |
||
|
20
|
20
95772-82010-000
CLAMP,DISCH HOSE
HFC134A |
95772-82010-000 |
— | ||
|
21
|
21
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
22
|
22
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
23
|
23
95310-61A50-000
Condenser
2DR:AT |
95310-61A50-000 |
— | ||
|
23
|
23
95310-67A50-000 CONDENSER2DR, HFC134A |
95310-67A50-000 |
US $425.92 |
||
|
23
|
23
95310-57B50-000
CONDENSER
4DR, R12 |
95310-57B50-000 |
— | ||
|
23
|
23
95310-58B50-000 CONDENSER4DR, HFC134A |
95310-58B50-000 |
US $471.68 |
||
|
24
|
24
95320-60A50-000
Fan assy,condenser
2DR:92 MODEL,93 MODEL |
95320-60A50-000 |
— | ||
|
24
|
24
95320-57B51-000 CONDENSER FAN ASSY2DR:94 MODEL,95 MODEL, HFC134A |
95320-57B51-000 |
US $404.80 |
||
|
24
|
24
95320-57851-000
Fan assy
4DR, HFC134A |
95320-57851-000 |
— | ||
|
25
|
25
01550-06353-000
Bolt
2DR, R12 |
01550-06353-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0635B-000 Bolt2DR, R12 |
01550-0635B-000 |
from US $0.91 |
||
|
25
|
25
01550-0635A-000 Bolt2DR, R12 |
01550-0635A-000 |
from US $0.96 |
||
|
25
|
25
01550-06123-000
Bolt
2DR:HFC134A |
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp 2DR:HFC134A |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLT2DR:HFC134A |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
01570-06123-000
Bolt
4DR |
01570-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01570-0612B-000 BOLTBolt, upper 4DR |
01570-0612B-000 |
US $0.80 |
||
|
25
|
25
01570-0612A-000 BOLTBolt 4DR |
01570-0612A-000 |
from US $0.80 |
||
|
26
|
26
01570-06123-000
Bolt
2DR |
01570-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01570-0612B-000 BOLTBolt, upper 2DR |
01570-0612B-000 |
US $0.80 |
||
|
26
|
26
01570-0612A-000 BOLTBolt 2DR |
01570-0612A-000 |
from US $0.80 |
||
|
26
|
26
01550-06303-000
Bolt (6x30)
4DR |
01550-06303-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-0630A-000 BOLT4DR |
01550-0630A-000 |
from US $0.96 |
||
|
27
|
27
95920-86400-000 BUSH4DR |
95920-86400-000 |
US $3.20 |
||
|
28
|
28
95733-61A50-000
Pipe, receiver dryer inlet
2DR:AT, R12 |
95733-61A50-000 |
— | ||
|
28
|
28
95733-67A50-000
PIPE,RECEIVER INLET
2DR, HFC134A |
95733-67A50-000 |
— | ||
|
28
|
28
95733-57B50-000
Pipe comp,rcvr inlet
4DR, R12 |
95733-57B50-000 |
— | ||
|
29
|
29
95330-60A50-000
Receiver dryer
R12 |
95330-60A50-000 |
— | ||
| replacement | |||||
|
29
|
29
95330-60AR0-000
TANK,RECEIVER
R12 |
95330-60AR0-000 |
— | ||
|
29
|
29
95330-71B20-000
RECEIVER
HFC134A |
95330-71B20-000 |
— | ||
|
30
|
30
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
| replacement | |||||
|
30
|
30
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
31
|
31
95930-61A50-000
Bracket, receiver dryer
2DR:AT:92 MODEL,93 MODEL |
95930-61A50-000 |
— | ||
| replacement | |||||
|
31
|
31
95930-60A50-000
BRACKET,RCVR DRYER
2DR:AT:92 MODEL,93 MODEL |
95930-60A50-000 |
— | ||
|
31
|
31
95930-60A50-000
BRACKET,RCVR DRYER
4DR |
95930-60A50-000 |
— | ||
|
32
|
32
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
32
|
32
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
33
|
33
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
33
|
33
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
95732-60A51-000
Pipe,liquid
2DR, R12 |
95732-60A51-000 |
— | ||
|
34
|
34
95732-67A50-000
PIPE,LIQUID
2DR, HFC134A |
95732-67A50-000 |
— | ||
|
35
|
35
95526-60A50-000
SWITCH,DUAL PRESSURE
R12 |
95526-60A50-000 |
— | ||
|
35
|
35
95526-50G10-000
Switch, dual pressure
HFC134A |
95526-50G10-000 |
— | ||
| replacement | |||||
|
35
|
35
95526-50G30-000 SWITCH,DUAL PRESSUREHFC134A |
95526-50G30-000 |
US $44.84 |
||
|
36
|
36
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
37
|
37
95400-60A51-000 UNIT,EVAPORATORR12,INNER PARTS:FIG.198(A-11) |
95400-60A51-000 |
US $827.20 |
||
| replacement | |||||
|
37
|
37
95800-60A50-000
Unit, evaporato
R12,INNER PARTS:FIG.198(A-11) |
95800-60A50-000 |
— | ||
|
37
|
37
95400-67A50-000 COOLING UNITHFC134A,INNER PARTS:FIG.198(A-11) |
95400-67A50-000 |
US $799.04 |
||
| replacement | |||||
|
37
|
37
95800-67A51-000
Unit, evaporato
HFC134A,INNER PARTS:FIG.198(A-11) |
95800-67A51-000 |
— | ||
|
38
|
38
95779-60A50-000
CLAMP,EVAP
|
95779-60A50-000 |
— | ||
|
39
|
39
95491-60A50-000
HOSE,DRAIN
|
95491-60A50-000 |
— | ||
|
40
|
40
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
41
|
41
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
42
|
42
95731-61A50-000
Pipe, suction
2DR:AT, R12 |
95731-61A50-000 |
— | ||
|
42
|
42
95731-67A50-000
PIPE,SUCTION
2DR, HFC134A |
95731-67A50-000 |
— | ||
|
42
|
42
95731-60A51-000
PIPE,SUCTION
4DR, R12 |
95731-60A51-000 |
— | ||
|
43
|
43
09408-16001-000
クランプ
|
09408-16001-000 |
— | ||
| replacement | |||||
|
43
|
43
09403-16410-000 CLAMP |
09403-16410-000 |
from US $1.67 |
||
|
44
|
44
95777-60A50-000
Clamp, suction pipe
|
95777-60A50-000 |
— | ||
| replacement | |||||
|
44
|
44
95777-60A51-000 CLAMP,SUCT PIPE |
95777-60A51-000 |
US $5.45 |
||
|
45
|
45
95773-60A50-000
Stay
2DR,->95773-57B50 |
95773-60A50-000 |
— | ||
| replacement | |||||
|
45
|
45
95773-57B50-000
STAY,SUCT PIPE CLAMP
2DR,->95773-57B50 |
95773-57B50-000 |
— | ||
|
45
|
45
95773-57B50-000
STAY,SUCT PIPE CLAMP
4DR |
95773-57B50-000 |
— | ||
|
46
|
46
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
46
|
46
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
46
|
46
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
47
|
47
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
47
|
47
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
47
|
47
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
48
|
48
95582-60AF0-000
Harness, engine room
R12 |
95582-60AF0-000 |
— | ||
| replacement | |||||
|
48
|
48
95582-60A50-000
Harness, engine room
R12 |
95582-60A50-000 |
— | ||
|
48
|
48
95584-67AF0-000
Harness, engine room
HFC134A |
95584-67AF0-000 |
— | ||
| replacement | |||||
|
48
|
48
95585-60A50-000
LINK,FUSIBLE
HFC134A |
95585-60A50-000 |
— | ||
|
48
|
48
95582-67A50-000
Harness, engine room
->95584-67A50,USED WITH 95583-67A50,R12:PRODUCT OF JAPAN,94 MODEL |
95582-67A50-000 |
— | ||
| replacements | |||||
|
48
|
48
95583-67A50-000 HARNESS,A/C JOINT->95584-67A50,USED WITH 95583-67A50,R12:PRODUCT OF JAPAN,94 MODEL |
95583-67A50-000 |
US $41.95 |
||
|
48
|
48
95585-60A50-000
LINK,FUSIBLE
->95584-67A50,USED WITH 95583-67A50,R12:PRODUCT OF JAPAN,94 MODEL |
95585-60A50-000 |
— | ||
|
48
|
48
95584-67A50-000
Harness,eng room
R12:PRODUCT OF JAPAN |
95584-67A50-000 |
— | ||
|
49
|
49
95576-73A00-000 RELAY ASSY,CLG FAN |
95576-73A00-000 |
US $29.62 |
||
|
50
|
50
95981-60A50-000
BRACKET,FUSE
|
95981-60A50-000 |
— | ||
|
51
|
51
95573-60A50-000
SWITCH,WATER TEMP
W/AIR CON |
95573-60A50-000 |
— | ||
|
51
|
51
09246-04005-000 PLUGPlug, cylinder head cover N/AIR CON |
09246-04005-000 |
from US $2.72 |
||
|
52
|
52
95581-60A51-000 HARNESS,INR |
95581-60A51-000 |
US $59.25 |
||
|
53
|
53
95575-60A51-000
Amplifier
|
95575-60A51-000 |
— | ||
| replacement | |||||
|
53
|
53
95510-78E40-000
CONTROLLER,A/C
|
95510-78E40-000 |
— | ||
|
54
|
54
95571-60A50-000
SWITCH,A/C
|
95571-60A50-000 |
— | ||
|
55
|
55
09408-00123-000
クランプ
|
09408-00123-000 |
— | ||
|
56
|
56
95340-61A50-000
Insulator, radiator side rh
2DR:AT:92 MODEL,93 MODEL |
95340-61A50-000 |
— | ||
| replacement | |||||
|
56
|
56
95340-60A60-000
Insulator, radiator side rh
2DR:AT:92 MODEL,93 MODEL |
95340-60A60-000 |
— | ||
|
56
|
56
95340-60A60-000
Insulator, radiator side rh
2DR:94 MODEL,95 MODEL |
95340-60A60-000 |
— | ||
|
56
|
56
95340-57B50-000 INSULATOR ASSY,RADIATOR SIDE,R4DR |
95340-57B50-000 |
US $47.84 |
||
|
57
|
57
95350-60A50-000
Insulator, radiator side lh
2DR |
95350-60A50-000 |
— | ||
|
57
|
57
95350-57B50-000 INSULATOR ASSY,RADIATOR SIDE,L4DR |
95350-57B50-000 |
US $47.84 |
||
|
58
|
58
01550-06163-000
Bolt
2DR:AT:92 MODEL,93 MODEL |
01550-06163-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0616B-000 BOLT2DR:AT:92 MODEL,93 MODEL |
01550-0616B-000 |
from US $0.76 |
||
|
58
|
58
01550-0616A-000 BOLT2DR:AT:92 MODEL,93 MODEL |
01550-0616A-000 |
from US $0.76 |
||
|
58
|
58
01550-06123-000
Bolt
2DR:94 MODEL,95 MODEL |
01550-06123-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0612B-000 BOLTBolt, clamp 2DR:94 MODEL,95 MODEL |
01550-0612B-000 |
from US $0.76 |
||
|
58
|
58
01550-0612A-000 BOLT2DR:94 MODEL,95 MODEL |
01550-0612A-000 |
from US $0.76 |
||
|
59
|
59
08316-10063-000
Nut
2DR:AT:92 MODEL,93 MODEL |
08316-10063-000 |
— | ||
| replacement | |||||
|
59
|
59
08316-1006B-000 NUT2DR:AT:92 MODEL,93 MODEL |
08316-1006B-000 |
from US $0.76 |
||
|
60
|
60
95364-60A01-000
インシュレータ,ラジエータ,アッパ
|
95364-60A01-000 |
— | ||
| replacement | |||||
|
60
|
60
95364-60A02-000
INSULATOR,RADIATOR UPR
|
95364-60A02-000 |
— | ||
|
61
|
61
95361-60A01-000
PANEL,RADIATOR LOWER SHIELD
2DR |
95361-60A01-000 |
— | ||
|
62
|
62
95362-60A00-000
INSULATOR,LAMP SUPPORT PANEL,R
RH |
95362-60A00-000 |
— | ||
|
63
|
63
95363-60A00-000
INSULATOR,LAMP SUPPORT PANEL,L
LH |
95363-60A00-000 |
— | ||
|
64
|
64
09409-07022-000 CLIP |
09409-07022-000 |
from US $1.40 |
||
|
65
|
65
95951-64AA0-000
Plate, caution
2DR, R12,PRODUCT OF CANADA |
95951-64AA0-000 |
— | ||
| replacement | |||||
|
65
|
65
95951-64A00-000
Name plate, a/c
2DR, R12,PRODUCT OF CANADA |
95951-64A00-000 |
— | ||
|
65
|
65
95951-67AA0-000
Plate, warning
2DR, HFC134A,PRODUCT OF CANADA |
95951-67AA0-000 |
— | ||
| replacement | |||||
|
65
|
65
95951-67A00-000
PLATE,WARNING A/C
2DR, HFC134A,PRODUCT OF CANADA |
95951-67A00-000 |
— | ||
|
65
|
65
95951-67AB0-000
Plate, warning
2DR:HEC134A,PRODUCT OF CANADA,95 MODEL |
95951-67AB0-000 |
— | ||
|
65
|
65
95951-64A00-000
Name plate, a/c
R12, PRODUCT OF JAPAN |
95951-64A00-000 |
— | ||
|
65
|
65
95951-67A00-000
PLATE,WARNING A/C
4DR, HFC134A,PRODUCT OF JAPAN |
95951-67A00-000 |
— | ||
|
66
|
66
95765-83000-000 PROTECTOR,PIPE |
95765-83000-000 |
US $10.19 |
||
|
67
|
67
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
68
|
68
95585-60A50-000
LINK,FUSIBLE
|
95585-60A50-000 |
— | ||
|
69
|
69
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
70
|
70
01550-06403-000
Bolt (green)
2DR:94 MODEL |
01550-06403-000 |
— | ||
| replacements | |||||
|
70
|
70
01550-0640B-000 Bolt2DR:94 MODEL |
01550-0640B-000 |
from US $0.96 |
||
|
70
|
70
01550-0640A-000 BoltBolt (l:40) 2DR:94 MODEL |
01550-0640A-000 |
from US $3.83 |
||
|
70
|
70
01550-08123-000
Bolt
4DR |
01550-08123-000 |
— | ||
| replacements | |||||
|
70
|
70
01550-0812B-000 BoltPlug, drain 4DR |
01550-0812B-000 |
from US $0.96 |
||
|
70
|
70
01550-0812A-000 BOLT4DR |
01550-0812A-000 |
from US $0.91 |
||
|
71
|
71
01570-08403-000
Bolt
4DR, W/95733-57B50(R12) |
01570-08403-000 |
— | ||
| replacement | |||||
|
71
|
71
01570-0840A-000 Bolt4DR, W/95733-57B50(R12) |
01570-0840A-000 |
from US $3.42 |
||
|
71
|
71
01550-06403-000
Bolt (green)
94 MODEL,95 MODEL, HFC134A |
01550-06403-000 |
— | ||
| replacements | |||||
|
71
|
71
01550-0640B-000 Bolt94 MODEL,95 MODEL, HFC134A |
01550-0640B-000 |
from US $0.96 |
||
|
71
|
71
01550-0640A-000 BoltBolt (l:40) 94 MODEL,95 MODEL, HFC134A |
01550-0640A-000 |
from US $3.83 |
||
|
72
|
72
74813-82000-000 GROMMET,CAR AIR CON,NO.1 |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
72
|
72
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
73
|
73
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
74
|
74
95583-67A50-000 HARNESS,A/C JOINT94 MODEL,95 MODEL,PRODUCT OF JAPAN |
95583-67A50-000 |
US $41.95 |
||
|
75
|
75
95897-60E00-000 O-RINGR12 |
95897-60E00-000 |
US $30.50 |
||
|
75
|
75
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) HFC134A |
95896-50G00-000 |
US $1.28 |
||
|
76
|
76
95894-60E00-000 O-RINGR12 |
95894-60E00-000 |
US $1.28 |
||
|
76
|
76
95895-50G00-000 O-RING,D:2.4 ID:10.8HFC134A |
95895-50G00-000 |
US $1.28 |
||
|
77
|
77
95891-60E00-000 O-RINGR12 |
95891-60E00-000 |
US $0.70 |
||
|
77
|
77
95891-50G00-000 O-RING,D:1.8 ID:6.7HFC134A |
95891-50G00-000 |
from US $0.96 |
||
|
78
|
78
95891-60E00-000 O-RING2DR:R12 |
95891-60E00-000 |
US $0.70 |
||
|
78
|
78
95895-50G00-000 O-RING,D:2.4 ID:10.8HFC134A |
95895-50G00-000 |
US $1.28 |
||
|
78
|
78
95894-60E00-000 O-RING4DR:R12 |
95894-60E00-000 |
US $1.28 |
||
