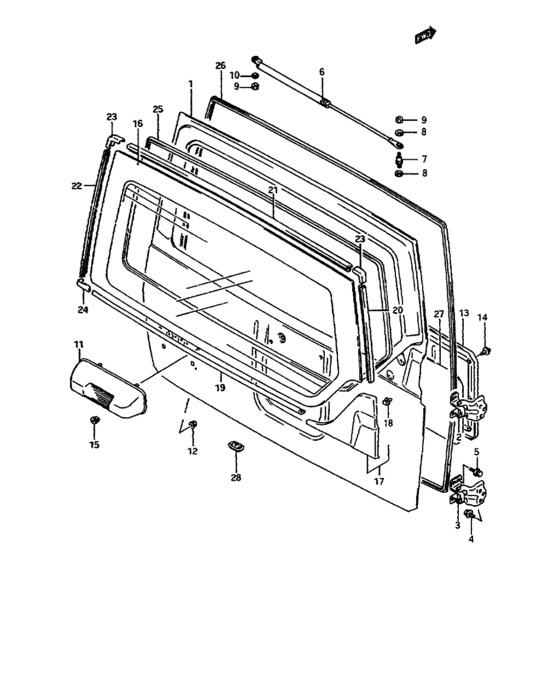

Back dr panel (2DR:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-61AB0-000
Panel assy, back door
|
69100-61AB0-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-61821-000
PANEL SET,BACK DOOR
|
69100-61821-000 |
— | ||
|
2
|
2
69510-61A00-000 HINGE,BACK DOOR UPR |
69510-61A00-000 |
US $47.10 |
||
|
3
|
3
69520-61A00-000 HINGE,RR GATE LWR |
69520-61A00-000 |
US $57.76 |
||
|
4
|
4
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
81851-62A10-000
Unit, back door balancer
|
81851-62A10-000 |
— | ||
|
7
|
7
81852-61AD0-000
Shaft, back door balancer door
|
81852-61AD0-000 |
— | ||
|
8
|
8
09160-06107-000
Washer,6x16x1.2
|
09160-06107-000 |
— | ||
| replacements | |||||
|
8
|
8
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.28 |
||
|
8
|
8
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $0.77 |
||
|
9
|
9
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
9
|
9
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
10
|
10
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
83930-61A00-5PK
COVER,BACK DR LIC LAMP
PAINT TO MATCH |
83930-61A00-5PK |
— | ||
|
12
|
12
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
13
|
13
83770-63A01-5ES TRIM,BACK DOOR<-83770-63A00-5ES |
83770-63A01-5ES |
US $95.01 |
||
|
14
|
14
09409-08308-5PK
クリップ(ブラック)
|
09409-08308-5PK |
— | ||
| replacement | |||||
|
14
|
14
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
15
|
15
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
16
|
16
84575-61AD1-000
Glass, back dr window
|
84575-61AD1-000 |
— | ||
| replacement | |||||
|
16
|
16
84575-61A60-000 GLASS,BACK DR WINDOW |
84575-61A60-000 |
US $478.72 |
||
|
17
|
17
83940-61A00-5PK GARNISH,BACK DR OUT,R |
83940-61A00-5PK |
US $60.80 |
||
|
18
|
18
83942-61A00-000
クリップ,ガーニッシュ
|
83942-61A00-000 |
— | ||
| replacement | |||||
|
18
|
18
83942-65D00-000 CLIP |
83942-65D00-000 |
US $1.52 |
||
|
19
|
19
84621-61A00-5PK MOLDING,BACK WDO NO.1<-84621-61AA0-5PK |
84621-61A00-5PK |
US $29.26 |
||
|
20
|
20
84622-61A00-5PK
MOLDING,BACK WDO NO.2
<-84622-61AA0-5PK |
84622-61A00-5PK |
— | ||
|
21
|
21
84623-61A00-5PK
MOLDING,BACK WDO NO.3
<-84623-61AA0-5PK |
84623-61A00-5PK |
— | ||
|
22
|
22
84624-61A00-5PK
MOLDING,BACK WDO NO.4
<-84624-61AA0-5PK |
84624-61A00-5PK |
— | ||
|
23
|
23
84625-61A00-5PK
JOINT,BACK DR WDO MLDG UPR
<-84625-61AA0-5PK |
84625-61A00-5PK |
— | ||
|
24
|
24
84626-61A00-5PK JOINT,BACK DR WDO MLDG LWR<-84626-61AA0-5PK |
84626-61A00-5PK |
US $2.88 |
||
|
25
|
25
84627-61A00-5PK TRIM,BACK DOOR WINDOW OPNG |
84627-61A00-5PK |
US $124.64 |
||
|
26
|
26
84681-61AA0-5PK
Weatherstrip, opening
|
84681-61AA0-5PK |
— | ||
|
27
|
27
83911-60X50-000
カバー,ドアシーリング,600X1200
CUT AS REQUIRED,<-83913-61A50 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
27
|
27
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED,<-83913-61A50 |
83911-60X52-000 |
US $6.06 |
||
|
28
|
28
83917-82010-000
カバー,ドアシーリング,アッパ
|
83917-82010-000 |
— | ||
| replacement | |||||
|
28
|
28
83917-82010-5PK CAP,BACK DR HOLE |
83917-82010-5PK |
US $1.60 |
||
