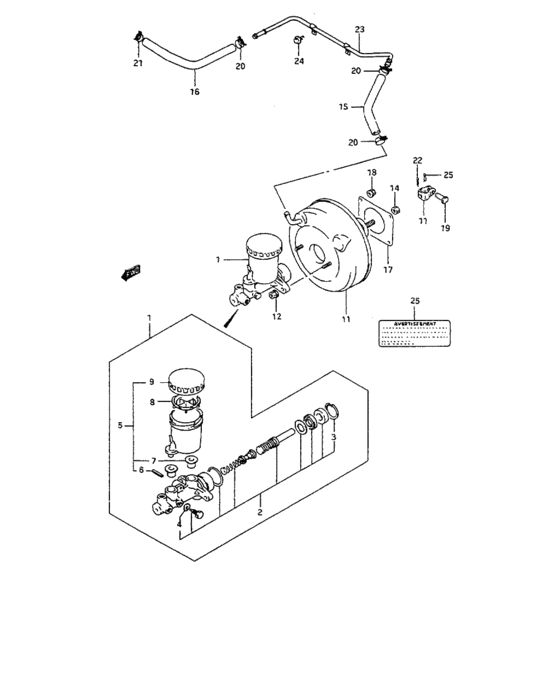

Bk master cyl (2DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-60A60-000 CYLINDER ASSY,BRAKE MASTER |
51100-60A60-000 |
US $316.48 |
||
|
2
|
2
51100-60850-000
PISTON SET,BRAKE MASTER
|
51100-60850-000 |
— | ||
|
3
|
3
51162-85520-000
サークリップ,ピストンストッパ
|
51162-85520-000 |
— | ||
|
4
|
4
51168-81220-000
リング,ストッパボルトシール
|
51168-81220-000 |
— | ||
|
5
|
5
51200-60A60-000
リザーバアッシ,マスタシリンダ
(W/WARNING) |
51200-60A60-000 |
— | ||
| replacement | |||||
|
5
|
5
51200-60A61-000 RESERVOIR ASSY,MASTER CYLINDER(W/WARNING) |
51200-60A61-000 |
US $136.90 |
||
|
6
|
6
09205-05016-000 PIN,SPRING(5X32)<-51194-85520 |
09205-05016-000 |
US $1.12 |
||
|
7
|
7
51197-85520-000 GROMMET,RESERVOIR CONNECTOR92 MODEL,93 MODEL |
51197-85520-000 |
US $2.72 |
||
|
8
|
8
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
9
|
9
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
10
|
10
51182-60A60-000
クレビス,シリンダプッシュロッド
|
51182-60A60-000 |
— | ||
| replacement | |||||
|
10
|
10
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
11
|
11
51300-60A60-000
BOOSTER ASSY,BRAKE MASTER
|
51300-60A60-000 |
— | ||
|
12
|
12
09159-08075-000 NUT<-51313-60B00 |
09159-08075-000 |
US $0.91 |
||
|
13
|
13
09140-10019-000 NUT<-51349-82020 |
09140-10019-000 |
US $9.20 |
||
|
14
|
14
51020-56B40-000
HOSE,BRAKE VACUUM
|
51020-56B40-000 |
— | ||
|
15
|
15
51831-60A01-000 HOSE,BRAKE VACUUM INTAKE2 VALVE |
51831-60A01-000 |
US $12.62 |
||
|
15
|
15
51831-57B10-000
Hose,brake vacuum intake
4 VALVE |
51831-57B10-000 |
— | ||
|
16
|
16
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
17
|
17
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
18
|
18
09200-10018-000
ピン
|
09200-10018-000 |
— | ||
|
18
|
18
09200-10021-000 PINUSE WITH REF.NO.25 |
09200-10021-000 |
US $1.28 |
||
|
19
|
19
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
20
|
20
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
21
|
21
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
21
|
21
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
22
|
22
51380-60A11-000 PIPE,BRAKE VACUUM |
51380-60A11-000 |
US $41.95 |
||
|
23
|
23
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
23
|
23
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
24
|
24
09385-10006-000 PIN,SNAPPin USE WITH REF.NO.19-2 |
09385-10006-000 |
from US $1.60 |
||
|
25
|
25
86935-80300-000
EMBLEM,BRAKE FLUID
|
86935-80300-000 |
— | ||
