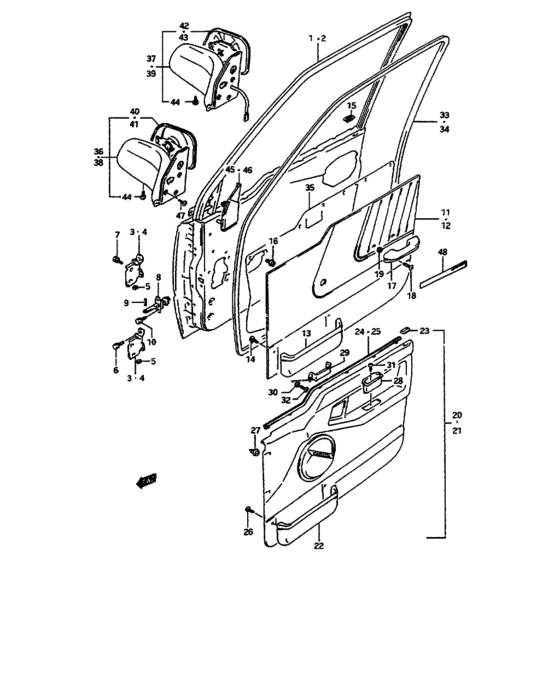

Fr dr panel (2DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-66AB0-000
Panel assy, front door rh
|
68001-66AB0-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-66831-000 PANEL ASSY,FRONT DOOR,R |
68001-66831-000 |
US $1,764 |
||
|
2
|
2
68002-66AB0-000
Panel assy, front door lh
|
68002-66AB0-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-66831-000 PANEL ASSY,FRONT DOOR,L |
68002-66831-000 |
US $1,764 |
||
|
3
|
3
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH UPPER RH AND LOWER LH,<-69310-60AA1 |
69310-60A10-000 |
from US $36.32 |
||
|
4
|
4
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH UPPER LH AND LOWER RH |
69340-60A11-000 |
from US $43.56 |
||
|
5
|
5
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
5
|
5
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
6
|
6
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
6
|
6
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
7
|
7
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
8
|
8
81810-60AA0-000
Stop, front door open
|
81810-60AA0-000 |
— | ||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
11
|
11
83710-60A00-5FE
Trim, door rh
JA |
83710-60A00-5FE |
— | ||
| replacement | |||||
|
11
|
11
83710-60A10-5FE TRIM,FRONT DOOR,RJA |
83710-60A10-5FE |
from US $85.84 |
||
|
11
|
11
83710-60A10-5FE TRIM,FRONT DOOR,RJX |
83710-60A10-5FE |
from US $85.84 |
||
|
12
|
12
83730-60A00-5FE
Trim, door lh
JA |
83730-60A00-5FE |
— | ||
| replacement | |||||
|
12
|
12
83730-60A10-5FE TRIM,FRONT DOOR,LJA |
83730-60A10-5FE |
US $227.20 |
||
|
12
|
12
83730-60A10-5FE TRIM,FRONT DOOR,LJX |
83730-60A10-5FE |
US $227.20 |
||
|
13
|
13
83722-61A00-5ES
POCKET,DOOR TRIM
JX |
83722-61A00-5ES |
— | ||
|
14
|
14
03141-04123-000
Screw
JX |
03141-04123-000 |
— | ||
| replacement | |||||
|
14
|
14
03142-0412B-000 SCREWJX |
03142-0412B-000 |
from US $0.80 |
||
|
15
|
15
83795-60A00-5ES CAP,INSIDE LOCK KNOBJA, JX |
83795-60A00-5ES |
US $3.04 |
||
|
16
|
16
09409-08320-000 CLIPJA, JX |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
84450-82000-5ES ARMREST,FR DRJA, JX |
84450-82000-5ES |
US $57.01 |
||
|
18
|
18
03241-06253-000
スクリュ
JA, JX |
03241-06253-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0625A-000 SCREWJA, JX |
03241-0625A-000 |
from US $1.87 |
||
|
19
|
19
09148-06007-000 NUTJA, JX |
09148-06007-000 |
from US $0.86 |
||
|
20
|
20
83701-67A01-5FE
TRIM ASSY,FR DOOR,R
JLX, <-83701-67A00-5FE |
83701-67A01-5FE |
— | ||
|
21
|
21
83702-67A01-5FE
TRIM ASSY,FR DOOR,L
JLX, <-83702-67A00-5FE |
83702-67A01-5FE |
— | ||
|
22
|
22
83722-61A00-5ES
POCKET,DOOR TRIM
JLX |
83722-61A00-5ES |
— | ||
|
23
|
23
83723-61A00-5ES
CAP,INSIDE LOCK KNOB
(BLACK),LX |
83723-61A00-5ES |
— | ||
|
24
|
24
83721-61A00-000 WEATHERSTRIP,FR DR INR,RJLX |
83721-61A00-000 |
US $70.40 |
||
|
25
|
25
83741-61A00-000 WEATHERSTRIP,FR DR INR,LJLX |
83741-61A00-000 |
US $70.40 |
||
|
26
|
26
03141-04123-000
Screw
JLX |
03141-04123-000 |
— | ||
| replacement | |||||
|
26
|
26
03142-0412B-000 SCREWJLX |
03142-0412B-000 |
from US $0.80 |
||
|
27
|
27
09409-08320-000 CLIPJLX, <-83791-60A00 |
09409-08320-000 |
from US $1.15 |
||
|
28
|
28
84481-60A00-5ES CASE,DR INS PULL HANDLE(BLACK),JLX |
84481-60A00-5ES |
US $28.80 |
||
|
29
|
29
84482-60A01-000
BRACKET,DR INSIDE PULL HANDLE
JLX |
84482-60A01-000 |
— | ||
|
30
|
30
09148-06007-000 NUT92 MODEL,93 MODEL:JLX |
09148-06007-000 |
from US $0.86 |
||
|
31
|
31
03141-04123-000
Screw
JLX |
03141-04123-000 |
— | ||
| replacement | |||||
|
31
|
31
03142-0412B-000 SCREWJLX |
03142-0412B-000 |
from US $0.80 |
||
|
32
|
32
03541-06163-000
スクリュ
92 MODEL,93 MODEL:JLX |
03541-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
03541-0616A-000 SCREW92 MODEL,93 MODEL:JLX |
03541-0616A-000 |
from US $0.64 |
||
|
33
|
33
84641-65A01-000
ウェザストリップ,フロントドアオープニング,ライト
<-64641-60A00 |
84641-65A01-000 |
— | ||
| replacement | |||||
|
33
|
33
84641-65A02-000 WEATHERSTRIP,FR DR OPNG,R<-64641-60A00 |
84641-65A02-000 |
US $152 |
||
|
34
|
34
84651-65A01-000
ウェザストリップ,フロントドアオープニング,レフト
<-64651-60A00 |
84651-65A01-000 |
— | ||
| replacement | |||||
|
34
|
34
84651-65A02-000 WEATHERSTRIP,FR DR OPNG,L<-64651-60A00 |
84651-65A02-000 |
US $152 |
||
|
35
|
35
83911-60X50-000
カバー,ドアシーリング,600X1200
CUT AS REQUIRED,<-83911-60A00 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
35
|
35
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED,<-83911-60A00 |
83911-60X52-000 |
US $6.06 |
||
|
36
|
36
84701-65A01-5PK
Mirror assy,rear view,r
MANUAL, PAINT TO MATCH |
84701-65A01-5PK |
— | ||
|
37
|
37
84701-65A10-5PK
Mirror, out rr view rh
REMOCON, PAINT TO MATCH |
84701-65A10-5PK |
— | ||
| replacement | |||||
|
37
|
37
84701-65A11-5PK
MIRROR ASSY,RR VIEW,R
REMOCON, PAINT TO MATCH |
84701-65A11-5PK |
— | ||
|
38
|
38
84702-65A01-5PK MIRROR ASSY,RR VIEW,LMANUAL, PAINT TO MATCH |
84702-65A01-5PK |
US $144.26 |
||
|
39
|
39
84702-65A11-5PK
MIRROR ASSY,RR VIEW,L
REMOCON, PAINT TO MATCH |
84702-65A11-5PK |
— | ||
|
40
|
40
84720-65A00-000
MIRROR S/ASSY,OUT RR VIEW,R
MANUAL |
84720-65A00-000 |
— | ||
|
41
|
41
84760-65A00-000
Mirror sub assy,out rr view,l
MANUAL |
84760-65A00-000 |
— | ||
|
42
|
42
84720-65A10-000
Mirror sub assy,out rr view,r
REMOCON |
84720-65A10-000 |
— | ||
|
43
|
43
84760-65A10-000
Mirror sub assy,out rr view,l
REMOCON |
84760-65A10-000 |
— | ||
|
44
|
44
03511-04103-000
Tapping screw
|
03511-04103-000 |
— | ||
| replacement | |||||
|
44
|
44
03511-0410A-000 SCREW |
03511-0410A-000 |
from US $2.40 |
||
|
45
|
45
84750-61A00-5PK GARNISH,SASH BRKT INR,R |
84750-61A00-5PK |
US $24 |
||
|
46
|
46
84790-61A00-5PK GARNISH,SASH BRKT INR,L |
84790-61A00-5PK |
US $22.40 |
||
|
47
|
47
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
47
|
47
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
47
|
47
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
48
|
48
79114-60A01-000
Label, mpv warning
92 MODEL,93 MODEL,94 MODEL:ENGLISH |
79114-60A01-000 |
— | ||
| replacement | |||||
|
48
|
48
79114-83001-000
Label, mpv warning
92 MODEL,93 MODEL,94 MODEL:ENGLISH |
79114-83001-000 |
— | ||
|
48
|
48
79114-83061-000
Label, mpv warning
92 MODEL,93 MODEL,94 MODEL:FRENCH |
79114-83061-000 |
— | ||
