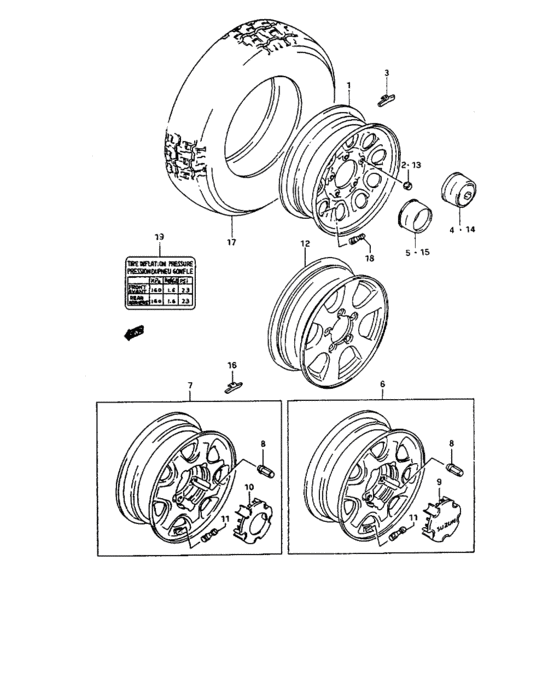

Road wheel (2DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43210-60A20-27S WHEEL(15X5 1/2JJ)JA |
43210-60A20-27S |
US $175.54 |
||
|
1
|
1
43200-60831-000
WHEEL SET,AL(15X5 1/2JJ)
94 MODEL:JX |
43200-60831-000 |
— | ||
|
2
|
2
09159-12024-000 NUTJA,94 MODEL:JX |
09159-12024-000 |
from US $2.40 |
||
|
3
|
3
43231-78130-000 WEIGHT,WHEEL BALANCE 10GW/STEEL WHEEL |
43231-78130-000 |
US $3.02 |
||
| replacement | |||||
|
3
|
3
43222-73H00-000 WEIGHT,WHEEL BALANCE 10GW/STEEL WHEEL |
43222-73H00-000 |
US $2.72 |
||
|
3
|
3
43232-78130-000 WEIGHT,WHEEL BALANCE 20GW/STEEL WHEEL |
43232-78130-000 |
US $3.35 |
||
| replacement | |||||
|
3
|
3
43224-73H00-000 WEIGHT,WHEEL BALANCE 20GW/STEEL WHEEL |
43224-73H00-000 |
US $3.02 |
||
|
3
|
3
43221-60C50-000 BALANCE WEIGHT,WHEEL 30GW/STEEL WHEEL,<-43233-78130 |
43221-60C50-000 |
US $2.80 |
||
|
3
|
3
43234-78130-000 WEIGHT,WHEEL BALANCE 40GW/STEEL WHEEL |
43234-78130-000 |
US $4.12 |
||
|
4
|
4
43252-60A00-000 CAP,WHEEL,CENTER |
43252-60A00-000 |
from US $23.02 |
||
|
5
|
5
43252-60A10-000 CAP,WHEEL HUB |
43252-60A10-000 |
from US $11.63 |
||
|
6
|
6
43200-60820-27S
Wheel set,al(15x5 1/2jj)silver
(SILVER),92 MODEL,93 MODEL:JX, JLX,94 MODEL:JLX |
43200-60820-27S |
— | ||
|
7
|
7
43200-60810-27S
WHEEL,AL(15X5 1/2JJ)
(SILVER),92 MODEL,93 MODEL:JX, JLX,94 MODEL:JLX |
43200-60810-27S |
— | ||
|
8
|
8
09159-12041-000 NUT92 MODEL,93 MODEL:JX, JLX,94 MODEL:JLX |
09159-12041-000 |
US $100.80 |
||
|
9
|
9
43252-60A30-27S
CAP,WHEEL CENTER,ALUMI
92 MODEL,93 MODEL:JX, JLX(REAR),94 MODEL:JLX(REAR) |
43252-60A30-27S |
— | ||
|
10
|
10
43252-60A40-27S
CAP,WHEEL HUB,ALUMI
92 MODEL,93 MODEL:JX, JLX(FRONT),94 MODEL:JLX(FRONT) |
43252-60A40-27S |
— | ||
|
11
|
11
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim 92 MODEL,93 MODEL:JX, JLX,94 MODEL:JLX |
43130-78030-000 |
US $12.50 |
||
|
12
|
12
43210-60AF0-27S
Wheel
95 MODEL:JX, JLX |
43210-60AF0-27S |
— | ||
| replacement | |||||
|
12
|
12
99980-25020-000
New Genuine Part
95 MODEL:JX, JLX |
99980-25020-000 |
— | ||
|
13
|
13
43281-60A00-000
NUT,WHEEL
95 MODEL:JX, JLX |
43281-60A00-000 |
— | ||
|
14
|
14
43252-60A00-000 CAP,WHEEL,CENTER95 MODEL:JX, JLX |
43252-60A00-000 |
from US $23.02 |
||
|
15
|
15
43252-60A10-000 CAP,WHEEL HUB95 MODEL:JX, JLX |
43252-60A10-000 |
from US $11.63 |
||
|
16
|
16
43232-60A30-000 WEIGHT,WHEEL BALANCE 10GW/ALUMI WHEEL |
43232-60A30-000 |
US $4.45 |
||
|
16
|
16
43234-60A30-000 WEIGHT,WHEEL BALANCE 20GW/ALUMI WHEEL |
43234-60A30-000 |
US $5.81 |
||
|
16
|
16
43221-60E50-000 WEIGHT,WHEEL BALANCE 30GW/ALUMI WHEEL |
43221-60E50-000 |
US $6.15 |
||
|
16
|
16
43238-60A30-000 WEIGHT,WHEEL BALANCE 40GW/ALUMI WHEEL |
43238-60A30-000 |
US $5.63 |
||
|
17
|
17
43110-60AH1-000
Tire
92 MODEL,93 MODEL:JA, JX |
43110-60AH1-000 |
— | ||
| replacement | |||||
|
17
|
17
43110-56B20-000
Tire
92 MODEL,93 MODEL:JA, JX |
43110-56B20-000 |
— | ||
|
17
|
17
43110-60AJ1-000
Tire
(WHITE LETTER),92 MODEL,93 MODEL:JLX |
43110-60AJ1-000 |
— | ||
| replacement | |||||
|
17
|
17
43110-60A80-000
Tire, p205/75r15
(WHITE LETTER),92 MODEL,93 MODEL:JLX |
43110-60A80-000 |
— | ||
|
17
|
17
43110-56BL0-000
Tire
94 MODEL,95 MODEL:JA |
43110-56BL0-000 |
— | ||
|
17
|
17
43110-56BM0-000
Tire
(WHITE LETTER),94 MODEL,95 MODEL:JX, JLX |
43110-56BM0-000 |
— | ||
|
18
|
18
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
19
|
19
79161-60A10-000
PLACARD,TIRE INFORMATION
|
79161-60A10-000 |
— | ||
