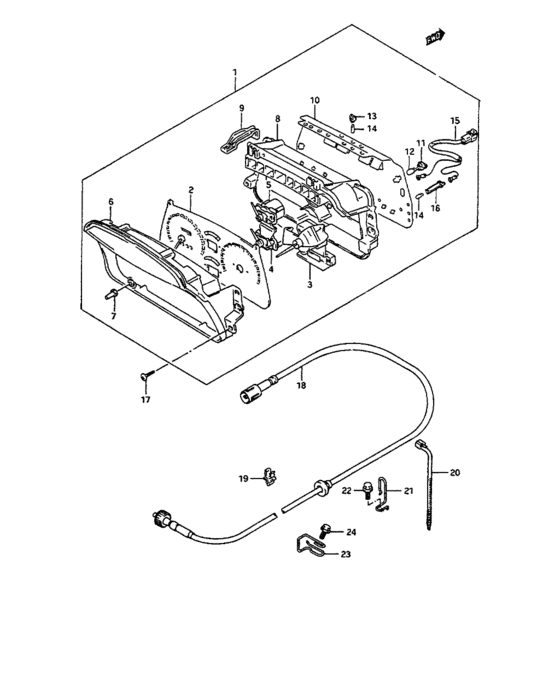

Speedometer (4DR:92, 93 MODEL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-73E21-000
Speedometer assy
AT |
34100-73E21-000 |
— | ||
|
2
|
2
34120-73E21-000
Body assy, speedometer
AT |
34120-73E21-000 |
— | ||
|
3
|
3
34220-66A00-000
BODY ASSY,TACHOMETER
|
34220-66A00-000 |
— | ||
|
4
|
4
34320-60A10-000
BODY ASSY,FUEL METER
|
34320-60A10-000 |
— | ||
|
5
|
5
34420-60A10-000 BODY ASSY,TEMP METER |
34420-60A10-000 |
US $76.54 |
||
|
6
|
6
34113-60A10-000
GLASS,FR
|
34113-60A10-000 |
— | ||
|
7
|
7
34145-80200-000 COVER,TRIP METER NOB |
34145-80200-000 |
US $2.24 |
||
|
8
|
8
34151-67A70-000
Case, meter
AT |
34151-67A70-000 |
— | ||
|
9
|
9
34950-60A10-000
BRACKET,METER
|
34950-60A10-000 |
— | ||
|
10
|
10
34152-67A50-000
PLATE,PRINTED
AT |
34152-67A50-000 |
— | ||
|
11
|
11
34172-50E10-000 SOCKET<-34172-82060 |
34172-50E10-000 |
US $1.60 |
||
|
12
|
12
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
13
|
13
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
14
|
14
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
15
|
15
34165-64A50-000
WIRE
AT |
34165-64A50-000 |
— | ||
|
16
|
16
34172-66A00-000
SOCKET
AT |
34172-66A00-000 |
— | ||
|
17
|
17
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
18
|
18
34910-60A41-000
CABLE ASSY,SPEEDOMETER
AT |
34910-60A41-000 |
— | ||
|
19
|
19
09403-07306-000 CLAMPClamp |
09403-07306-000 |
from US $2.56 |
||
|
20
|
20
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
20
|
20
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
23
|
23
34926-57B20-000
CLAMP,SPDOM CABLE
AT |
34926-57B20-000 |
— | ||
|
24
|
24
01550-06103-000
Bolt, front
AT |
01550-06103-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0610B-000 BoltBolt AT |
01550-0610B-000 |
from US $0.80 |
||
|
24
|
24
01550-0610A-000 BOLTAT |
01550-0610A-000 |
from US $0.80 |
||
