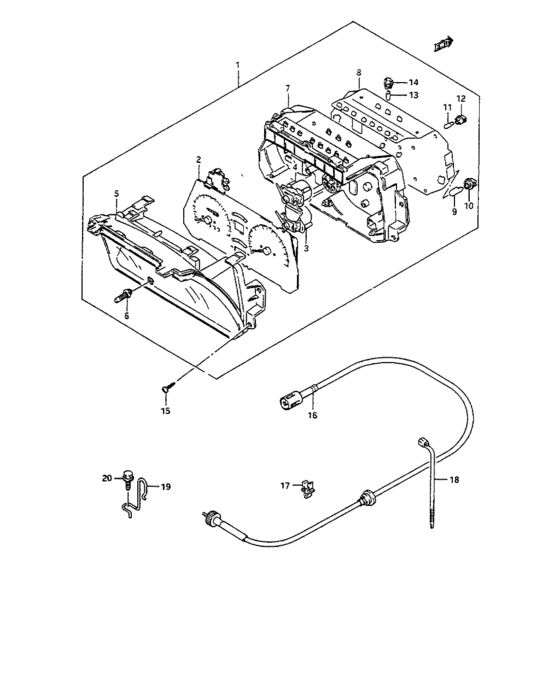

Speedometer (2DR:W/TACHOMETER:92, 93 MODEL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-66AD1-000
Speedometer assy
JX |
34100-66AD1-000 |
— | ||
|
1
|
1
34100-62AE1-000
Speedometer assy
JLX |
34100-62AE1-000 |
— | ||
|
2
|
2
34120-62AE1-000
Body, speed & tachometer
|
34120-62AE1-000 |
— | ||
|
3
|
3
34320-60AD0-000
Body assy, fuel meter
|
34320-60AD0-000 |
— | ||
|
4
|
4
34420-60AD0-000
Body assy, temp meter
|
34420-60AD0-000 |
— | ||
|
5
|
5
34111-60A00-000
Glass, front
|
34111-60A00-000 |
— | ||
|
6
|
6
34145-60AC0-000
Cover, trip knob
|
34145-60AC0-000 |
— | ||
|
7
|
7
34151-61AD0-000
Case, meter
JX |
34151-61AD0-000 |
— | ||
|
7
|
7
34151-62AE0-000
Case, meter
JLX |
34151-62AE0-000 |
— | ||
|
8
|
8
34152-60AD0-000
Plate, printed
JX |
34152-60AD0-000 |
— | ||
|
8
|
8
34152-61AC0-000
Plate, printed
JLX |
34152-61AC0-000 |
— | ||
|
9
|
9
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
10
|
10
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
11
|
11
09471-12133-000 BULB(12V3W) |
09471-12133-000 |
US $60.70 |
||
|
12
|
12
34175-50A20-000 SOCKET |
34175-50A20-000 |
US $3.39 |
||
|
13
|
13
09471-12055-000 BULB(14V1.4W,T5)JX |
09471-12055-000 |
from US $2.40 |
||
|
14
|
14
34175-78900-000 SOCKETJX |
34175-78900-000 |
US $1.52 |
||
|
15
|
15
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
16
|
16
34910-60A41-000
CABLE ASSY,SPEEDOMETER
<-34910-62A10 |
34910-60A41-000 |
— | ||
|
17
|
17
09403-07306-000 CLAMPClamp |
09403-07306-000 |
from US $2.56 |
||
|
18
|
18
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
19
|
19
34926-60A00-000 CLAMP,SPEEDOMETER CABLE,NO.3 |
34926-60A00-000 |
US $9.12 |
||
|
20
|
20
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
20
|
20
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
