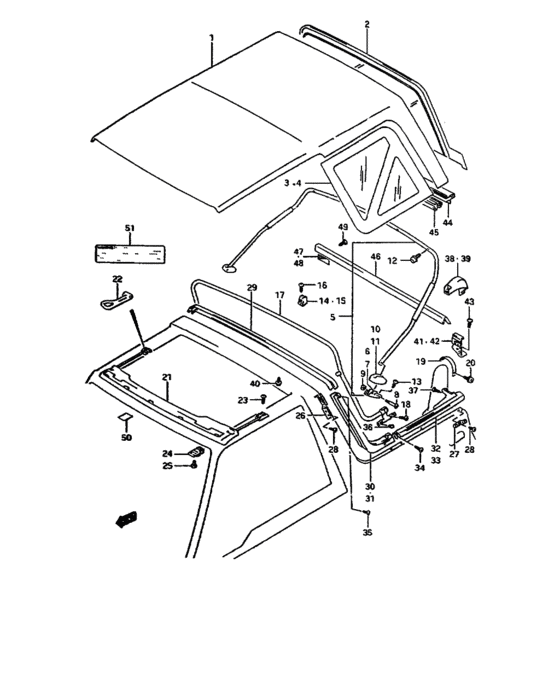

Deck top (95 MODEL:2DR:C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-62A00-40U
Top assy, deck
|
78310-62A00-40U |
— | ||
|
1
|
1
78310-62A00-5ME
Top assy, deck
|
78310-62A00-5ME |
— | ||
|
2
|
2
78320-62A00-40U
Window, canvas rear
|
78320-62A00-40U |
— | ||
|
2
|
2
78320-62A00-5ME
Window, canvas rear
|
78320-62A00-5ME |
— | ||
|
3
|
3
78330-62A00-40U
Window, side rh
|
78330-62A00-40U |
— | ||
|
3
|
3
78330-62A00-5ME
Window, side rh
|
78330-62A00-5ME |
— | ||
|
4
|
4
78340-62A00-40U
Window, side lh
|
78340-62A00-40U |
— | ||
|
4
|
4
78340-62A00-5ME
Window, side lh
|
78340-62A00-5ME |
— | ||
|
5
|
5
78410-62A00-000
Frame assy, topbow rr
|
78410-62A00-000 |
— | ||
|
6
|
6
78442-60A02-000 BRACKET,TOPBOW,R |
78442-60A02-000 |
US $16.80 |
||
|
7
|
7
78452-60A02-000 BRACKET,TOPBOW,L |
78452-60A02-000 |
US $16.80 |
||
|
8
|
8
78444-60A01-000 SCREW,TOPBOW |
78444-60A01-000 |
US $1.60 |
||
|
9
|
9
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
9
|
9
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
10
|
10
78443-60A01-000 COVER,TOPBOW BRACKET,R |
78443-60A01-000 |
US $9.44 |
||
|
11
|
11
78453-60A01-000 COVER,TOPBOW BRACKET,L |
78453-60A01-000 |
US $9.44 |
||
|
12
|
12
09410-00074-000 MALE |
09410-00074-000 |
US $34.20 |
||
|
13
|
13
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
14
|
14
78471-60A00-000 STOPPER,TOPBOW RR-3P,R |
78471-60A00-000 |
US $16.80 |
||
|
15
|
15
78472-60A00-000 STOPPER,TOPBOW RR-3P,L |
78472-60A00-000 |
US $16.80 |
||
|
16
|
16
03141-05203-000
スクリュ
|
03141-05203-000 |
— | ||
| replacements | |||||
|
16
|
16
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
16
|
16
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
17
|
17
78420-62A00-000
Frame assy, topbow ctr
|
78420-62A00-000 |
— | ||
|
18
|
18
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
18
|
18
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
19
|
19
78553-62A00-000
Band, topbow ctr
|
78553-62A00-000 |
— | ||
|
20
|
20
09410-00074-000 MALE |
09410-00074-000 |
US $34.20 |
||
|
21
|
21
78510-62A00-000
Frame, topbow fr
|
78510-62A00-000 |
— | ||
|
22
|
22
78518-60A01-000 ROD,TENSION |
78518-60A01-000 |
US $16.80 |
||
|
23
|
23
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
24
|
24
78520-60A00-000
ロック,フロントフレーム
|
78520-60A00-000 |
— | ||
| replacement | |||||
|
24
|
24
78520-60A02-000 LOCK,FR FRAME |
78520-60A02-000 |
US $50.40 |
||
|
25
|
25
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
26
|
26
78567-62A00-000
Bracket, garnish upper
|
78567-62A00-000 |
— | ||
|
27
|
27
78565-62A00-000
Bracket, garnish rr
|
78565-62A00-000 |
— | ||
|
28
|
28
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
28
|
28
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
28
|
28
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
29
|
29
78531-62A00-000
Garnish, joint
|
78531-62A00-000 |
— | ||
|
30
|
30
78532-62A00-000
Garnish, pillar lh
|
78532-62A00-000 |
— | ||
|
31
|
31
78542-62A00-000
Garnish, pillar rh
|
78542-62A00-000 |
— | ||
|
32
|
32
78533-62A00-000
Garnish, qtr lh
|
78533-62A00-000 |
— | ||
|
33
|
33
78543-62A00-000
Garnish, qtr rh
|
78543-62A00-000 |
— | ||
|
34
|
34
03121-04163-000
スクリュ
|
03121-04163-000 |
— | ||
| replacement | |||||
|
34
|
34
03121-0416A-000 SCREW |
03121-0416A-000 |
US $7.70 |
||
|
35
|
35
03521-04123-000
スクリュ
|
03521-04123-000 |
— | ||
| replacement | |||||
|
35
|
35
03521-0412A-000 SCREW |
03521-0412A-000 |
US $0.80 |
||
|
36
|
36
09148-04035-000
Nut, garnish
|
09148-04035-000 |
— | ||
|
37
|
37
09409-04304-000 CLIP |
09409-04304-000 |
US $1.44 |
||
|
38
|
38
78573-62A00-000
Weatherstrip, garnish rh
|
78573-62A00-000 |
— | ||
|
39
|
39
78574-62A00-000
Weatherstrip, garnish lh
|
78574-62A00-000 |
— | ||
|
40
|
40
09410-00074-000 MALE |
09410-00074-000 |
US $34.20 |
||
|
41
|
41
78580-62A00-000
Bracket, rr window lower rh
|
78580-62A00-000 |
— | ||
| replacement | |||||
|
41
|
41
78580-63A00-000
Bracket, rr window lower rh
|
78580-63A00-000 |
— | ||
|
42
|
42
78590-62A00-000
Bracket, rr window lower lh
|
78590-62A00-000 |
— | ||
| replacement | |||||
|
42
|
42
78590-63A00-000
Bracket, rr window lower lh
|
78590-63A00-000 |
— | ||
|
43
|
43
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
43
|
43
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
44
|
44
78570-62A00-000
Stay, rr window lower
|
78570-62A00-000 |
— | ||
|
45
|
45
78575-62A00-000
Weatherstrip, rr gate upper
|
78575-62A00-000 |
— | ||
| replacement | |||||
|
45
|
45
78570-62A00-000
Stay, rr window lower
|
78570-62A00-000 |
— | ||
|
46
|
46
78561-62A00-000
Garnish, rr gate fillar
|
78561-62A00-000 |
— | ||
|
47
|
47
78473-62A00-000
Fastener, rr gate fillar
|
78473-62A00-000 |
— | ||
|
48
|
48
78473-62A00-000
Fastener, rr gate fillar
|
78473-62A00-000 |
— | ||
|
49
|
49
03142-04123-000
スクリュ
|
03142-04123-000 |
— | ||
| replacement | |||||
|
49
|
49
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
50
|
50
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole (140X190),CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
51
|
51
79114-83052-000
Label,canvas top warning
ENGLISH |
79114-83052-000 |
— | ||
|
51
|
51
79114-60A11-000
Label, canvastop warning
FRENCH |
79114-60A11-000 |
— | ||
