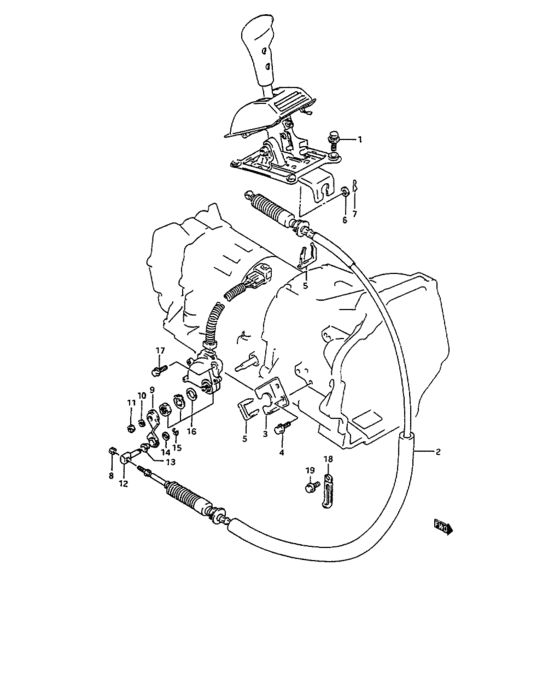

Gear shift control (AT:4DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08118-000 BOLT(8X20) |
09118-08118-000 |
US $12.50 |
||
|
2
|
2
28210-57B00-000
ケーブルアッシ,セレクト
|
28210-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
28210-77EA0-000 CABLE ASSY,SELECT |
28210-77EA0-000 |
from US $61.27 |
||
|
3
|
3
28221-61A00-000
BRACKET,SELECT CABLE
|
28221-61A00-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.72 |
||
|
6
|
6
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
6
|
6
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
09385-08004-000 PIN,SNAP |
09385-08004-000 |
from US $1.28 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
28231-57B00-000
レバー,マニュアルセレクト
|
28231-57B00-000 |
— | ||
| replacement | |||||
|
9
|
9
28231-57B01-000 LEVER,MANUAL SLT |
28231-57B01-000 |
US $8.72 |
||
|
10
|
10
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
11
|
11
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
12
|
12
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
US $12.32 |
||
|
13
|
13
09305-08012-000 BUSH |
09305-08012-000 |
US $1.28 |
||
|
14
|
14
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
14
|
14
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
14
|
14
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
15
|
15
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
15
|
15
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
15
|
15
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
16
|
16
24731-57B00-000
SWITCH ASSY,SHIFT
|
24731-57B00-000 |
— | ||
|
17
|
17
29993-57B00-000 BOLT,SHIFT SW |
29993-57B00-000 |
US $7.80 |
||
