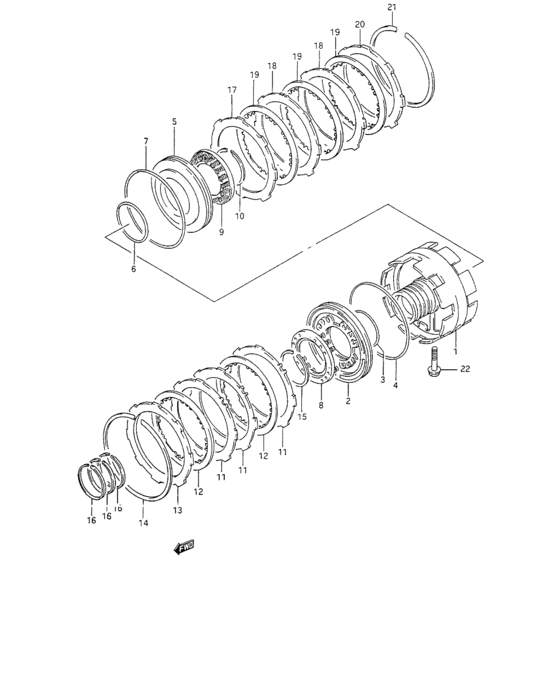

At center support (AT:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26931-57B00-000
Support, center
|
26931-57B00-000 |
— | ||
| replacement | |||||
|
1
|
1
26900-57B00-000
BRAKE ASSY,DRIVE&2ND
|
26900-57B00-000 |
— | ||
|
2
|
2
26921-57B00-000
Piston, b1 brake
|
26921-57B00-000 |
— | ||
|
3
|
3
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
3
|
3
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
4
|
4
29743-57B00-000
O ring
|
29743-57B00-000 |
— | ||
| replacement | |||||
|
4
|
4
29743-65DT0-000 O-RING SET,B1 BRAKE PISTON |
29743-65DT0-000 |
US $24.66 |
||
|
5
|
5
26922-57B00-000
Piston, b2 brake
|
26922-57B00-000 |
— | ||
|
6
|
6
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
6
|
6
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
7
|
7
29742-57B00-000
O ring, outer
|
29742-57B00-000 |
— | ||
| replacement | |||||
|
7
|
7
29742-65DT0-000 O-RING SET,B2 BRAKE PISTON |
29742-65DT0-000 |
US $24.66 |
||
|
8
|
8
26941-57B00-000
Spring, piston return
|
26941-57B00-000 |
— | ||
|
9
|
9
26942-57B00-000
Spring, piston return
|
26942-57B00-000 |
— | ||
|
10
|
10
28949-57B00-000 RING,SNAP B1 BRAKE |
28949-57B00-000 |
US $9.60 |
||
|
11
|
11
26912-57B00-000
Plate, b1 brake
|
26912-57B00-000 |
— | ||
| replacement | |||||
|
11
|
11
26911-57BT0-000 DISC SET,B1 BRAKE |
26911-57BT0-000 |
US $338.56 |
||
|
12
|
12
26911-57B00-000
Disk, b1 brake
|
26911-57B00-000 |
— | ||
|
13
|
13
26916-57B00-000
Plate, clutch backing
|
26916-57B00-000 |
— | ||
|
14
|
14
26692-57B10-000 RING,DIRECT CLUTCH |
26692-57B10-000 |
US $14.06 |
||
|
14
|
14
26692-57B01-000 RING,RETAINING BACK PLATEM.NO.2F 60546~ |
26692-57B01-000 |
US $13.98 |
||
|
15
|
15
28949-57B00-000 RING,SNAP B1 BRAKE |
28949-57B00-000 |
US $9.60 |
||
|
16
|
16
29797-57B00-000
リング,シール,リヤ
|
29797-57B00-000 |
— | ||
| replacement | |||||
|
16
|
16
29797-65D30-000 RING,SEAL B1 BRAKE FR |
29797-65D30-000 |
US $19.50 |
||
|
17
|
17
26913-57B00-000
Plate, b2 brake
|
26913-57B00-000 |
— | ||
| replacement | |||||
|
17
|
17
26913-57BT0-000 DISC SET,B2 BRAKE |
26913-57BT0-000 |
US $368 |
||
|
18
|
18
26914-57B00-000
Plate, b2 brake
|
26914-57B00-000 |
— | ||
|
19
|
19
26915-57B00-000
Disk, b2 brake
|
26915-57B00-000 |
— | ||
|
20
|
20
24112-57B00-000
Plate, clutch backing
|
24112-57B00-000 |
— | ||
|
21
|
21
26692-57B10-000 RING,DIRECT CLUTCH |
26692-57B10-000 |
US $14.06 |
||
|
21
|
21
26692-57B01-000 RING,RETAINING BACK PLATEM.NO.2F 60546~ |
26692-57B01-000 |
US $13.98 |
||
|
22
|
22
29997-57B00-000 BOLT,CTR SPRT T/M CASE |
29997-57B00-000 |
US $8.21 |
||
