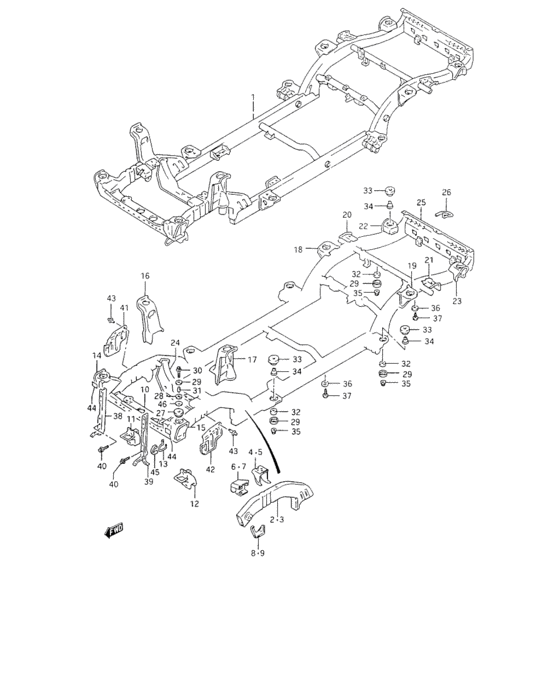

Chassis frame (V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-57B30-000
Frame assy
2WD |
57000-57B30-000 |
— | ||
|
2
|
2
57110-56B01-000
Member, side frame front rh
|
57110-56B01-000 |
— | ||
| replacement | |||||
|
2
|
2
57110-56B21-000
MEMBER,SIDE FRAME FR,R
|
57110-56B21-000 |
— | ||
|
3
|
3
57160-56B00-000
Member, side frame front lh
|
57160-56B00-000 |
— | ||
| replacement | |||||
|
3
|
3
57160-56B20-000
MEMBER,SIDE FRAME FR,L
|
57160-56B20-000 |
— | ||
|
4
|
4
57511-60A00-000
BRACKET,ENG MTG,R
|
57511-60A00-000 |
— | ||
|
5
|
5
57521-60A00-000
BRACKET,ENG MTG,L
|
57521-60A00-000 |
— | ||
|
6
|
6
57620-60A00-000
BRACKET,FR DIFF MTG,R
|
57620-60A00-000 |
— | ||
|
7
|
7
57630-60A00-000
BRACKET,FR DIFF MTG,L
|
57630-60A00-000 |
— | ||
|
8
|
8
57411-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,RRH |
57411-56B00-000 |
US $13.51 |
||
|
9
|
9
57412-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,LLH |
57412-56B00-000 |
US $13.51 |
||
|
10
|
10
57210-56B00-000
Crossmember, 1st
|
57210-56B00-000 |
— | ||
| replacement | |||||
|
10
|
10
57210-56B20-000 CROSSMEMBER,1ST |
57210-56B20-000 |
US $390.08 |
||
|
11
|
11
57710-56B00-000
Hanger, fr suspension arm rh
|
57710-56B00-000 |
— | ||
| replacement | |||||
|
11
|
11
57710-56B20-000
HANGER,FR SPNSN ARM,R
|
57710-56B20-000 |
— | ||
|
12
|
12
57720-56B00-000
Hanger, fr suspension arm lh
|
57720-56B00-000 |
— | ||
| replacement | |||||
|
12
|
12
57720-56B20-000
HANGER,FR SPNSN ARM,L
|
57720-56B20-000 |
— | ||
|
13
|
13
57213-56B00-000
HOOK,FR TOWING
|
57213-56B00-000 |
— | ||
|
14
|
14
57310-56B00-000 BRACKET,1ST MOUNTING,R |
57310-56B00-000 |
US $128.80 |
||
|
15
|
15
57320-56B00-000
BRACKET,1ST MOUNTING,L
|
57320-56B00-000 |
— | ||
|
16
|
16
57730-56B10-000 BRACKET,FR STRUT,R |
57730-56B10-000 |
US $268.64 |
||
|
17
|
17
57740-56B00-000 BRACKET,FR STRUT,L |
57740-56B00-000 |
US $323.84 |
||
|
18
|
18
57810-77E00-000 BRACKET,RR COIL SPRING,R |
57810-77E00-000 |
US $69.18 |
||
|
19
|
19
57820-77E00-000
BRACKET,RR COIL SPRING,L
|
57820-77E00-000 |
— | ||
|
20
|
20
57831-56B00-000 BRACKET,RR SHOCK ABSORBER,R |
57831-56B00-000 |
US $23.18 |
||
|
21
|
21
57841-56B00-000 BRACKET,RR SHOCK ABSORBER,L |
57841-56B00-000 |
US $23.18 |
||
|
22
|
22
57371-56B00-000 BRACKET,4TH MOUNTING,R |
57371-56B00-000 |
US $34.96 |
||
|
23
|
23
57381-56B00-000
ブラケット,フォースマウンチング,レフト
92 MODEL,93 MODEL |
57381-56B00-000 |
— | ||
| replacement | |||||
|
23
|
23
57381-56B01-000 BRACKET,4TH MOUNTING,L92 MODEL,93 MODEL |
57381-56B01-000 |
US $34.96 |
||
|
23
|
23
57381-56B01-000 BRACKET,4TH MOUNTING,L94 MODEL,95 MODEL |
57381-56B01-000 |
US $34.96 |
||
|
24
|
24
57220-56B00-000
クロスメンバ,セカンド
|
57220-56B00-000 |
— | ||
| replacement | |||||
|
24
|
24
57220-56B01-000 CROSSMEMBER,2ND |
57220-56B01-000 |
US $281.52 |
||
|
25
|
25
57260-56B00-000
Crossmember, tail
|
57260-56B00-000 |
— | ||
| replacement | |||||
|
25
|
25
57260-56B02-000
CROSSMEMBER,TAIL
|
57260-56B02-000 |
— | ||
|
26
|
26
57264-56B00-000 HOOK,RR TOWING |
57264-56B00-000 |
US $26.86 |
||
|
27
|
27
71514-56B00-000 CUSHION,BODY FR MTG NO.1 |
71514-56B00-000 |
US $23.20 |
||
|
28
|
28
71515-60A00-000 CUSHION,BODY FR MTG NO.2 |
71515-60A00-000 |
US $8.83 |
||
|
29
|
29
71632-83010-000
ボトム,ボディマウンチング
|
71632-83010-000 |
— | ||
| replacement | |||||
|
29
|
29
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
30
|
30
01570-10853-000
Bolt
|
01570-10853-000 |
— | ||
| replacement | |||||
|
30
|
30
01570-1085C-000 Bolt |
01570-1085C-000 |
US $1.68 |
||
|
31
|
31
71516-60A00-000
カラー,ボディフロントマウンチング
|
71516-60A00-000 |
— | ||
| replacement | |||||
|
31
|
31
71516-60A01-000
COLLAR,BODY FR MOUNTING
|
71516-60A01-000 |
— | ||
|
31
|
31
71516-56B00-000
カラー,ボディフロントマウンチング
JS3TGeneralV N4100011~,JS3TD02V N4103244~ |
71516-56B00-000 |
— | ||
| replacement | |||||
|
31
|
31
71516-56B01-000 COLLAR,BODY FR MOUNTINGJS3TGeneralV N4100011~,JS3TD02V N4103244~ |
71516-56B01-000 |
US $14.08 |
||
|
32
|
32
71512-60A10-000 CUSHION,BODY MTG NO.2 |
71512-60A10-000 |
US $12.32 |
||
|
33
|
33
71511-56B00-000 CUSHION,BODY MTG NO.1 |
71511-56B00-000 |
US $23.20 |
||
|
34
|
34
71513-60A00-000 COLLAR,BODY MOUNTING |
71513-60A00-000 |
US $1.98 |
||
|
35
|
35
09159-10060-000 NUT |
09159-10060-000 |
from US $1.41 |
||
|
36
|
36
71521-56B00-000 PAD,BODY MOUNTING |
71521-56B00-000 |
US $6.54 |
||
|
37
|
37
09409-10302-5PK CLIP(BLACK)PRODUCT OF JAPAN |
09409-10302-5PK |
US $1.28 |
||
|
37
|
37
09409-10302-6MK
Clip, luggage floor
PRODUCT OF CANADA |
09409-10302-6MK |
— | ||
| replacement | |||||
|
37
|
37
09409-10302-55Y CLIP(GRAY)PRODUCT OF CANADA |
09409-10302-55Y |
US $17.30 |
||
|
38
|
38
71410-56B00-000 STAY,RADIATOR,R |
71410-56B00-000 |
US $40.11 |
||
|
39
|
39
71420-56B21-000 STAY,RADIATOR,L |
71420-56B21-000 |
US $46 |
||
|
40
|
40
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
40
|
40
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
40
|
40
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
41
|
41
72211-56B01-000 FLAP,FR FRAME SIDE,R |
72211-56B01-000 |
US $18 |
||
|
42
|
42
72221-56B00-000
Flap,front frame side,l
|
72221-56B00-000 |
— | ||
|
43
|
43
09409-06318-000 CLIP |
09409-06318-000 |
US $12.90 |
||
|
44
|
44
71481-56B00-000 PROTECTOR,FRONT BUMPER MEMBER |
71481-56B00-000 |
US $3.02 |
||
|
45
|
45
71491-56B00-000 PROTECTOR,FRONT TOWING HOOKPRODUCT OF JAPAN |
71491-56B00-000 |
US $7.80 |
||
|
46
|
46
71517-56B01-000
スペーサ,ボディフロントマウンチング
JS3TGeneralV N4100011~,JS3TD02V N4103244~ |
71517-56B01-000 |
— | ||
| replacement | |||||
|
46
|
46
71517-56B02-000 SPACER,BODY FRONT MTGJS3TGeneralV N4100011~,JS3TD02V N4103244~ |
71517-56B02-000 |
US $2.29 |
||
